Description

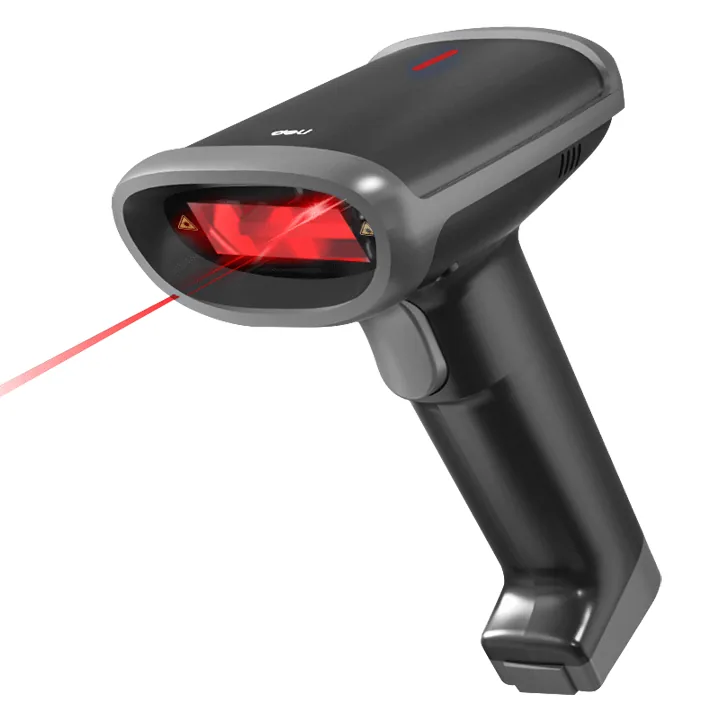

The Deli ES226 is a wired handheld barcode scanner with a USB interface, CMOS scanning technology and 1D and 2D decoding. It scans screen and paper media, is classified as handheld, and has plug and play installation.
- CMOS scanning technology for 1D and 2D barcode decoding
- Screen and paper scanning media
- Identify read information accuracy: 1D ≥4.7 mil, 2D ≥10 mil
- Decoding capability: 22 types of 1D codes and 3 types of 2D codes
- Scanning depth: 50-160 mm
- Motion tolerance: 90 cm/s
- USB interface with wired connector, indicator LEDs and buzzer reminder
Scanning and decoding
CMOS scanning technology is specified for 1D and 2D barcode decoding. The decoding capability is 22 types of 1D codes and 3 types of 2D codes. Identify read information accuracy is stated as 1D ≥4.7 mil and 2D ≥10 mil, while the listed scanning media are screen and paper.
Connection and scanning details
The USB interface has a wired connector type. Scanning depth is 50-160 mm, and motion tolerance is 90 cm/s. The scan angle is vertical ±18° and horizontal ±15°. Plug and play installation is included in the product details.
Size and indicators
This handheld model measures 150 × 120 × 73 mm and has a net weight of 140 g. Indicator LEDs and a buzzer reminder are included. These details accompany the USB interface, wired connector type, and screen and paper scanning media.
