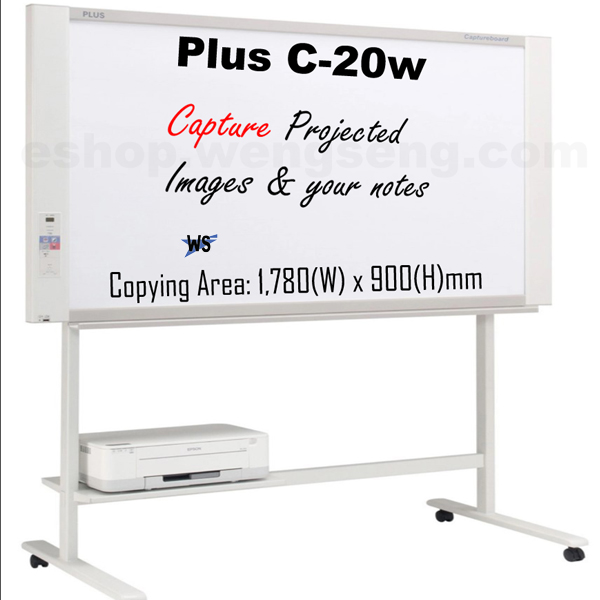

PLUS C-20W Electronic Color Copyboard with Capture function
RM10,400.00
“Capture” the image projected on the screen along with all of the notes and comments written on the screen into a single file on you computer! The new C-20 series of PLUS CaptureBoards offer industry leading features for saving and sharing the notes from your meetings. Network and Smartphone integration!
Description
Model: PLUS C-20W Electronic Color Copyboard with Capture function
The PLUS CaptureBoard allows your meetings to be more dynamic, creative and productive. Meeting attendees can contribute ideas and provide input by adding their comments to the “writable” screen of the board. Combine and save all of the notes and comments along with the original projected image to your computer. Exact copies of the meeting notes can be easily stored or distributed as printed copies or via email.
Specifications:
| Form | Installation Method | Wall Mount or Floor Stand | |
| External Dimensions (Without Marker Tray) |
W78 × D3.5 × H39.4 inches (W1980 × D89 × H1000 mm) |
||
| Main Unit Weight | 55 lbs*3 (25 kg*3) | ||
| External Dimensions (With Floor Stand*1 ) |
W78 × D26.6 × H76.6*2 inches (W1980 × D675 × H1947*2 mm) |
||
| Floor Stand Weight | 23 lbs (10.5 kg) | ||
| Board | Panel Size | W70.9 × H35.8 inches (W1800mm × H910mm) | |
| Effective Reading Area | W70.1 × H35.4 inches (W1780mm × H900mm) | ||
| Number of Panels | 2 | ||
| Grid | N/A | ||
| Scrolling | Endless in one direction (Horizontal scrolling) | ||
| Drive Method | Motorized / Manual | ||
| Reading Method | CIS (Contact Image Sensor) | ||
| Reading Illumination Light Source |
RGB LED | ||
| Reading Resolution | Main scanning direction (vertical sheet surface) 50 dpi (1.92 dots/mm) Sub scanning direction (horizontal sheet surface) 50 dpi (1.82 dots/mm) |
||
| Reading Time | Approx. 21 s | ||
| Interface | USB Ports | 3 Ports: Type B for PC and Type A for Printer and for USB Flash Memory | |
| Saved Output | File Format | PDF, PNG, JPG | |
| Resolution | 3418 × 1728 dots (fixed) | ||
| External Memory | Type | USB Flash Memory | |
| Compatible FAT types | FAT 16, 32 | ||
| Interface | USB 1.1 or USB 2.0*4 | ||
| Network | LAN Port | RJ-45 (10Base-T/100Base-TX) | |
| Compatible Printers | InkJet Printers: HP PCL3e & PCL3 gui compatible (with some exceptions) | ||
| Printing | Printing Resolution | 300 dpi or equivalent | |
| No. Print Colors | 16 color (or 2 grayscale) | ||
| Printer Interface | Conforming to USB 2.0 standards | ||
| Add Functions | Clock | Used for the timestamp and for file dating properties (Includes backup battery for when there is a loss of power.) |
|
| PC Connection | Images can be acquired and device settings made via USB (using a browser) | ||
| Power Supply | AC Power Adapter | Input: AC100?240V/50?60 Hz, Max 0.75 A Output: DC 12 V, 3.0 A |
|
| PC Consumption | In standby: 3W, During operation: 12W (not including printer) | ||
| Usage Conditions |
Temperature | 10°C ~ 35°C | |
| Humidity | 30 ~ 85% (with no condensation) | ||
| Operating Environment |
OS | Microsoft Windows 2000 Professional (Service Pack 4 or Later) / Windows XP (Home Edition/Professional Edition (Service Pack 2 or Later) / Vista (32 bit) / Windows7 (32 bit / 64 bit) / Mac OS X 10.5 or later |
|
| Web Browser | Windows: Internet Explorer 6.0 or Later Macintosh: Safari 4 or Later *With Adobe Flash Player 10 Installed |
||
| Accessories | Markers (Black, Red, Blue, Green), Eraser, AC Power Adaptor, USB Cable (9 ft Length), User?s Manual, Assembly Set-up Manual , Printer Shelf, Wall Mounting Brackets. | ||
| Optional Accessories | Rolling Floor Stand (Part #42-3084) | ||
| *1. The height is adjustable at 68.8, 72.7 and 76.6 inches (1747, 1847 and 1947 mm). *2. The value indicated for “H” (height) is the maximum height. *3. Not including the weight of the printer. *4. USB Memory device not included. The memory capacity corresponds to 32GB or Less. – Please note that for quality improvement purposes, specifications and design are subject to change without prior notice. |
|||
