Description
The GBC Proseries 4600 A2 laminator is designed for print shops and offices processing larger-format materials. An A2 professional pouch laminator with a 480 mm entry width, six rollers and digital temperature control. Nine selectable speeds and two memory settings help repeat document-finishing jobs with compatible pouches up to 350 micron per side.
Need help choosing a laminator or compatible supplies? Contact WOW Supplies in Puchong, Selangor.
Features
- Handles documents up to A2 through a 480 mm entry.
- 6-roller system with approximately 6 minutes of warm-up time.
- Four heated rollers and two pull rollers guide larger documents.
- Supports compatible materials up to 3 mm total thickness.
- Two memory settings store frequently used temperature and speed combinations.
- Reverse control assists with misfeeds.
- Heavy metal construction and digital controls suit regular finishing work.
- Suitable for photos, colour copies, laser prints, lithographic prints and digitally printed materials when materials and settings are compatible.
- Cold setting supports compatible self-adhesive cold-seal pouches for heat-sensitive materials.
- Automatic shut-off after 2 hours.
Specifications
| Maximum document size | A2 |
|---|---|
| Maximum entry width | 480 mm |
| Pouch thickness (per side) | Up to 350 micron |
| Warm-up time | Approximately 6 minutes |
| Laminating speed | Up to 1200 mm/min |
| Number of rollers | 6 |
| Cold lamination | Yes; use compatible self-adhesive cold-seal pouches |
| Maximum total throughput thickness | 3.0 mm (document and pouch combined) |
See Additional Information for full specifications. Warm-up time and laminating speed vary with document thickness and operating conditions.
Understanding pouch thickness: micron figures are per side. For example, a 2 × 75 micron pouch has two 75 micron film layers. Match the pouch gauge to this machine’s supported setting and keep the combined document and pouch within its throughput limit.
Suitable applications
Use controlled pouch lamination for compatible printed presentation materials, notices, photographs and larger office or classroom sheets. Select temperature and speed for the actual material and pouch; check heat-sensitive media before processing.

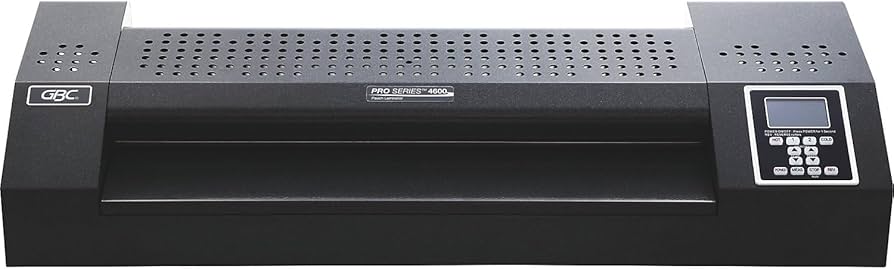

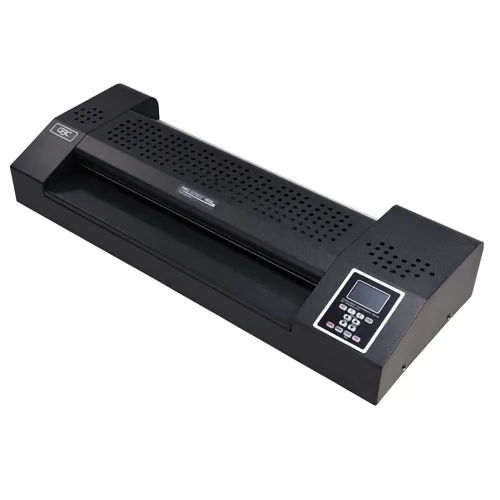

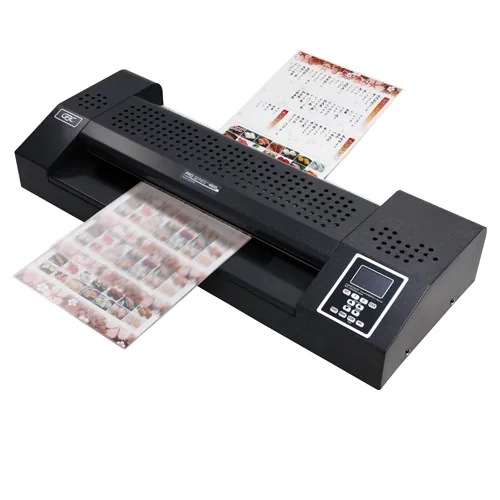

Product views and details
Before ordering
Contact us for availability, warranty details or help selecting compatible supplies. Leave clear space behind the laminator for sheets to exit. Follow the machine instructions for feeding, cleaning and compatible materials.
Frequently asked questions
What document size does the GBC Proseries 4600 A2 support?
The maximum document size is A2. The entry width is 480 mm.
Which consumables should I use?
Use compatible thermal laminating pouches rated Up to 350 micron per side. Micron ratings describe each film layer, not the total pouch thickness. Match the document and pouch to the supported machine setting.
Does this laminator support cold lamination?
Yes. Use compatible self-adhesive cold-seal pouches with the cold setting and follow the supplied instructions.
