Description
- Automatic document feeder scan speed of up to 40 ppm / 80 ipm
- Single-pass duplex scanning with 50-sheet document feeder capacity
- Recommended daily duty cycle of 4000 pages
- Optical scan resolution up to 600 dpi
- Ethernet 10/100 Base-T, USB 3.0, Wi-Fi 802.11 b/g/n, and Wi-Fi Direct connectivity
- Multifeed detection and 24-bit external / 48-bit internal bit depth
Scanning performance and handling

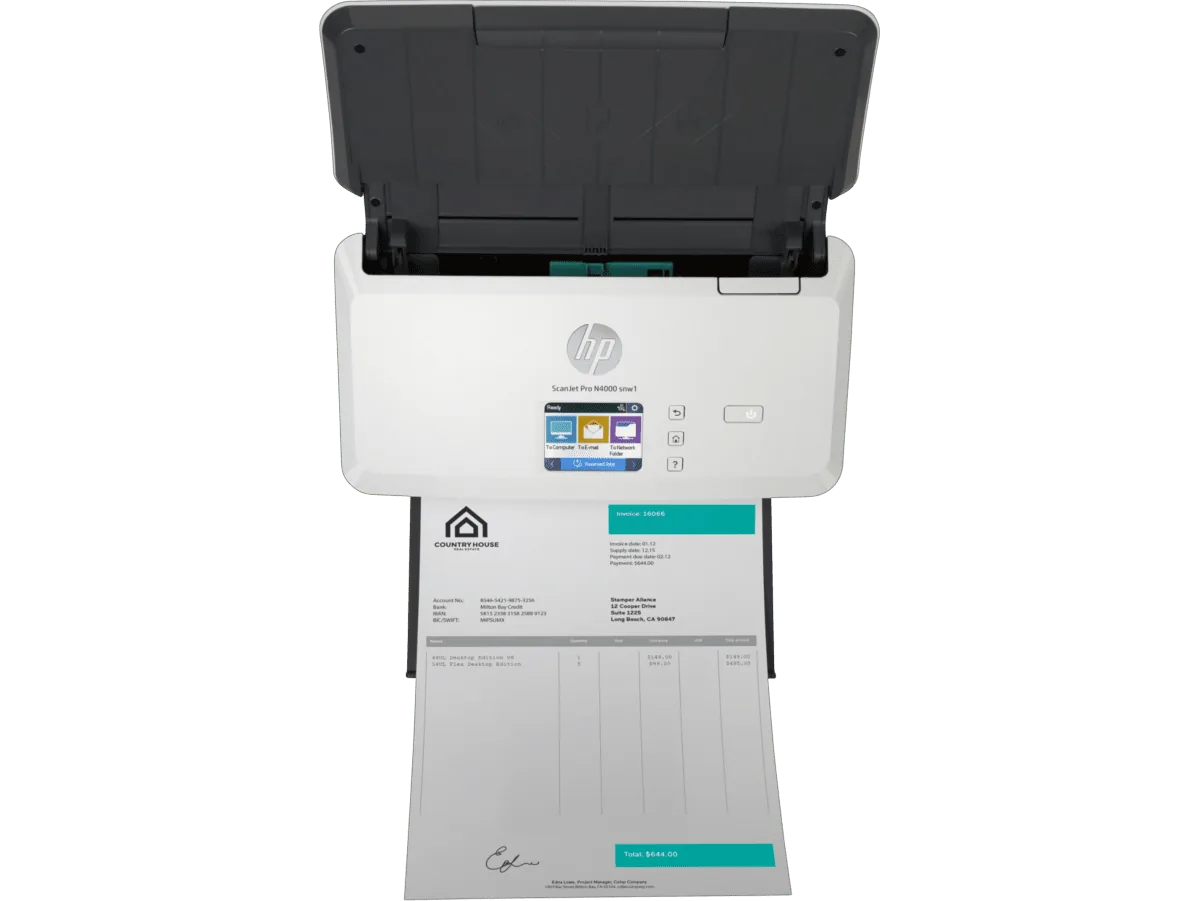

The sheetfed scanner processes documents through an automatic feeder with a standard 50-sheet capacity. Single-pass duplex scanning captures both sides of a page simultaneously at speeds up to 40 ppm or 80 ipm. It supports paper sizes ranging from 50.8 x 50.8 mm up to 216 x 3100 mm, with built-in multifeed detection.
Image technology and output formats
Equipped with a CMOS CIS (Contact Image Sensor), the unit delivers an optical scan resolution of up to 600 dpi with 24-bit external and 48-bit internal colour depth. Built-in optical character recognition generates searchable text files alongside PDF security options. Supported file formats include PDF, PDF/A, Encrypted PDF, JPEG, PNG, BMP, TIFF, Word, Excel, PowerPoint, Text (.txt), and Rich Text (.rtf).
Connectivity and workflow integration

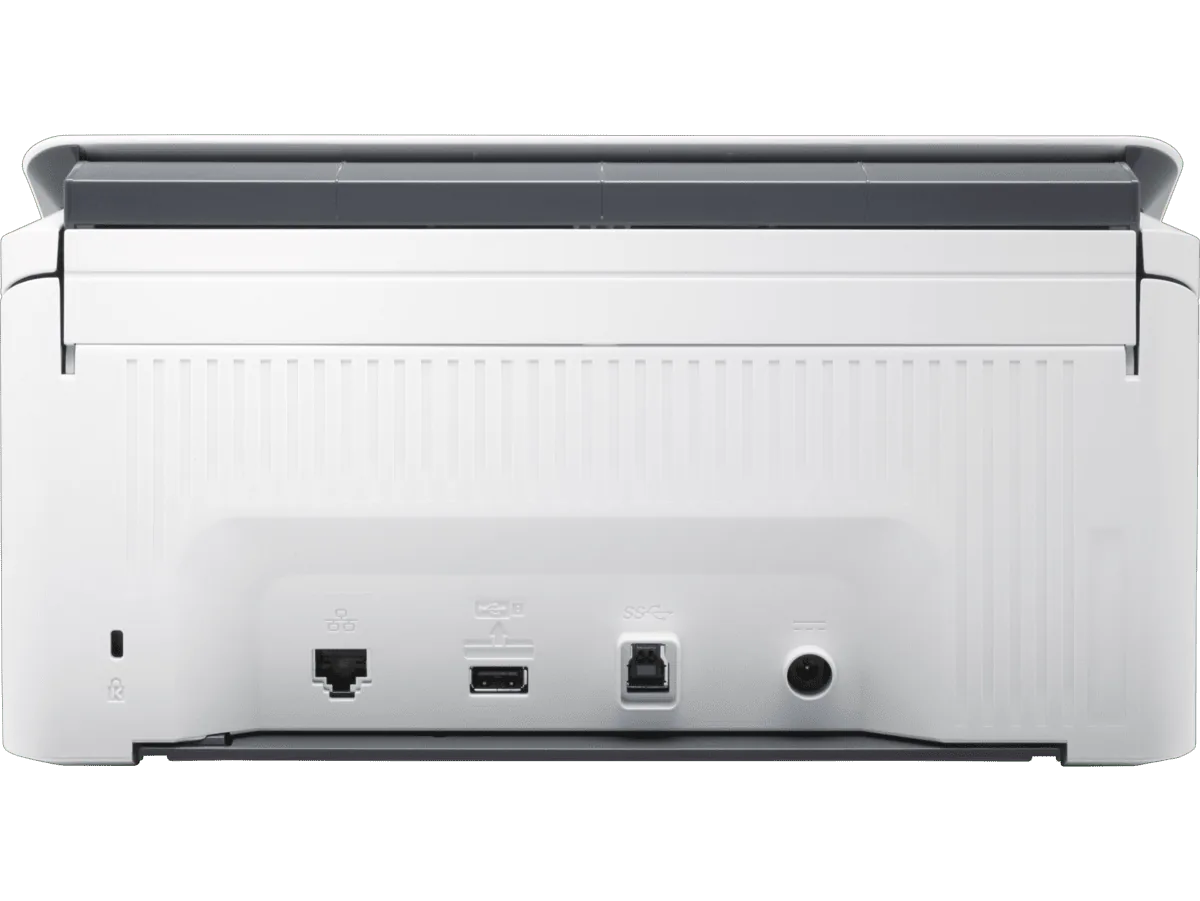

Standard interfaces include Ethernet 10/100 Base-T, USB 3.0, Wi-Fi 802.11 b/g/n, and Wi-Fi Direct. The device supports scanning wirelessly with or without a network, scan to cloud, as well as TWAIN and ISIS driver compatibility.
Specifications and box contents
The unit measures 300 x 172 x 154 mm and weighs 2.8 kg, supporting a recommended daily duty cycle of 4000 pages. Compatible operating systems include Microsoft Windows (10, 8.1, 7, XP, Server 2008 R2, 2012 R2, 2016, 2019), macOS (Catalina 10.15, Mojave 10.14, High Sierra 10.13) and Linux, and it is Citrix ready. The box includes the scanner engine, power cord, power adapter, USB cable, install guide, and flyers.
Warranty
Warranty coverage is 1 Year 3-5 WD Exchange.
