Description
- Paper capacity: 550 sheets
- Compatible printers: Canon imageCLASS LBP456w, Canon imageCLASS LBP458x
- Maximum units supported: Up to three units per printer
- Maximum total input capacity: 2,000 sheets (standard cassette, multi-purpose tray and three PF-H1 units)
- Supported media weight: 60 – 120 g/m²
- Supported paper sizes: A4, A4R, A3, A5R, B4, B5, 8K, 16K, LTR, LTRR, LGL, 11×17, EXEC, FOOLSCAP/FOLIO, Free Size, Custom Size
Capacity Expansion

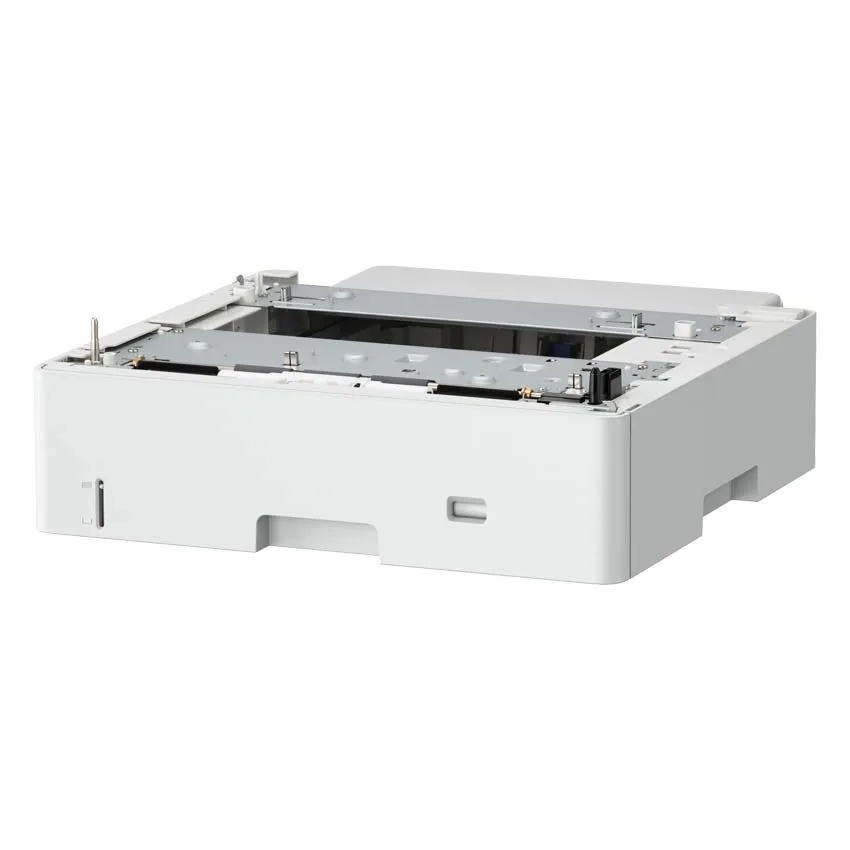

This optional feeder provides an additional 550-sheet paper drawer for imageCLASS LBP456w and LBP458x printers. Up to three units may be attached to a single device, raising total paper capacity to 2,000 sheets when combined with the built-in cassette and multi-purpose tray.
Media Handling
Loading alternate paper formats into the supplementary drawer reduces manual paper changes during print jobs. The unit supports paper weights between 60 and 120 g/m². Feeding A5 media in portrait orientation is not supported by the feeder alone and requires an optional universal cassette.
