Description

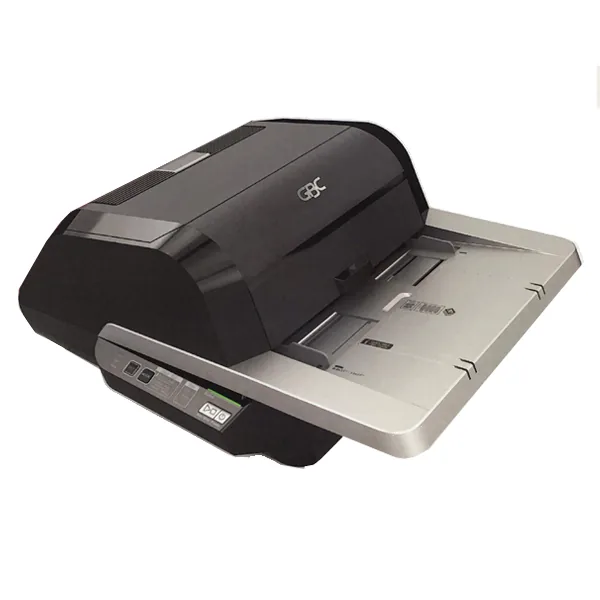

The GBC Foton 30 laminator is designed for offices and education teams laminating batches of handouts and notices. An automated desktop laminator that feeds, laminates and trims documents using an auto-threading film cartridge. Load up to 30 A4 sheets in the feeder to reduce manual handling; manual modes accommodate heavier paper and non-standard documents.
Need help choosing a laminator or compatible supplies? Contact WOW Supplies in Puchong, Selangor.
Features
- Handles documents up to A3; minimum document size is 125 × 153 mm.
- 4-roller system with approximately 3–4 minutes of warm-up time.

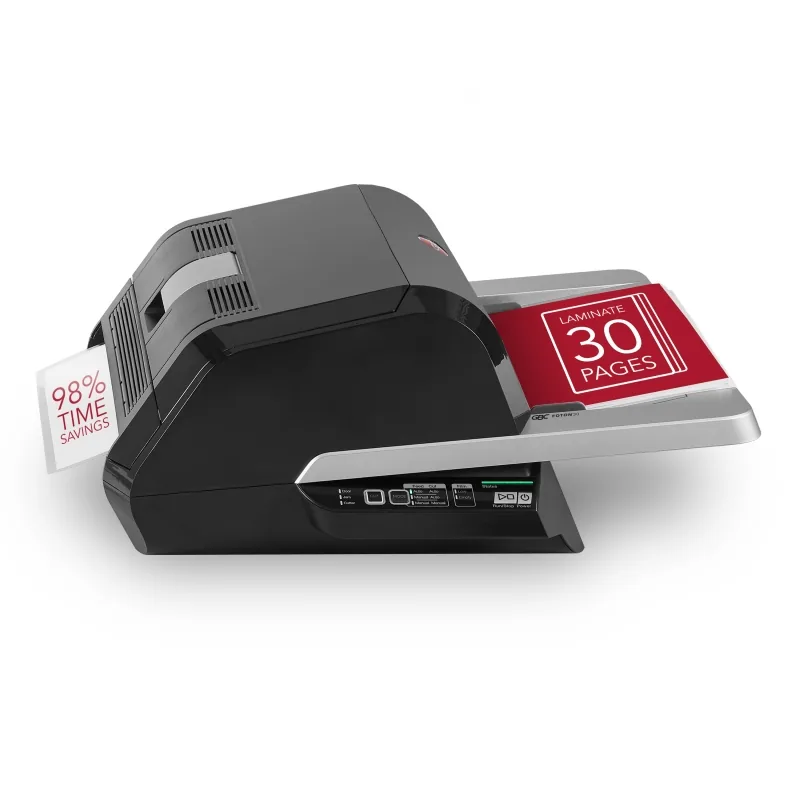

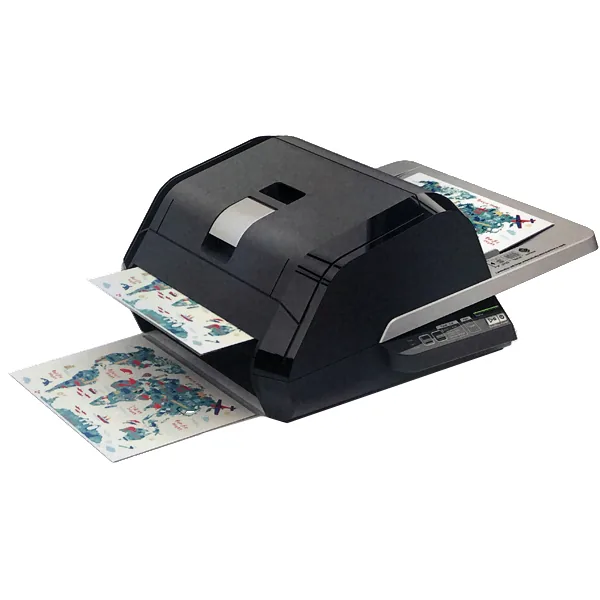

- Automatic feeding, lamination and trimming start once the machine is ready.

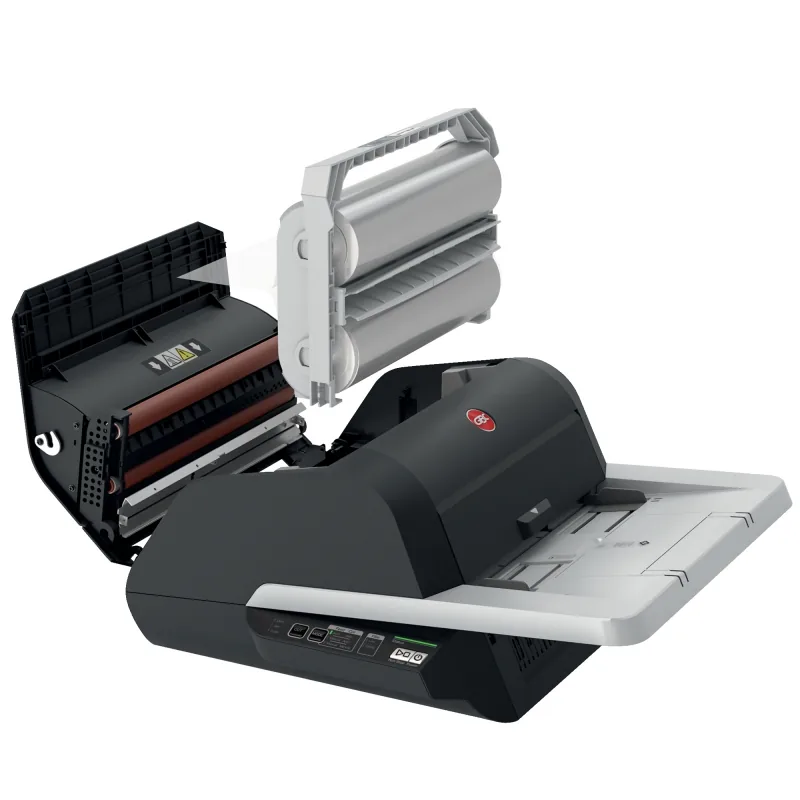

- Auto-threading cartridges replace individual laminating pouches.
- Auto deskew assists page alignment; sensors identify document edges for trimming.
- Low-film indicator shows when a replacement cartridge is needed.
- Manual mode supports paper up to 250 gsm; auto feed supports 65–120 gsm.
- Control panel switches between automatic and manual modes.
- Automatic shut-off after 15 minutes.
Specifications
| Maximum document size | A3 |
|---|---|
| Film thickness | 75–125 micron |
| Warm-up time | Approximately 3–4 minutes |
| Laminating speed | 650–700 mm/min |
| Number of rollers | 4 |
| Cold lamination | No |
| Automatic feeder capacity | Up to 30 A4 sheets (75 gsm) |
| Auto-feed paper weight | 65–120 gsm |
| Manual-feed paper weight | 65–250 gsm |
See Additional Information for full specifications. Warm-up time and laminating speed vary with document thickness and operating conditions.
Consumables: Foton 30 uses compatible film cartridges, rather than individual laminating pouches. Confirm cartridge type, film thickness and whether a starter cartridge is included.
Suitable applications
Batch lamination is useful for classroom handouts, office notices and frequently handled documents. Use manual mode when the paper weight or document shape is outside the automatic feeding requirements.
Product views and details
Product video
Before ordering
Contact us for availability, warranty details or help selecting compatible supplies. Leave clear space behind the laminator for sheets to exit. Follow the machine instructions for feeding, cleaning and compatible materials.
Frequently asked questions
What document size does the GBC Foton 30 support?
The maximum document size is A3. The minimum document size is 125 × 153 mm; the automatic feeder takes up to 30 A4 sheets of 75 gsm paper.
Which consumables should I use?
Use compatible Foton 30 film cartridges in the supported 75–125 micron range. It does not use individual laminating pouches. Use a Foton 30 cartridge in the supported film thickness.
Does this laminator support cold lamination?
No. It supports thermal lamination only.
