Description
Discontinued model. Contact us for remaining stock or a current alternative.
The GBC Fusion 1000L A4 laminator is designed for home craft projects and occasional small-office lamination. A compact A4 pouch laminator for occasional document and craft work, with simple operation and a green ready light. The 2017 regional version uses 75 micron thermal pouches.
Need help choosing a laminator or compatible supplies? Contact WOW Supplies in Puchong, Selangor.
Features
- Handles documents up to A4 through a 241 mm entry.
- 2-roller system with approximately 4 minutes of warm-up time.
- Simple one-step operation with a single thermal pouch setting.
- An A4 sheet in a 2 × 75 micron pouch takes less than a minute once ready.
- Compact construction makes it easier to store between projects.
- Cold setting supports compatible self-adhesive cold-seal pouches for heat-sensitive materials.
Specifications
| Maximum document size | A4 |
|---|---|
| Maximum entry width | 241 mm |
| Pouch thickness (per side) | 75 micron |
| Warm-up time | Approximately 4 minutes |
| Laminating speed | 330 mm/min |
| Number of rollers | 2 |
| Cold lamination | Yes; use compatible self-adhesive cold-seal pouches |
| Maximum total throughput thickness | 0.7 mm (document and pouch combined) |
See Additional Information for full specifications. Warm-up time and laminating speed vary with document thickness and operating conditions.
Understanding pouch thickness: micron figures are per side. For example, a 2 × 75 micron pouch has two 75 micron film layers. Match the pouch gauge to this machine’s supported setting and keep the combined document and pouch within its throughput limit.
Suitable applications
Protect notices, learning cards, menus, certificates and frequently handled office sheets in compatible pouches. Choose A4 or smaller documents and allow the machine to reach its ready state before feeding. Check the suitability of heat-sensitive originals first.

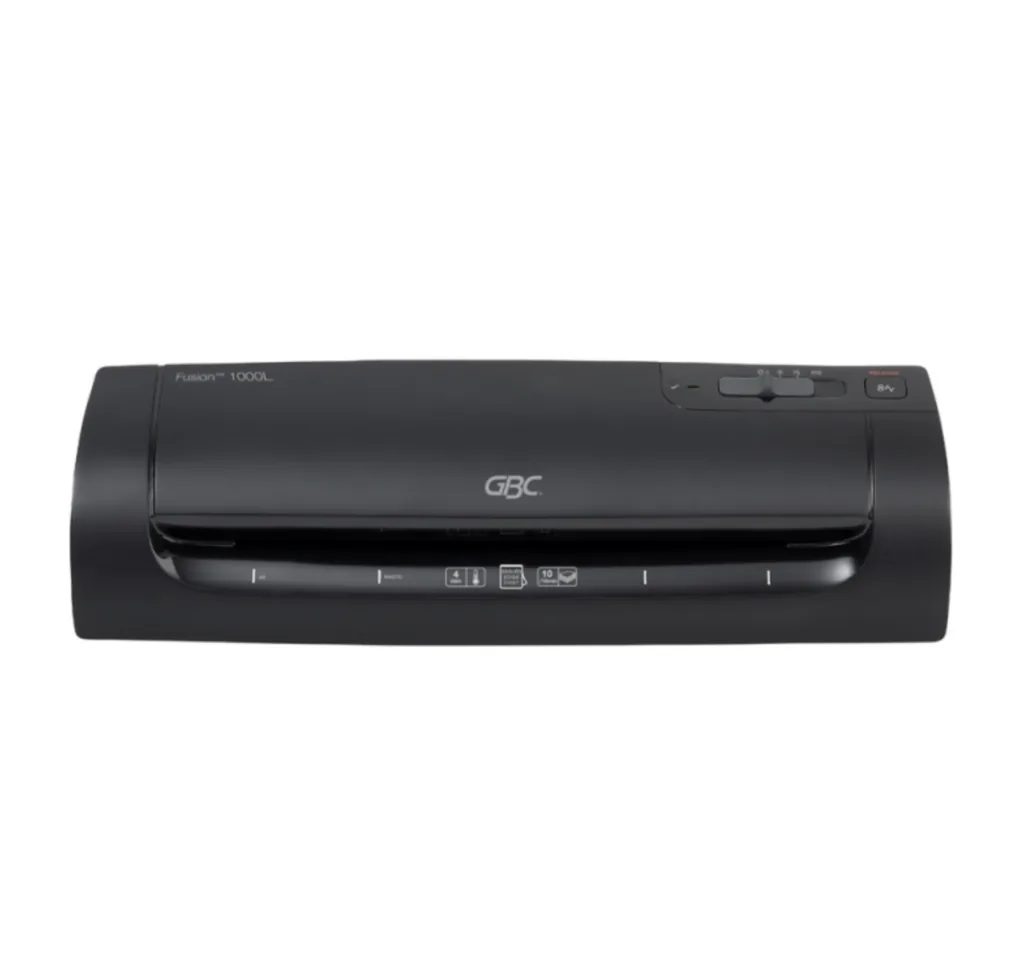

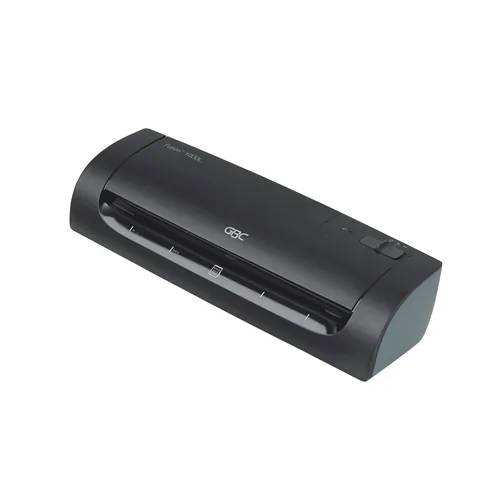

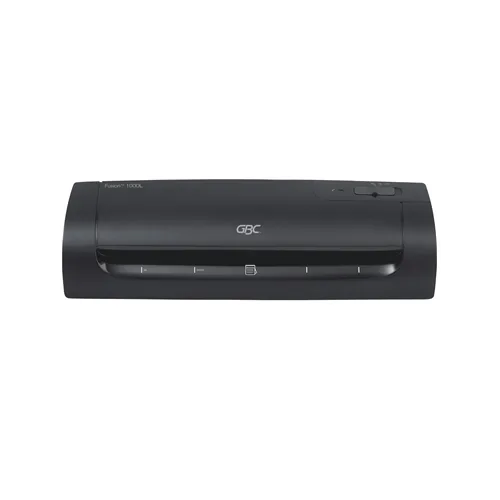

Product views and details
Product video
Before ordering
Contact us for availability, warranty details or help selecting compatible supplies. Leave clear space behind the laminator for sheets to exit. Follow the machine instructions for feeding, cleaning and compatible materials.
Frequently asked questions
What document size does the GBC Fusion 1000L A4 support?
The maximum document size is A4. The entry width is 241 mm.
Which consumables should I use?
Use compatible thermal laminating pouches rated 75 micron per side. Micron ratings describe each film layer, not the total pouch thickness. Match the document and pouch to the supported machine setting.
Does this laminator support cold lamination?
Yes. Use compatible self-adhesive cold-seal pouches with the cold setting and follow the supplied instructions.
Is this model discontinued?
This WOW Supplies listing is marked discontinued. The specifications remain available for reference; ask us about any remaining availability and suitable current alternatives.
