Description
The GBC Fusion Plus 7000L A3 laminator is designed for busy offices and frequent document-finishing workflows. A six-roller A3 pouch laminator with automatic thickness detection and a rated speed of up to 1,400 mm/min. Its quick warm-up, automatic reverse and optional manual settings suit teams laminating documents frequently.
Need help choosing a laminator or compatible supplies? Contact WOW Supplies in Puchong, Selangor.

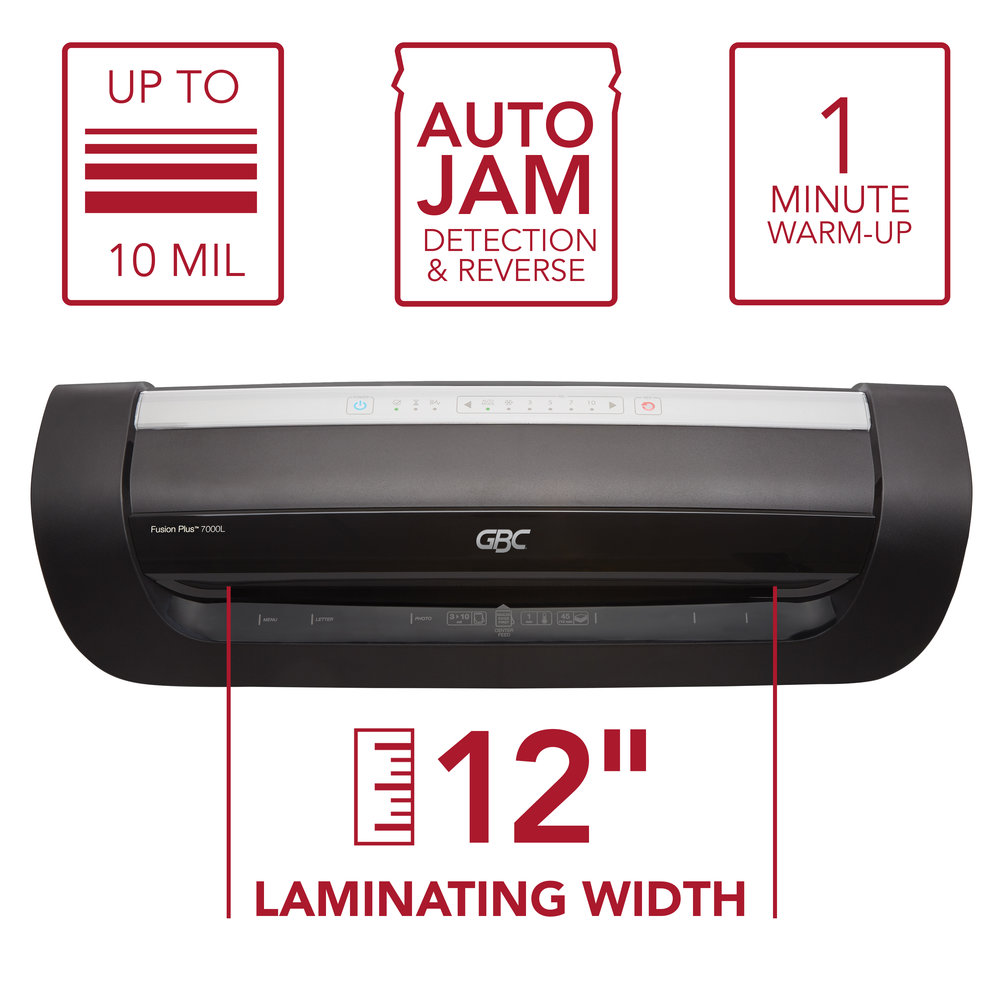

Features
- Handles documents up to A3 through a 303 mm entry.
- 6-roller system with approximately 1 minute of warm-up time.

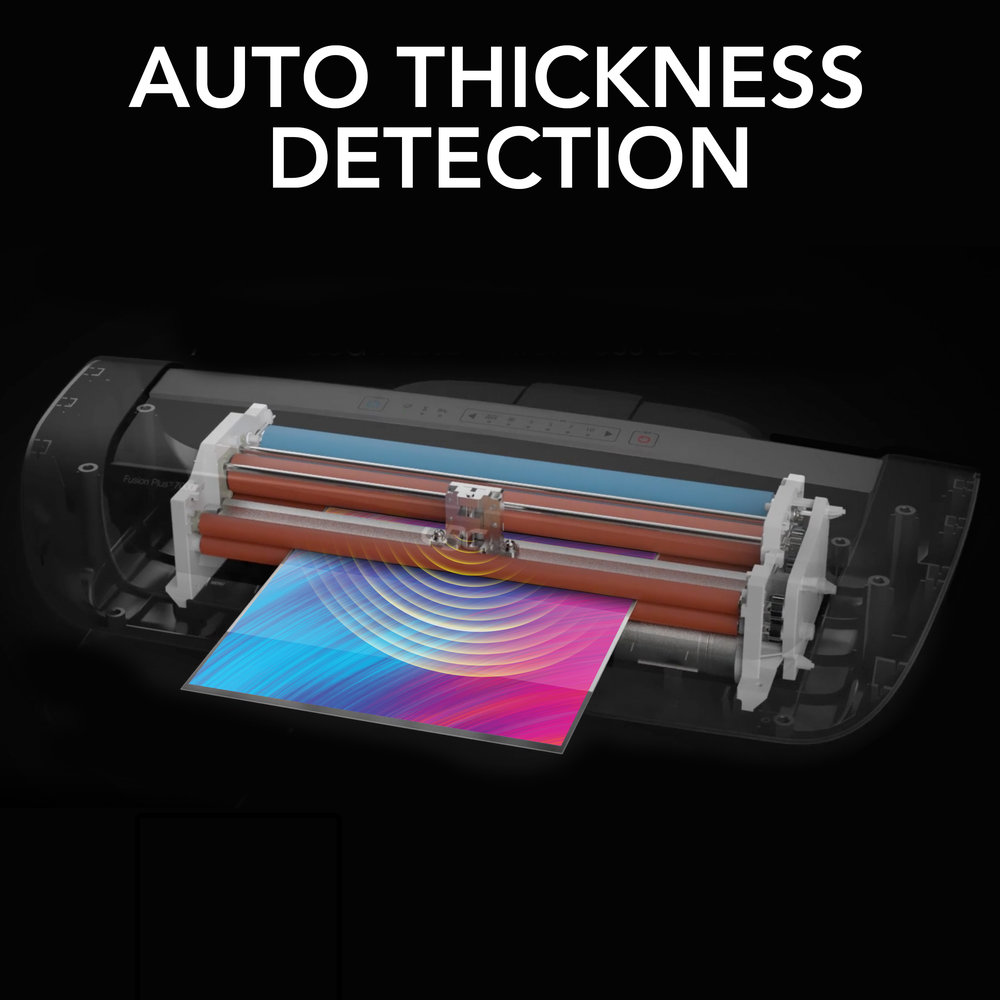

- Automatic pouch thickness detection selects suitable settings for 75–250 micron pouches.
- Manual pouch settings are 75, 125, 175 and 250 micron.
- Built-in jam detection and automatic reverse help clear feeding errors.
- One-minute warm-up and six rollers support regular office lamination.
- Cold setting supports compatible self-adhesive cold-seal pouches for heat-sensitive materials.
- Automatic shut-off after 30 minutes of inactivity.
Specifications
| Maximum document size | A3 |
|---|---|
| Maximum entry width | 303 mm |
| Pouch thickness (per side) | 75–250 micron |
| Warm-up time | Approximately 1 minute |
| Laminating speed | Up to 1400 mm/min |
| Number of rollers | 6 |
| Cold lamination | Yes; use compatible self-adhesive cold-seal pouches |
| Maximum total throughput thickness | 1.2 mm (document and pouch combined) |
See Additional Information for full specifications. Warm-up time and laminating speed vary with document thickness and operating conditions.
Understanding pouch thickness: micron figures are per side. For example, a 2 × 75 micron pouch has two 75 micron film layers. Match the pouch gauge to this machine’s supported setting and keep the combined document and pouch within its throughput limit.
Suitable applications
Protect notices, learning cards, menus, certificates and frequently handled office sheets in compatible pouches. Choose A3 or smaller documents and allow the machine to reach its ready state before feeding. Check the suitability of heat-sensitive originals first.

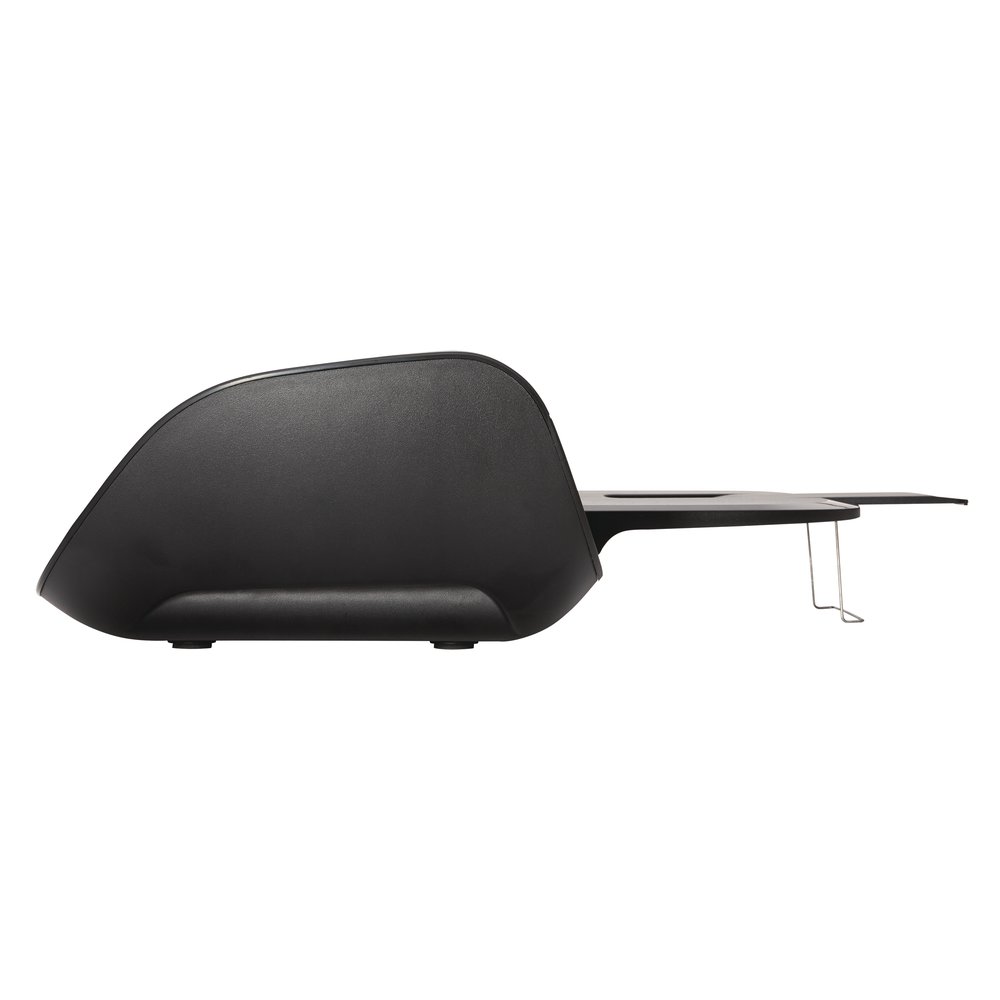

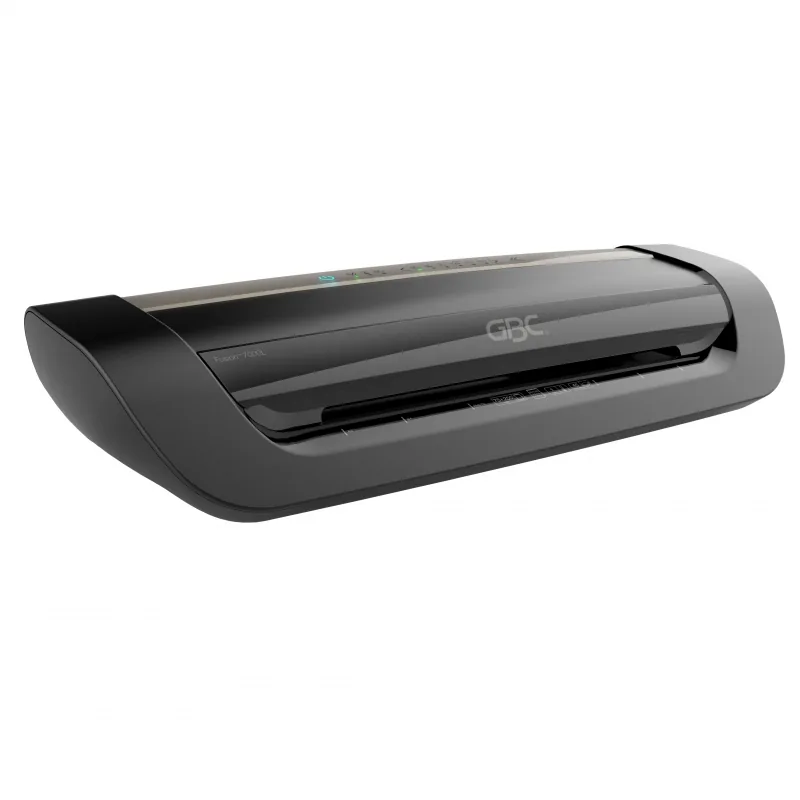

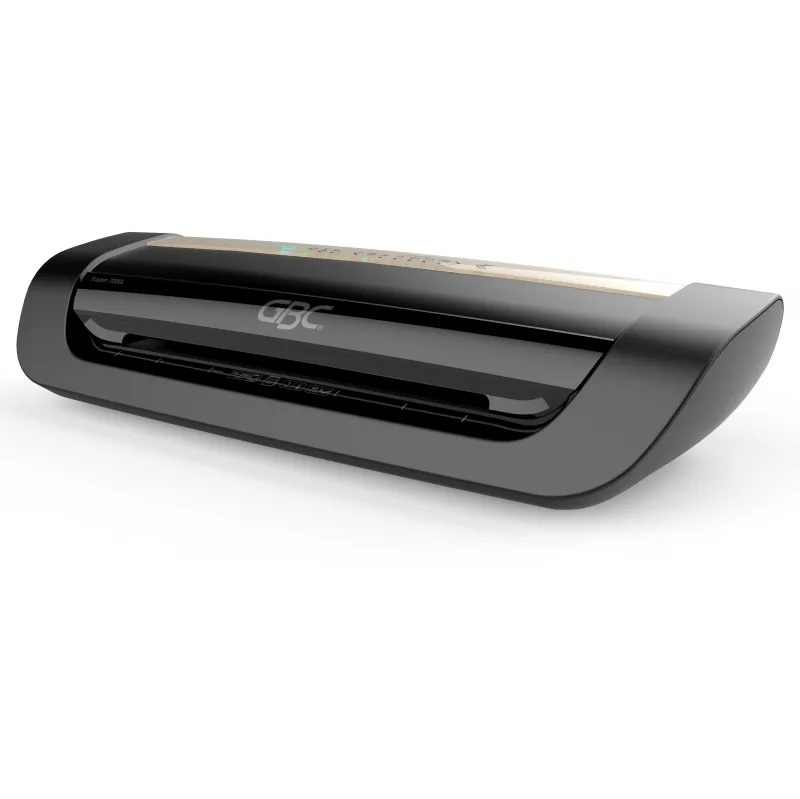

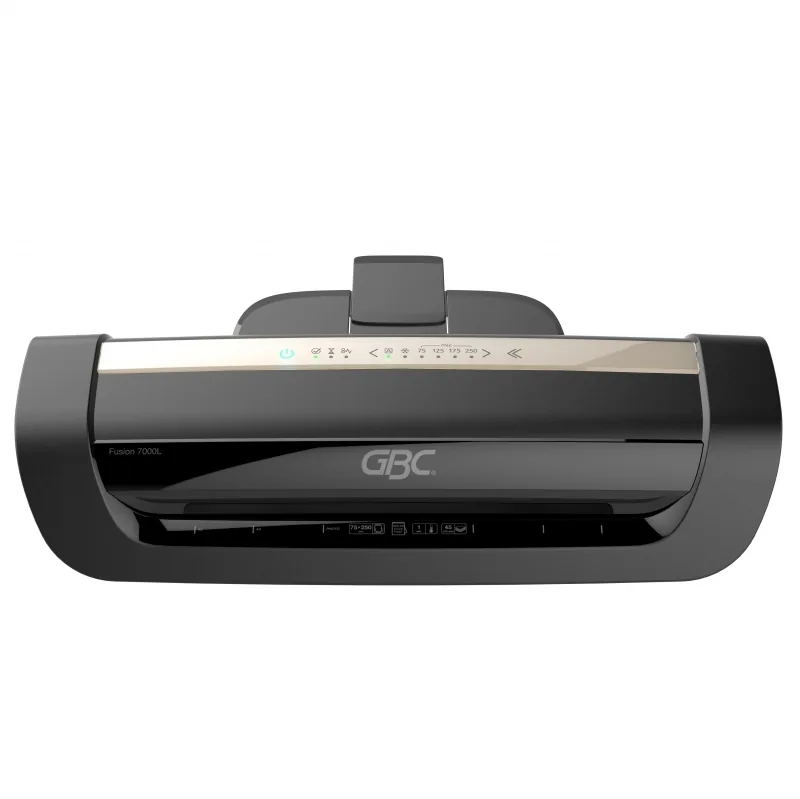

Product views and details
Product video
Before ordering
Contact us for availability, warranty details or help selecting compatible supplies. Leave clear space behind the laminator for sheets to exit. Follow the machine instructions for feeding, cleaning and compatible materials.
Frequently asked questions
What document size does the GBC Fusion Plus 7000L A3 support?
The maximum document size is A3. The entry width is 303 mm.
Which consumables should I use?
Use compatible thermal laminating pouches rated 75–250 micron per side. Micron ratings describe each film layer, not the total pouch thickness. Match the document and pouch to the supported machine setting.
Does this laminator support cold lamination?
Yes. Use compatible self-adhesive cold-seal pouches with the cold setting and follow the supplied instructions.
