Description
- Print, scan, and copy functions in a single desktop unit
- Print speeds up to 16.0 ipm mono and 9.0 ipm colour
- Print resolution up to 1200 x 6000 dpi on Windows systems
- Enclosed paper cassette holding up to 150 sheets of 80 gsm paper
- Manual feed slot accommodating media up to 300 gsm
- Integrated front-access refillable ink tank system
Document Output and Performance
The Brother DCP-T230 provides everyday document processing with mono printing speeds reaching 16.0 ipm and colour output at 9.0 ipm. It supports borderless printing up to A4 size and achieves print resolutions up to 1200 x 6000 dpi under supported Windows environments. Flatbed copying produces resolutions up to 1200 x 1800 dpi.
Media Handling and Capacity
A front paper tray accommodates up to 150 sheets of 80 gsm plain paper and supports weights between 64 and 220 gsm. For thicker media, a manual feed slot accepts single sheets weighing up to 300 gsm. The output tray collects up to 50 sheets of 80 gsm plain paper.
Tank Refilling and Scanning Capabilities

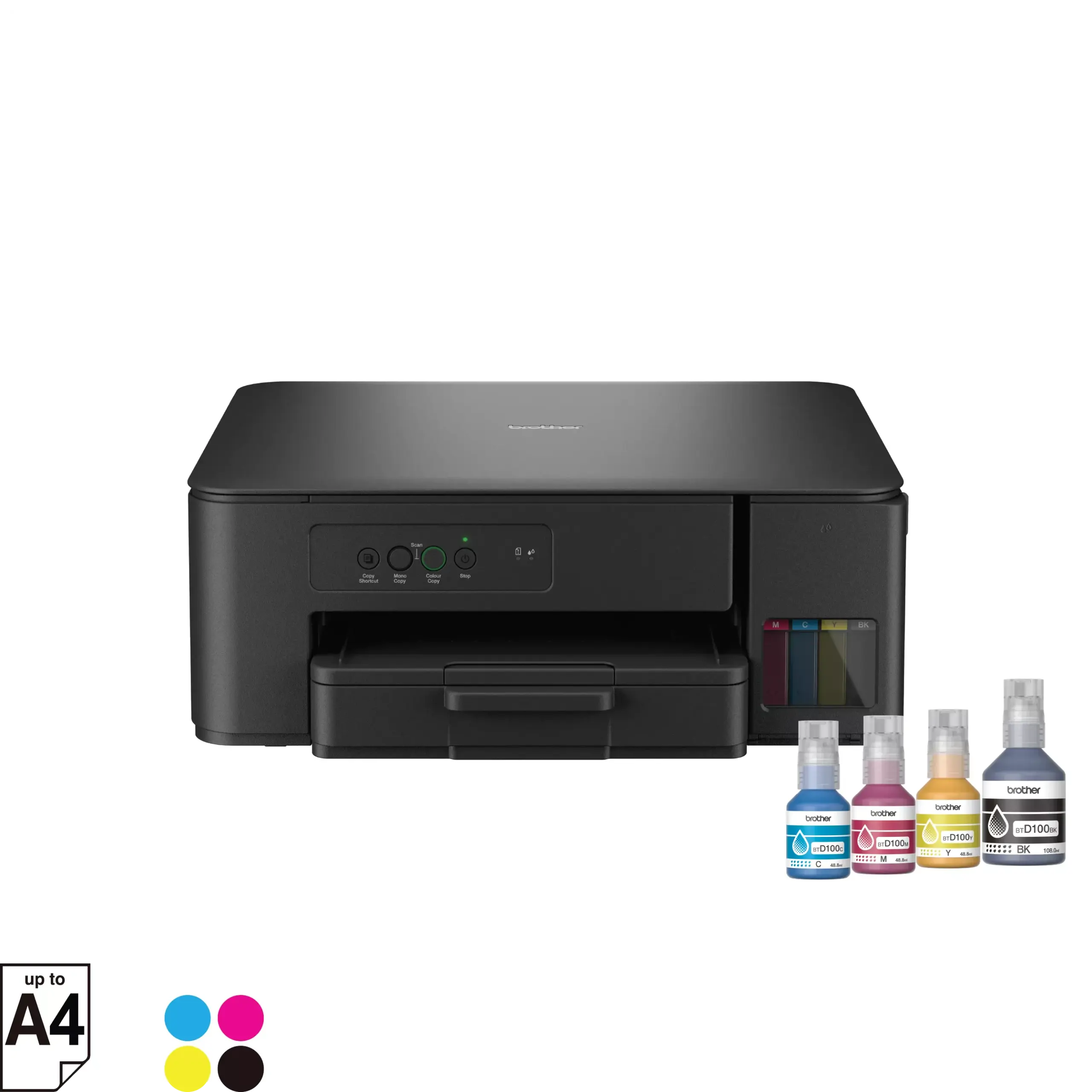

The built-in front-facing ink tank system uses spill-free refill bottles, with full ink bottles supplied in the box that yield up to 7,500 black pages and 5,000 colour pages. The flatbed glass scanner captures documents at optical resolutions up to 1200 x 2400 dpi for archival and copying needs.
Connectivity and System Compatibility
Connection is established via a Hi-Speed USB 2.0 port. The unit includes an LED status display, 64 MB of onboard memory, and measures 390 mm wide, 343 mm deep, and 148.5 mm high, with an overall weight of 6.3 kg. It operates with Windows 10, Windows 11, and Windows Server 2016, 2019, and 2022.
