Description
- WUXGA resolution: 1920 x 1200 pixels
- 5,200 lm light output
- LCD projector with laser diodes
- Fixed zoom, powered focus lens
- 2.03–3.05 m (80–120 in) screen size (16:10 aspect ratio)
- Ceiling or floor installation, with front or rear projection
- 25 dB operation noise in QUIET mode
Image adjustment and installation

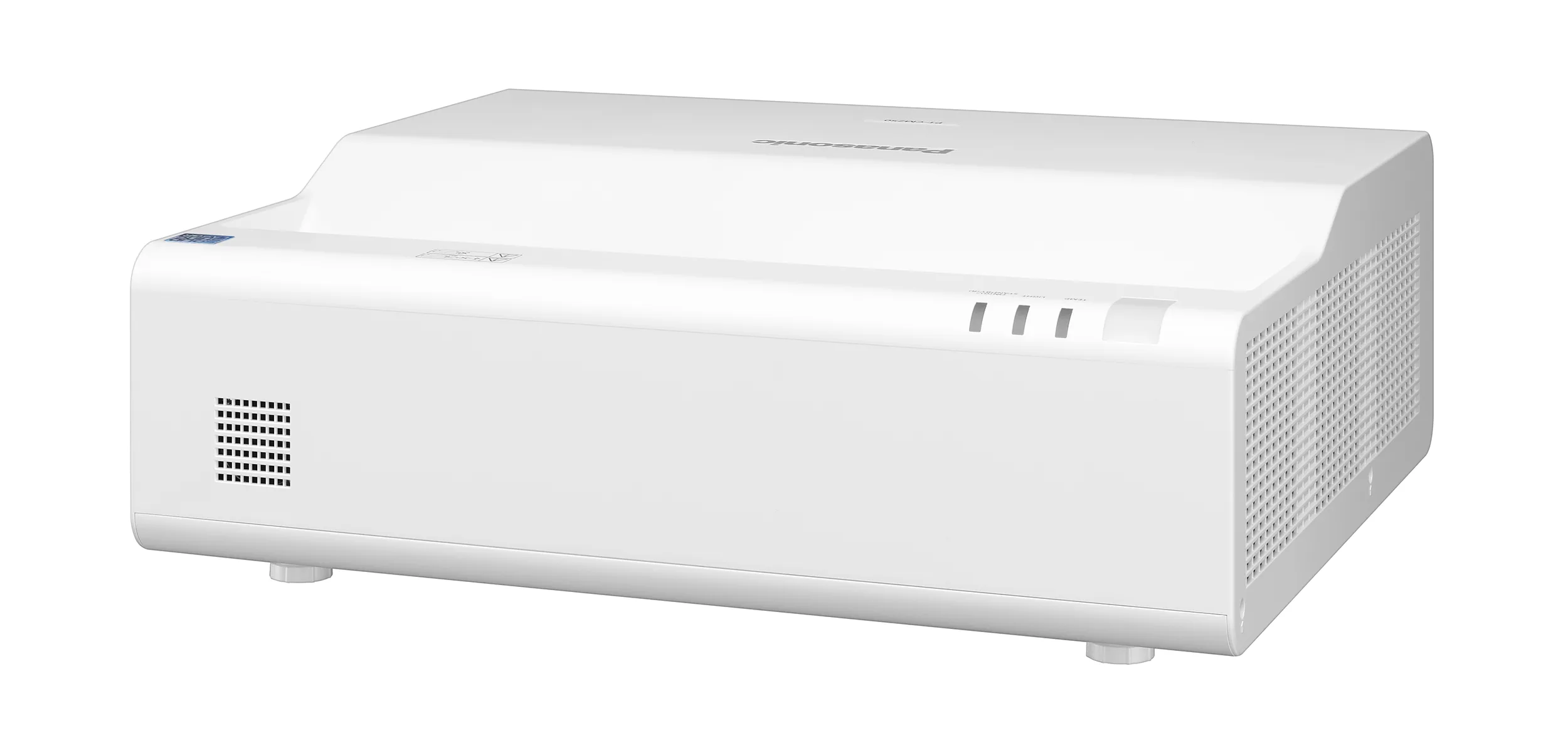

The Panasonic PT-CMZ50 has powered centre focus and powered periphery focus adjustment using the remote control. Digital Zoom Extender and Digital Image Shift support image-size and image-position adjustment. It supports 4-Corner Correction, Vertical/Horizontal Keystone Correction and Curved Screen Correction. The projector supports free 360-degree installation.
Signal and connection options
The projector accepts signals up to 4K/30p through HDMI and DIGITAL LINK, converting signals with a different resolution to 1920 x 1200 dots. HDMI IN provides HDMI 19-pin x 2 with CEC support, while HDMI OUT provides HDMI 19-pin x 1. The USB Type A connector supports the Memory Viewer function for still images stored on a USB memory device.
Control and system support
The PT-CMZ50 supports DICOM Simulation Mode, PJLink, Crestron Connected and AMX Device Discovery. Both HDMI inputs support CEC commands, although link control may not operate normally with some connected CEC-compatible devices. Direct Off allows the projector to be switched off through the room breaker switch.
Optional wireless projection
Wireless projection and QR-code wireless connection require the optional AJ-WM50 Series Wireless Module, sold separately. The built-in speaker is rated at 10 W monaural. The PT-CMZ50 is white and weighs Approx. 9.5 kg (20.9 lbs).
Warranty
3 years set warranty against manufacturing defects & 10,000 hrs whichever comes first for LASER projectors.
