Description

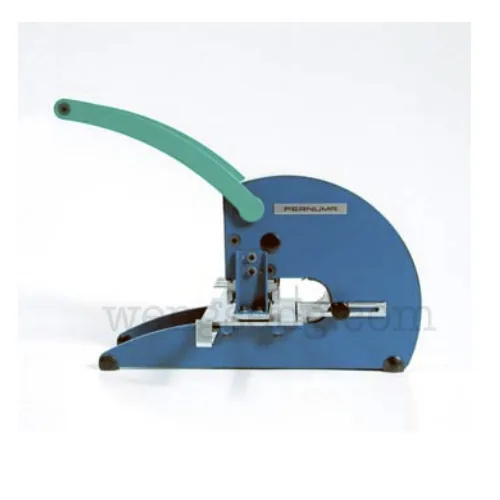

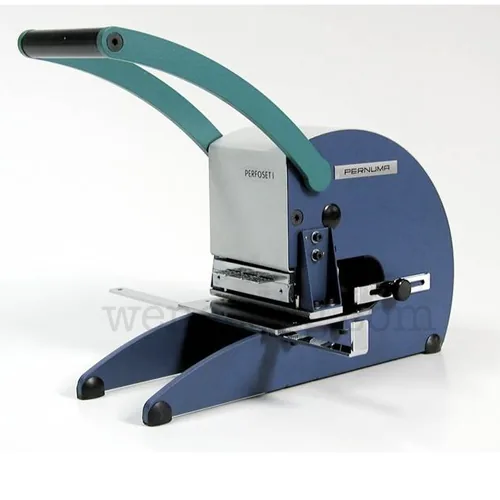

Pernuma PERFOSET I/D manual date perforator
The Pernuma PERFOSET I/D is a manual date perforator for marking documents with small punched holes rather than marking ink. Its standard date configuration uses 18 metal figure slides for a six-digit date; change the slides manually when the date changes. Capacity is up to approximately 15 sheets on 70 g/m² paper, with an insertion depth of about 75 mm.
Features
- Date setting by hand-changed figure slides for dates on invoices, forms or internal records.
- Capacity of up to approximately 15 sheets of 70 g/m² paper, depending on the marking layout.
- Insertion depth about 75 mm and maximum perforation width 60 mm.
- Standard date line; optional fixed text above or below with 6 or 8 mm characters.
- Date-figure heights of 6, 8 or 10 mm; optional fixed text uses 6 or 8 mm characters.
- Hand-operated lever and adjustable side/rear gauges to help position the mark consistently.
Specifications
| Brand | Pernuma |
|---|---|
| Model | PERFOSET I/D |
| Operation type | Manual date perforator |
| Standard marking configuration | Six-digit date using 18 figure slides in the standard version; select slides manually |
| Paper capacity | Up to approximately 15 sheets of 70 g/m² paper |
| Capacity conditions | 70 g/m² paper; heavier paper or more perforations may reduce capacity |
| Insertion depth | Approx. 75 mm, paper edge to centre of perforation |
| Maximum perforation width | 60 mm |
| Standard character heights | Date figures: 6, 8 or 10 mm; optional fixed text: 6 or 8 mm only |
Net and packed weights, packaging dimensions and character/pin sizes are listed in Additional Information. Heavier paper or more perforations may reduce capacity; test a sample stack with your usual documents.
Marking configuration and ordering
The numeric date is selected by manually changing the metal figure slides. The standard configuration has six numeric positions, such as DD.MM.YY, with separators according to the ordered die. Ask about other letter/number arrangements within the model’s permitted width. Optional fixed text must be specified in the die drawing before supply.
Applications and support in Malaysia
WOW Supplies in Puchong, Selangor supplies the Pernuma PERFOSET I/D for document marking in Malaysia. Specify the date format or letter/number layout, paper weight, usual stack size and marking position when ordering.
Product views and configuration references
Frequently asked questions
How many sheets can the Pernuma PERFOSET I/D perforate?
Up to approximately 15 sheets of 70 g/m² paper. Heavier paper or more perforations may reduce capacity.
Does the date update automatically?
No. The standard date is set manually with metal figure slides. The hand-operated lever does not update the selected date automatically.
What should I specify before ordering?
Specify the date format or letter/number layout, character height, number of lines, paper weight and marking position. Agree the final die drawing with WOW Supplies before the die is made.
