Description

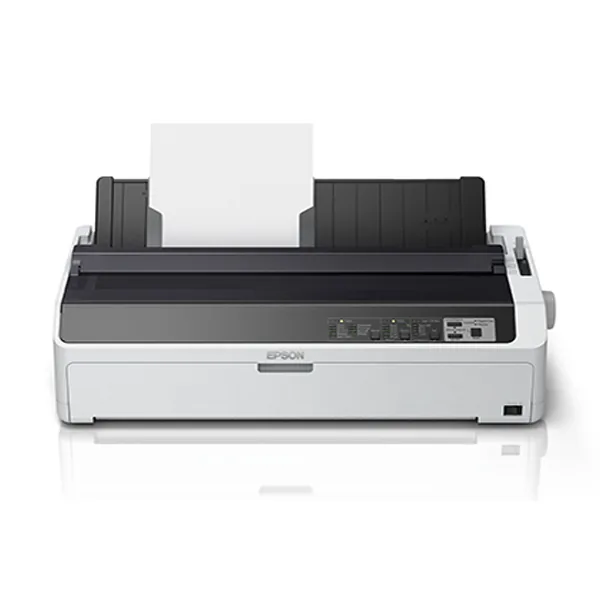

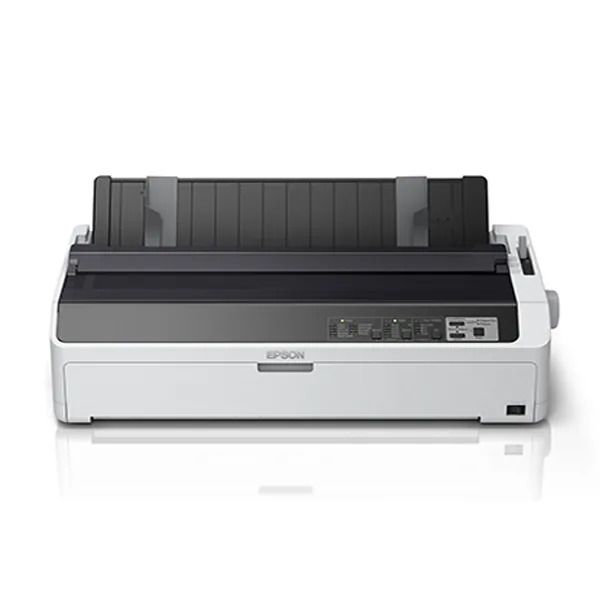

Epson LQ-2090IIN dot-matrix printer
A wide-carriage, 136-column dot-matrix printer with integrated wired LAN for shared business forms.
The LQ-2090IIN combines a wide print line with network access for shared office workflows. It also provides USB, parallel and serial interfaces, making the connection choice explicit when planning an installation for forms, reports and transaction documents.
Enquire with WOW Supplies in Puchong, Selangor, Malaysia about the LQ-2090IIN for your business paperwork. Share your paper width, form sample, number of copies and computer connection so the required configuration can be checked before you order.
Features
- Print width and form layout: 136 columns at 10 cpi. Match the printable area to the fields and margins on your form rather than choosing by paper width alone.
- Speed with the mode stated: 487 cps at 10 cpi; 584 cps at 12 cpi (High Speed Draft). cps means characters per second; cpi means characters per inch. Draft and letter-quality settings have different output speeds.
- Multipart document handling: Continuous: 7-part forms (1 original + 6 copies); cut-sheet: 6-part forms (1 original + 5 copies). Use forms within the documented width, thickness and paper-path limits.
- Connection choice: Built-in 100BASE-TX wired LAN, plus USB, parallel and serial.
- Replaceable black ribbon: C13S015586 is the cartridge listed for this regional model. Approx. 8 million characters; actual yield varies with use.
- Planning dependable operation: 25,000 power-on hours (25% duty cycle) MTBF and 400 million strokes per printhead wire are manufacturer ratings. Keep the paper path clear and follow routine cleaning and ribbon-replacement guidance.
Specifications
| Printing method | 24-pin impact dot matrix |
|---|---|
| Printable columns | 136 columns at 10 cpi |
| Print speed | 487 cps at 10 cpi; 584 cps at 12 cpi (High Speed Draft) |
| Multipart capability | Continuous: 7-part forms (1 original + 6 copies); cut-sheet: 6-part forms (1 original + 5 copies) |
| Standard interfaces | USB 2.0, bi-directional parallel, serial and 100BASE-TX wired LAN |
| Ribbon life | Approx. 8 million characters; actual yield varies with use |
| Ribbon cartridge | C13S015586 |
| MTBF | 25,000 power-on hours (25% duty cycle) |
Open Additional Information for the complete technical details, including media limits, paper paths, print modes, dimensions and interfaces.
Paper, connectivity and ordering guidance
Seven-part capability applies to continuous paper only. The “N” model includes wired network connectivity; it should not be confused with the standard LQ-2090II.
For preprinted invoices, delivery notes or multipart business forms, check the paper specification and application layout together. Confirm the driver for your operating system and the required connection cable; optional feeders and interface boards are separate items unless included in the quoted package.
Contact WOW Supplies in Puchong to confirm current availability, supplied accessories and quotation details.

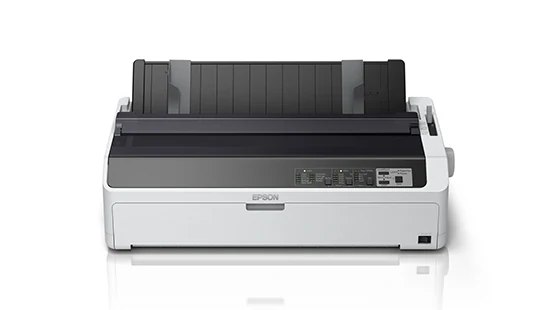

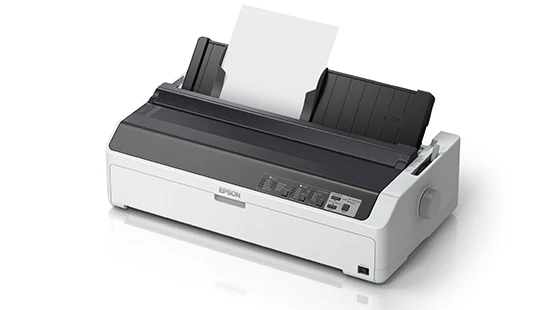

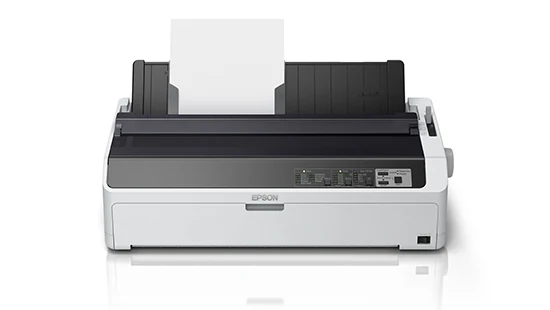

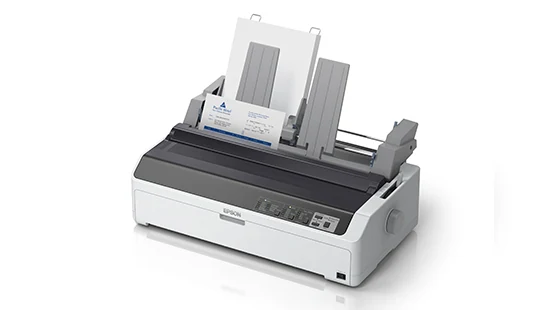

Product views and details
Frequently asked questions
How many copies can the LQ-2090IIN print?
Continuous: 7-part forms (1 original + 6 copies); cut-sheet: 6-part forms (1 original + 5 copies). Copy count includes the original. Use the supported paper type, thickness and entry path.
Does the LQ-2090IIN have built-in network connectivity?
Built-in 100BASE-TX wired LAN, plus USB, parallel and serial.
Which ribbon is listed for the LQ-2090IIN?
The current regional specification lists C13S015586. Confirm the exact model and cartridge code before ordering a replacement; ribbon yield depends on use.
Where can I enquire about this Epson dot-matrix printer in Malaysia?
Contact WOW Supplies in Puchong, Selangor, Malaysia. Provide your form width, copy requirement, operating system and connection type to confirm the model and quoted package.
