Epson LQ-680Pro Flat-bed Dot Matrix Printer

Out of stock

RM2,230.00

24-pin impact printer; 106 columns at 10 cpi
413 cps at 10 cpi (High Speed Draft); 465 cps at 15 cpi (Draft)
6-part forms: 1 original + 5 copies
Bi-directional parallel (IEEE 1284 nibble mode)

Currently out of stock — message us and we will let you know when it is back.

Ask about this on WhatsApp

SKU: LQ-680Pro Category: Dot-Matrix Printer Tags: 24 pins dot matrix, flatbed printer

Serviced in-house in Puchong — no overseas repairs
Business invoicing & bulk pricing available

Description

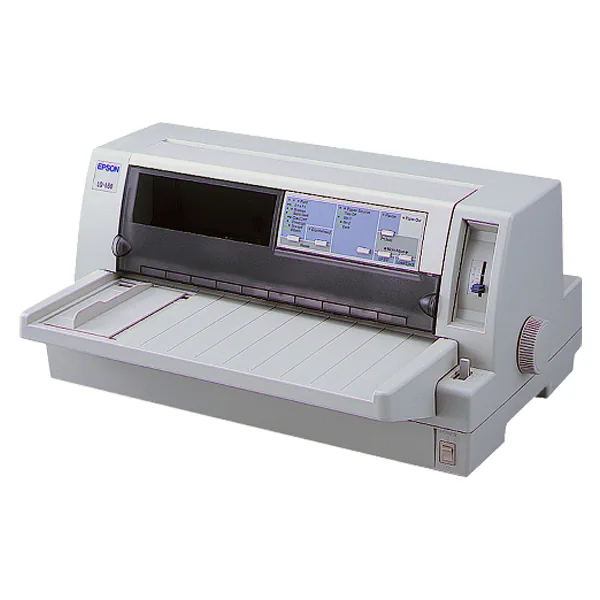

Epson LQ-680Pro dot-matrix printer

A 24-pin flatbed impact printer designed for convenient front-loading cut sheets and multipart forms.

The flatbed layout supports front-in, front-out manual paper handling, keeping individual sheets and forms easy to reach. Automatic platen-gap adjustment and the auto paper changer help when moving between supported paper types. Optional interface boards and a cut-sheet feeder are separate accessories.

Enquire with WOW Supplies in Puchong, Selangor, Malaysia about the LQ-680Pro for your business paperwork. Share your paper width, form sample, number of copies and computer connection so the required configuration can be checked before you order.

Features

Print width and form layout: 106 columns at 10 cpi. Match the printable area to the fields and margins on your form rather than choosing by paper width alone.
Speed with the mode stated: 413 cps at 10 cpi (High Speed Draft); 465 cps at 15 cpi (Draft). cps means characters per second; cpi means characters per inch. Draft and letter-quality settings have different output speeds.
Multipart document handling: 6-part forms: 1 original + 5 copies. Use forms within the documented width, thickness and paper-path limits.
Flatbed convenience: Front-loading manual paper handling, automatic platen-gap adjustment and an auto paper changer support the LQ-680Pro’s individual-sheet and forms workflow.
Connection choice: Ethernet requires a compatible optional Type B network interface; it is not built-in. USB is not listed as a standard interface.
Replaceable black ribbon: C13S015508 is the cartridge listed for this regional model. Approx. 2 million characters (LQ, 10 cpi, 48 dots/character); actual yield varies.
Planning dependable operation: 10,000 power-on hours (25% duty cycle) MTBF and 400 million strokes per printhead wire are manufacturer ratings. Keep the paper path clear and follow routine cleaning and ribbon-replacement guidance.

Specifications

Printing method	24-pin impact dot matrix
Printable columns	106 columns at 10 cpi
Print speed	413 cps at 10 cpi (High Speed Draft); 465 cps at 15 cpi (Draft)
Multipart capability	6-part forms: 1 original + 5 copies
Standard interfaces	Bi-directional parallel (IEEE 1284 nibble mode)
Ribbon life	Approx. 2 million characters (LQ, 10 cpi, 48 dots/character); actual yield varies
Ribbon cartridge	C13S015508
MTBF	10,000 power-on hours (25% duty cycle)

Open Additional Information for the complete technical details, including media limits, paper paths, print modes, dimensions and interfaces.

Paper, connectivity and ordering guidance

The Auto paper-thickness setting is an LQ-680Pro feature. Confirm the required interface board and feeder separately; diagrams do not mean optional accessories are included.

For preprinted invoices, delivery notes or multipart business forms, check the paper specification and application layout together. Confirm the driver for your operating system and the required connection cable; optional feeders and interface boards are separate items unless included in the quoted package.

Contact WOW Supplies in Puchong to confirm current availability, supplied accessories and quotation details.

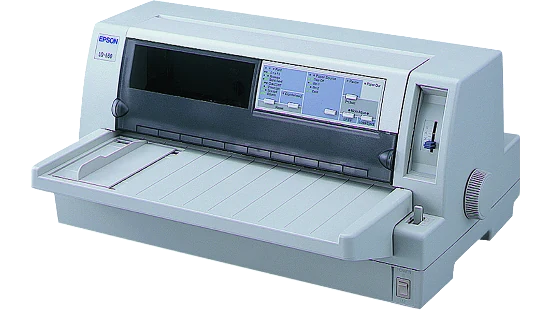

Product views and details

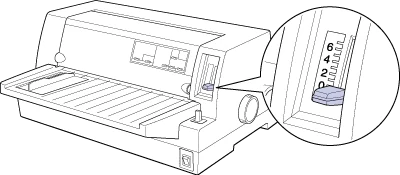

Epson LQ-680Pro — paper-thickness lever diagram; Auto position applies to LQ-680Pro

Frequently asked questions

How many copies can the LQ-680Pro print?

6-part forms: 1 original + 5 copies. Copy count includes the original. Use the supported paper type, thickness and entry path.

Does the LQ-680Pro have built-in network connectivity?

Ethernet requires a compatible optional Type B network interface; it is not built-in. USB is not listed as a standard interface.

Which ribbon is listed for the LQ-680Pro?

The current regional specification lists C13S015508. Confirm the exact model and cartridge code before ordering a replacement; ribbon yield depends on use.

Where can I enquire about this Epson dot-matrix printer in Malaysia?

Contact WOW Supplies in Puchong, Selangor, Malaysia. Provide your form width, copy requirement, operating system and connection type to confirm the model and quoted package.

Additional information

Weight	10 kg
Brand	Epson
Model	LQ-680Pro
Printing Method	24-pin impact dot matrix
Printable Columns	106 columns at 10 cpi
Print Speed	413 cps at 10 cpi (High Speed Draft); 465 cps at 15 cpi (Draft)
Multipart Capability	6-part forms: 1 original + 5 copies
Standard Interfaces	Bi-directional parallel (IEEE 1284 nibble mode)
Ribbon Life	Approx. 2 million characters (LQ, 10 cpi, 48 dots/character); actual yield varies
Ribbon Cartridge	C13S015508
MTBF	10,000 power-on hours (25% duty cycle)
Product Dimensions	497 × 387 × 230 mm (W × D × H)
Product Weight	Approx. 9.4 kg

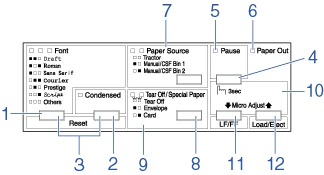

Control Panel	LQ-680Pro: 7 switches, 10 LEDs
Print Direction	Bi-directional with logic seeking
Printhead Pins	24 pins
Control Code	ESC/P2 & IBM 2390 Plus
High Speed Draft	10 cpi: 413 cps
Draft	10 / 12 / 15 cpi: 310 / 372 / 465 cps; Condensed 17 / 20 cpi: 264 / 310 cps
Letter Quality	10 / 12 / 15 cpi: 103 / 124 / 155 cps; Condensed 17 / 20 cpi: 175 / 206 cps
MVBF	20 million lines (Except print head)
Printhead Life	400 million strokes/wire
Character Sets	1 legal character set, 14 international character sets, 13 character code tables (Standard), Italic, PC437, PC850, PC860, PC861, PC863, PC865, Abicomp, BRASCII, Roman 8, ISO Latin1, PC858, ISO 8859-15
Bitmap Fonts	EPSON Draft, EPSON Roman, EPSON Sans Serif, EPSON Courier, EPSON Prestige, EPSON Script, EPSON Script C, EPSON OCR-B, EPSON Orator, EPSON Orator-S
Scalable Fonts	EPSON Roman, EPSON Sans Serif, EPSON Roman T, EPSON Sans Serif H
Barcode	EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, PostNet
Manual Insertion	Front in, Front out
Push Tractor	Rear in, Front out
Cut Sheet Feeder	Rear in, Front out; requires the compatible optional accessory
Cut Sheet (Single Sheet)	Front: width 90–304.8 mm; length 70–420 mm; thickness 0.065–0.19 mm; 52–157 g/m². Optional feeders: width 100–297 mm; high-capacity length 70–420 mm; second-bin length 210–420 mm; thickness 0.065–0.12 mm; 52–91 g/m²
Cut Sheet (Multi-Part Forms)	Front: width 90–304.8 mm; top-glued length 70–420 mm; side-glued length 70–297 mm. Optional high-capacity feeder: width 100–297 mm; length 70–420 mm; top-glued forms. 1 original + up to 5 copies; total thickness 0.12–0.46 mm; sheet weight 40–58 g/m²
Envelopes	Front or optional high-capacity feeder: No. 6: 165 × 92 mm; No. 10: 241 × 105 mm; thickness 0.16–0.52 mm; 45–90 g/m²
Continuous Paper (Single Sheet)	Rear entry: width 101.6–304.8 mm; page length 76.2–420 mm; thickness 0.065–0.19 mm (current Malaysia page limits)
Continuous Paper (Multi-Part Forms)	Rear entry: 1 original + up to 5 copies; thickness 0.12–0.46 mm (current Malaysia page); confirm form width and page length for your installation
Continuous Forms with Labels	Rear entry: label minimum 23.8 × 63.5 mm; minimum corner radius 2.5 mm; backing width 101.6–304.8 mm; page length 76.2–558.8 mm; backing thickness 0.07–0.09 mm; total thickness 0.16–0.19 mm; label weight 64 g/m²
Input Buffer	64 KB
Options	Cut Sheet Feeder – C12C806872 Serial Interface Board-No buffer Type B – C12C824432 Ethernet 10/100 Base TX Int. Print Server – C12C824352
Acoustic Noise	Approx. 55dB (A) (ISO 7779 pattern)
Optional Interface	Type B expansion interface; confirm supplied board
Maximum Resolution	360 × 180 dpi
Rated Supply	220–240 V model: 50–60 Hz; check the supplied printer label (manual also covers a 120 V model)
Power Consumption	Approx. 42 W, ISO/IEC 10561 letter pattern
Operating Temperature	5–35 °C general; 15–25 °C for recycled paper, postcards, envelopes or labels
Operating Humidity	10–80% RH general; 30–60% RH for recycled paper, postcards, envelopes or labels; without condensation
Storage Environment	−30–60 °C; 0–85% RH, without condensation
Postcards	Front or optional high-capacity feeder: width and length 100–200 mm; thickness 0.22 mm; 192 g/m²
Roll Paper	Rear entry with optional roll holder: width 216 ± 3 mm; thickness 0.07–0.09 mm; 52–82 g/m²
Optional Feeder Capacities	Model manual capacities (optional types; confirm regional availability): High-capacity: up to 150 sheets of 82 g/m² paper (stack max 15 mm), 25 plain/bond envelopes, 30 airmail envelopes or 50 postcards. Single-bin: up to 50 sheets of 82 g/m² paper (stack max 5 mm). Feeders optional.
Overlapping Multipart Forms	LQ-680Pro only, rear entry: backing width/page length as standard continuous paper; 1 original + up to 5 copies; printable-area thickness 0.065–0.46 mm; overlapping area up to 0.70 mm; follow manual binding and overlap limits
Automatic Thickness Setting	Auto lever position on LQ-680Pro adjusts paper thickness automatically; may reduce printing speed
Continuous Paper Manual Note	The model manual combines standard and multipart paper with a 76.2–558.8 mm page length, printable-area thickness 0.065–0.46 mm, gathering area up to 0.9 mm, standard weight 52–128 g/m² and multipart sheet weight 40–58 g/m². These exceed some current Malaysia page limits; confirm the installed regional model and form before relying on the extended limits.
Paper Feed Speed	Model manual: continuous 127 mm/second; intermittent 64 msec/line at 1/6-inch spacing
Printable Area	Model manual: maximum standard printable width 269.2 mm. Single sheets/envelopes/postcards/roll: left/right margins at least 3 mm; top/bottom 0 mm, except feeder envelopes/postcards top 4.2 mm. Standard continuous paper: top/bottom perforation margins at least 4.2 mm; side margins at least 13 mm. Wider paper increases side margins. Overlapping multipart: width 266.8 mm; top 21.2 mm; sides 19 mm; bottom 4.2 mm.
Legacy Driver Listing	Malaysia page lists Windows 95 / 98 / 2000 / Me / XP / Vista / 7 / 8 / 8.1 / 10 / NT 4.0. This is a legacy published list, not a guarantee of current OS support; verify the exact driver.
Legacy Utilities	Malaysia page lists EPSON Remote! for MS-DOS and Status Monitor 3 for Windows 95 / 98 / 2000 / NT 4.0; legacy software availability and OS compatibility require confirmation.
Manual Font Pitches	Draft / Roman / Sans Serif / Courier: 10, 12, 15 cpi (Roman and Sans Serif also proportional); Prestige: 10, 12 cpi; Script / OCR-B / Orator / Orator-S: 10 cpi; Script C: proportional. Scalable Roman / Sans Serif / Roman T / Sans Serif H: 10.5 pt or 8–32 pt in 2-pt steps.
Regional Feeder Notes	Malaysia options list: C12C806872 cut-sheet feeder. Manual feeder capacities describe supported feeder types and do not promise current regional availability. Second-bin feeder requires the high-capacity feeder. Malaysia page also notes regional AC adaptor set C82525; confirm whether this applies to the quoted optional accessory.
Driver Compatibility	Confirm current driver availability for your operating system and application; legacy utility compatibility varies.
Connection Guidance	Ethernet requires a compatible optional Type B network interface; it is not built-in. USB is not listed as a standard interface.
Paper and Installation Guidance	The Auto paper-thickness setting is an LQ-680Pro feature. Confirm the required interface board and feeder separately; diagrams do not mean optional accessories are included.
Reliability Rating Context	MTBF is a statistical rating at the stated duty cycle, not a warranty or uninterrupted-service guarantee.
Driver Installation	Check the exact model, interface, operating system edition and application requirements before installation.
