Description
- Print speed: 20 mm/sec at 180 dpi resolution
- Tape compatibility: TZe tape from 6 mm up to 12 mm width
- Display: 16-character by 1-line graphical LCD with print preview
- Keyboard: Rubber QWERTY layout
- Built-in symbols: 200 electrical, datacom, AV, security, and safety symbols
- Internal memory: 9 file locations and buffer for up to 720 characters
- Power source: AD-24ES AC adapter included, or 6 AAA batteries
Dedicated Identification Keys

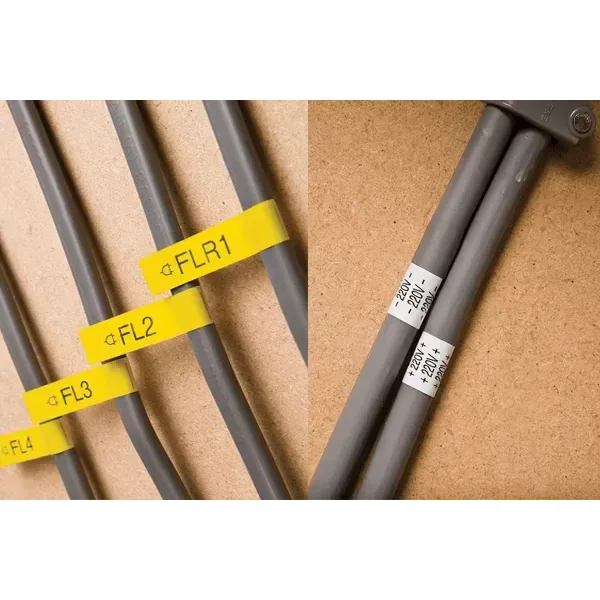

The Brother PT-E110VP is a handheld electronic labeller designed for electrical, datacom, and on-site marking tasks. Dedicated hotkeys configure specialised formats, including cable flags, cable wraps, patch panel strips, equipment labels, and faceplate IDs. An integrated serialise function prints numerical or alphabetical sequences automatically.
Display and Keyboard Layout
Data entry is performed via a rubber QWERTY keyboard. The single-line graphical LCD displays 15 working characters alongside system indicators, enabling users to preview text before cutting with the manual cutter. The unit retains up to nine files within internal memory and supports repeat copy printing from one to 50 copies.
Media and Output Specifications
Operating at speeds up to 20 mm per second, the labeller prints at 180 dpi on Brother TZe tape. The device supports tape widths up to 12 mm, accommodating one to three lines of print on 12 mm tape, and one to two lines on 6 mm or 9 mm tape.
Portability and In-the-Box Accessories
Weighing 0.4 kg with dimensions of 110 mm by 58 mm by 204 mm, the portable unit operates via the supplied AD-24ES AC adapter or six AAA alkaline or Ni-MH batteries. The complete VP package includes a hard carrying case, the labeller, an AC adapter, user guide, and a 9 mm Flexible-ID black-on-white tape cassette.
