Description
- Maximum tape width: 18mm (maximum print width 15.8mm)
- Print speed: Up to 20mm/sec on battery or USB-PD adapter
- Print resolution: 180 dpi (112 dots)
- Connectivity: Bluetooth Classic (SPP) and USB 2.0 Type-C
- Supported media: TZe laminated tape, HGe tape, and HSe heat-shrink tubes
- Power source: Rechargeable lithium-ion battery or optional USB-PD adapter
Electrical and Datacom Labelling

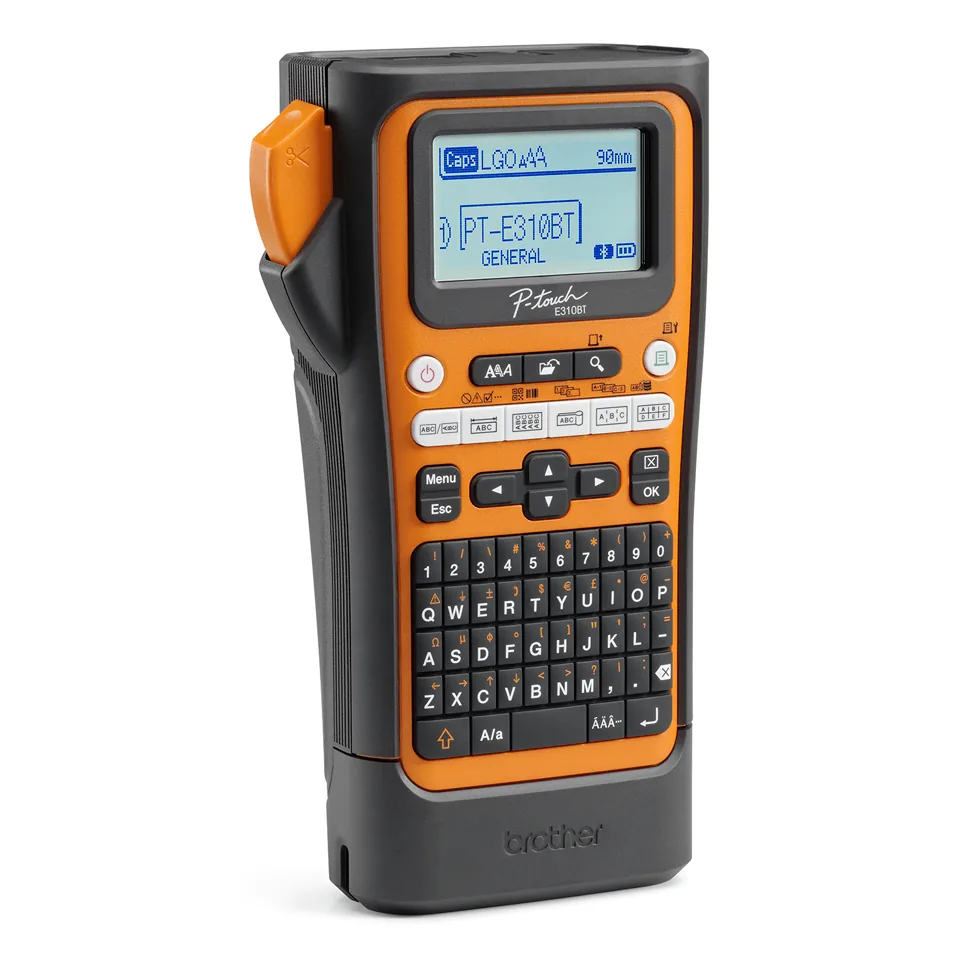

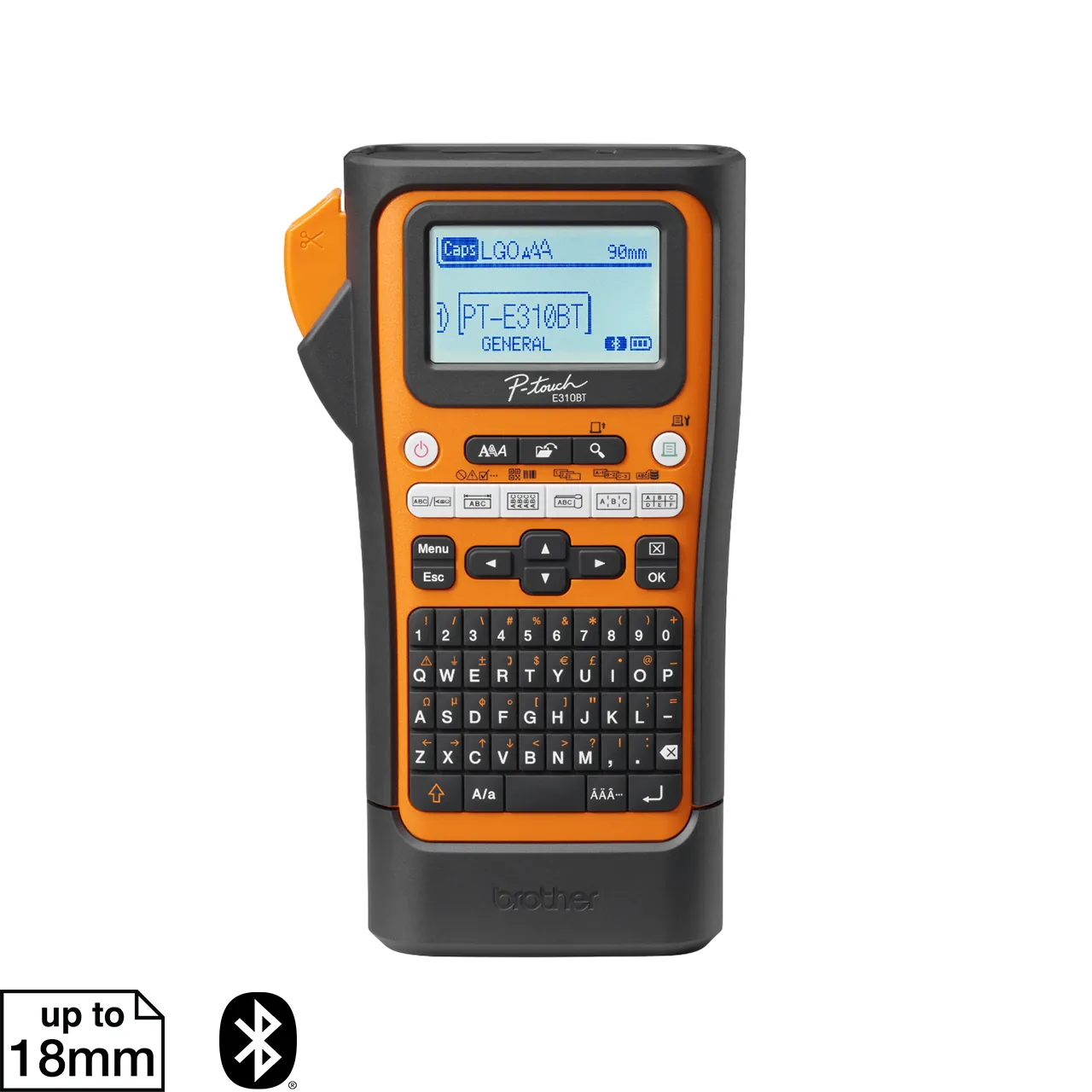

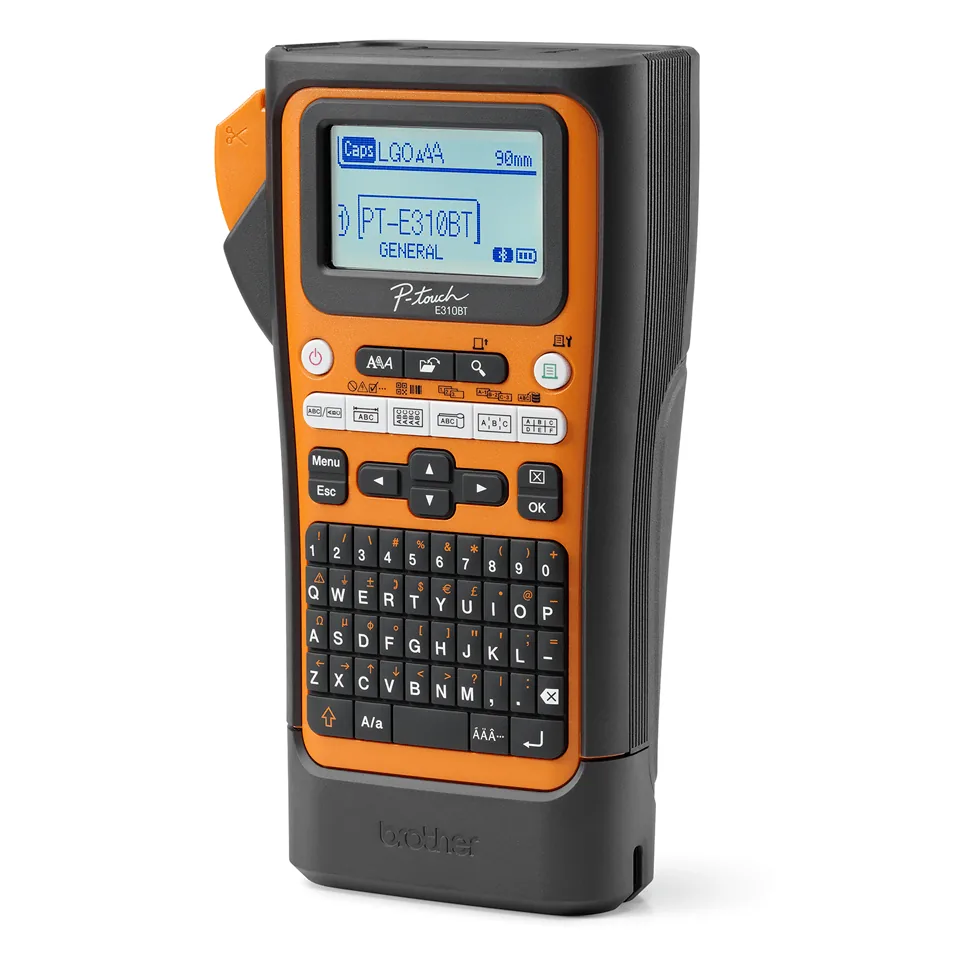

The Brother PT-E310BTVP provides dedicated function keys configured for electrical, network, and communication cabling tasks. The machine generates standard 1D barcodes, 2D QR codes, standard serialisation, and advanced serialised sequences without requiring an external computer.
Mobile and Computer Connectivity
Built-in Bluetooth Classic with SPP support enables wireless pairing with mobile devices running the Pro Label Tool app. For desktop label formatting, a full-speed USB 2.0 Type-C interface connects the printer directly to laptops and computers running Brother P-touch Editor software.
Media Versatility and Print Output
The print mechanism delivers 180 dpi resolution at speeds up to 20mm per second on both battery and mains adapter power. It accepts TZe and HGe tape cassettes from 3.5mm to 18mm widths, alongside HSe heat-shrink tubes with a 3:1 shrink ratio in 5.2mm, 9.0mm, and 11.2mm diameters. Print capacity ranges from a single line on 3.5mm tape up to five lines on 18mm supplies, with an internal library of 684 characters and 476 symbols.
Hardware and Operational Controls
A rubber QWERTY keyboard with numeric keys pairs with a monochrome LCD display showing 16 characters across three lines. An industrial manual cutter incorporates a cut-and-pause function to minimise tape wastage between print jobs. Internal flash memory provides storage capacity for up to 99 custom label files.
Package Contents and Warranty
The complete bundle includes a rechargeable lithium-ion battery pack (BA-E001), a one-metre black USB Type-C charging cable, an 8-metre cassette of 18mm black-on-yellow strong adhesive tape (TZe-S641), documentation, and a protective carrying case. The hardware carries a 2 years carry-in warranty.
