Description
- Print resolution: 180 dpi standard, up to 180 × 360 dpi in high resolution mode
- Print speed: 20 mm per second
- Tape compatibility: TZe laminated tape and ribbon tape
- Tape widths: 3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm, and 24 mm
- Interfaces: USB and Bluetooth Classic with SPP profile
- Power source: Built-in rechargeable Li-ion battery (PA-BT-005)
- Cutter: Automatic tape cutter
Computer and mobile connectivity
The printer interfaces with Windows and macOS personal computers via USB for label layout work in P-touch Editor. It also connects to Android and iOS mobile devices over Bluetooth Classic using the SPP profile. Users can design labels and view print previews through the Brother Design&Print, Design&Print 2, and iPrint&Label mobile applications.
Media handling and print performance
The device outputs at 20 mm per second with a base resolution of 180 dpi, extending to 180 × 360 dpi in high resolution mode. It supports TZe tape widths of 3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm, and 24 mm. Printable lengths range from 30 mm to 499 mm for standard labels and up to 299 mm for ribbon tape.
Integrated hardware and portability

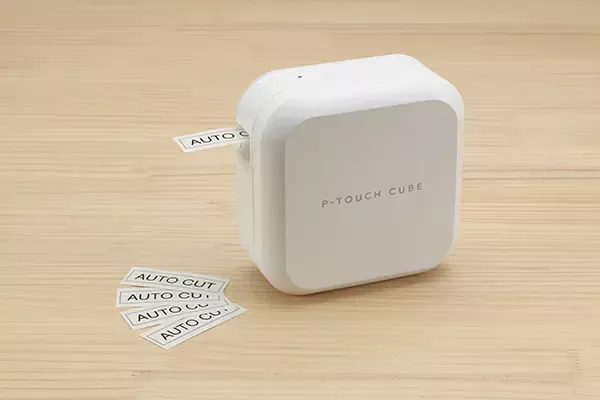

An internal automatic cutter separates finished print jobs cleanly without manual intervention. The machine is powered by a rechargeable PA-BT-005 lithium-ion battery, supporting portable operation without a dedicated mains power outlet. Physical dimensions measure 128 mm in width, 67 mm in depth, and 128 mm in height.
Box contents and warranty coverage
Shipped items include the PT-P710BT Cube Plus label printer, a rechargeable PA-BT-005 lithium-ion battery, a USB cable, and one TZe-251 24 mm black-on-white laminated starter tape cassette. Hardware protection is backed by a 2 years carry-in warranty.
