Description
- Maximum tape width: 24 mm (TZe tape)
- Print speed: up to 30 mm/s (AC adapter) or 20 mm/s (Li-ion battery)
- Print resolution: 180 dpi (up to 180 x 360 dpi)
- Tape cutter: Automatic full and half cutter
- Connectivity: USB, Wi-Fi (802.11 b/g/n), Wireless Direct, NFC
- Power sources: AC adapter, rechargeable Li-ion battery, or 6 AA batteries
Connectivity and Software Integration

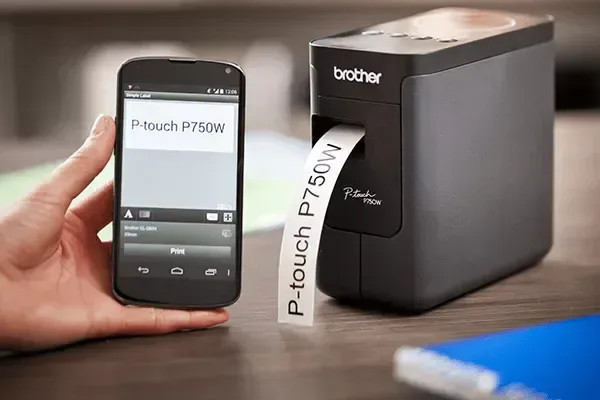

The Brother PT-P750W connects to computers via USB or local wireless network interfaces, alongside Wireless Direct and Near Field Communication (NFC). Built-in P-touch Editor Lite software launches from a USB-connected computer without requiring printer driver installation. Mobile devices can design and print labels over wireless connections using the Brother iPrint&Label application.
Media Handling and Cutting Mechanism
The machine uses Brother TZe tape cartridges in widths up to 24 mm, delivering a maximum print height of 18.0 mm. An integrated automatic tape cutter provides both full-cut and half-cut operations for sequential label runs, keeping labels organised on a continuous backing strip.
Print Features and Power System
Built-in print capabilities include barcode printing, database printing, vertical layout printing, and mirror printing. Standard resolution is 180 dpi, with a maximum resolution of 180 x 360 dpi. The printer operates at up to 30 mm per second when powered by the AD-E001A AC power adapter, or up to 20 mm per second when powered by the BA-E001 rechargeable Li-ion battery. It can alternatively run on six AA batteries.
Included Accessories and Warranty
Supplied accessories comprise the PT-P750W electronic labeller, a 4-metre TZe-251 24 mm black on white tape cartridge, the AD-E001A AC power adapter, the BA-E001 rechargeable Li-ion battery, a mini USB cable, and a user guide. The unit comes with a 2 years carry-in warranty.
