Description
- Print resolution: 300 dpi
- Print speed: up to 152.4 mm per second (6 ips)
- Maximum print width: 59 mm (media width from 15 mm to 63 mm)
- Printing technology: direct thermal
- Connectivity: USB 2.0 Type-C, USB Host, 10/100BASE-TX wired LAN, and RS-232C serial support
- Command emulations: ZPL II, EPL2, DPL, CPCL, ESC/P, and Raster
- Memory capacity: 256 MB RAM and 64 MB Flash
Resolution and Output Performance

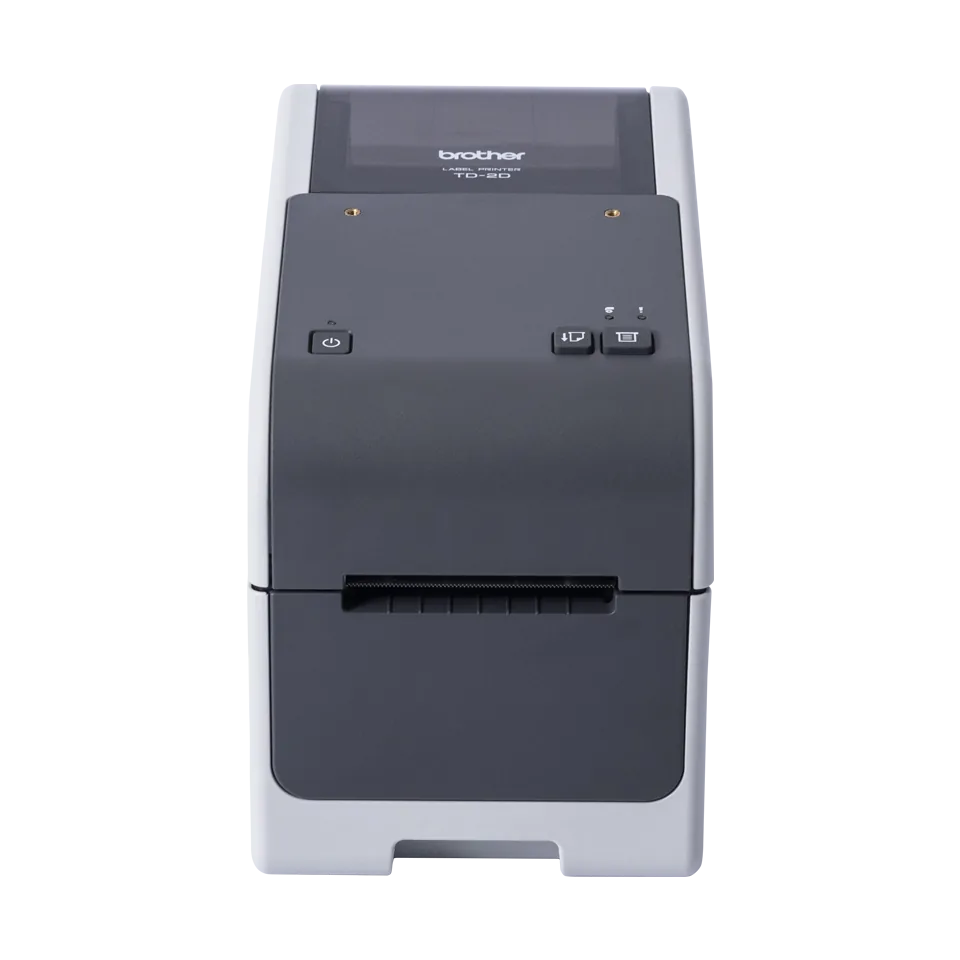

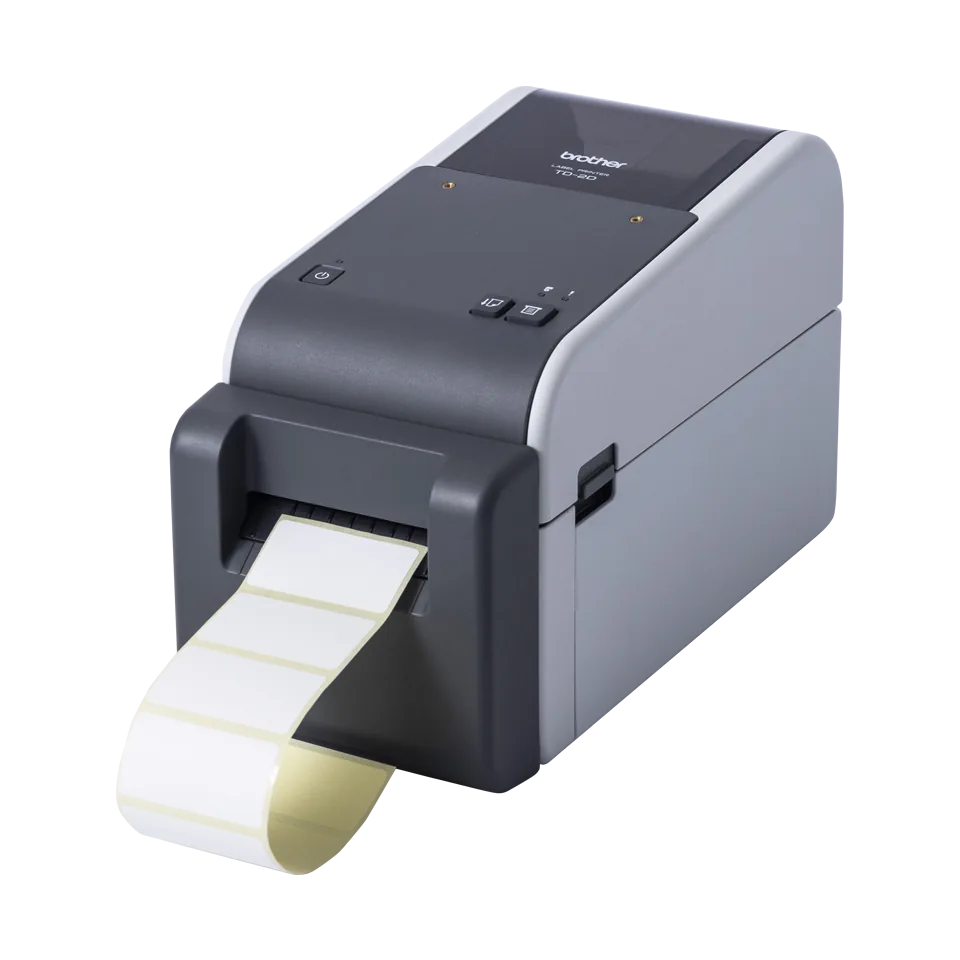

The Brother TD-2320D produces direct thermal output at a resolution of 300 dpi with print speeds reaching up to 152.4 mm per second. It supports print widths up to 59 mm and roll diameters up to 127 mm across a media width range of 15 mm to 63 mm. The unit handles diverse media formats including die-cut labels, continuous rolls, fanfold sheets, perforated tags, and wristbands.
Integration and Emulation Support
Built-in printer language emulations include ZPL II, EPL2, DPL, CPCL, ESC/P, and Raster, enabling standard deployment into existing warehouse, manufacturing, or healthcare systems. The printer connects to local infrastructure through USB 2.0 Type-C and 10/100BASE-TX wired Ethernet, with RS-232C serial available using an optional cable. A dedicated USB host port accommodates peripheral devices such as external barcode scanners or weighing scales.

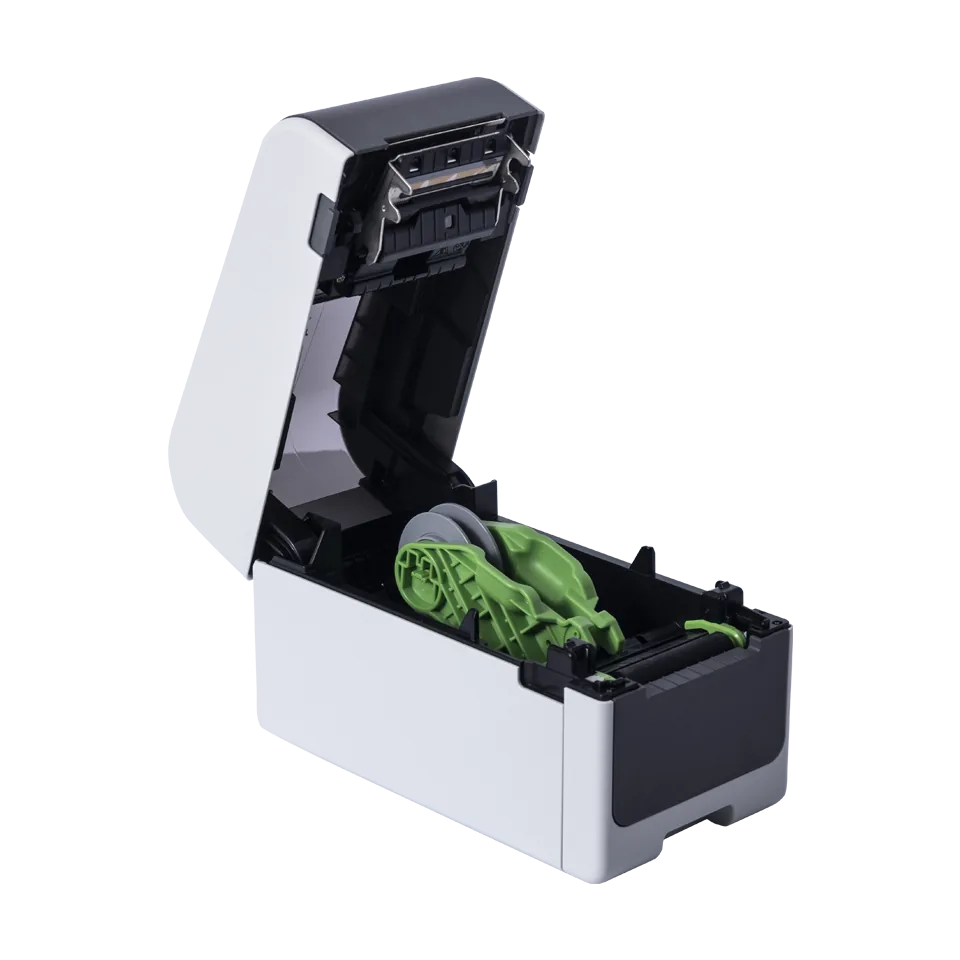

Media Handling and Physical Design

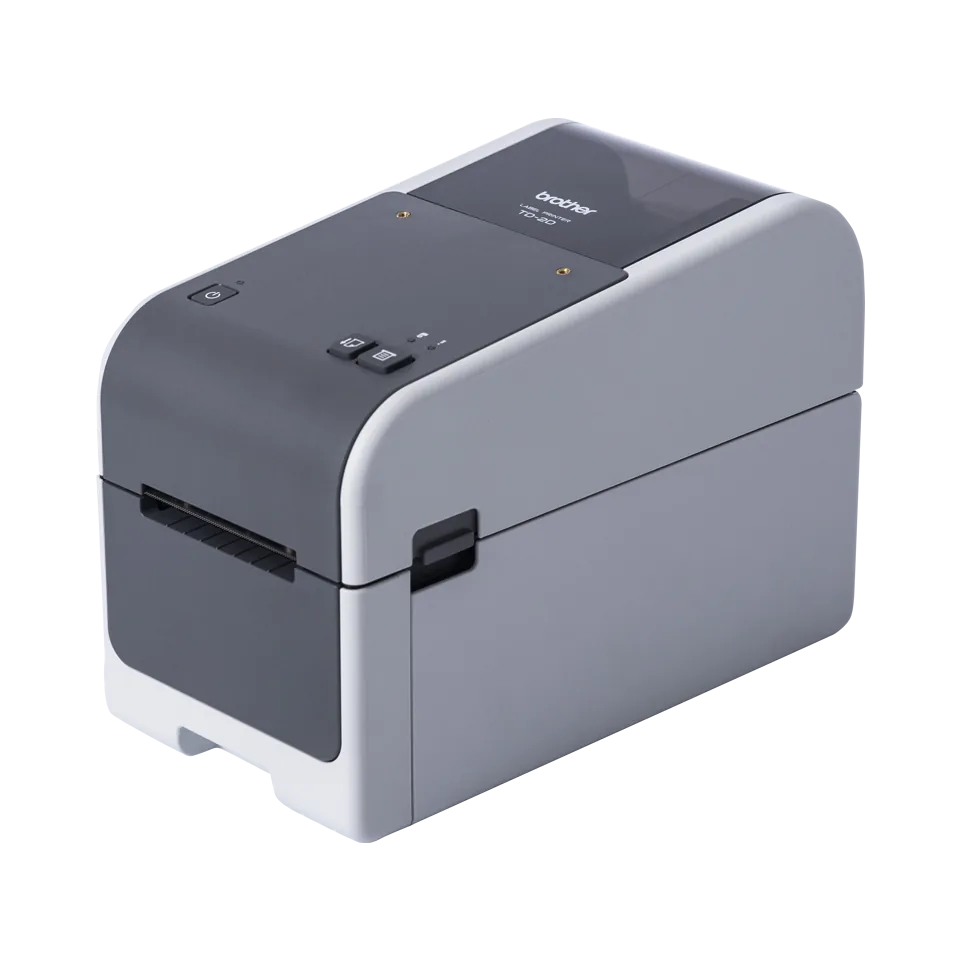

A drop-in spindle-less compartment simplifies roll replacements for media thicknesses between 0.058 mm and 0.279 mm. Measuring 119 mm wide, 224 mm deep, and 158 mm high, the compact chassis occupies minimal desk space and weighs approximately 1.50 kg. The machine operates in ambient temperatures between 5°C and 40°C.
Included Accessories and Warranty
Supplied accessories comprise the printer unit, an AC adapter, an AC power cord, a USB cable, and product documentation. Hardware coverage is provided by a 2-year limited carry-in warranty that includes the print head.
