Description
- Print resolution: 300 dpi
- Print speed: Up to 152.4 mm/s (6 ips)
- Maximum print width: 59 mm
- Display: 3.5-inch colour touch screen with keyboard
- Connectivity: USB Type-C, USB Host, 10/100 Ethernet, optional serial
- Supported media: Wristbands, continuous, die-cut, fanfold, perforated, tags
Standalone Operation

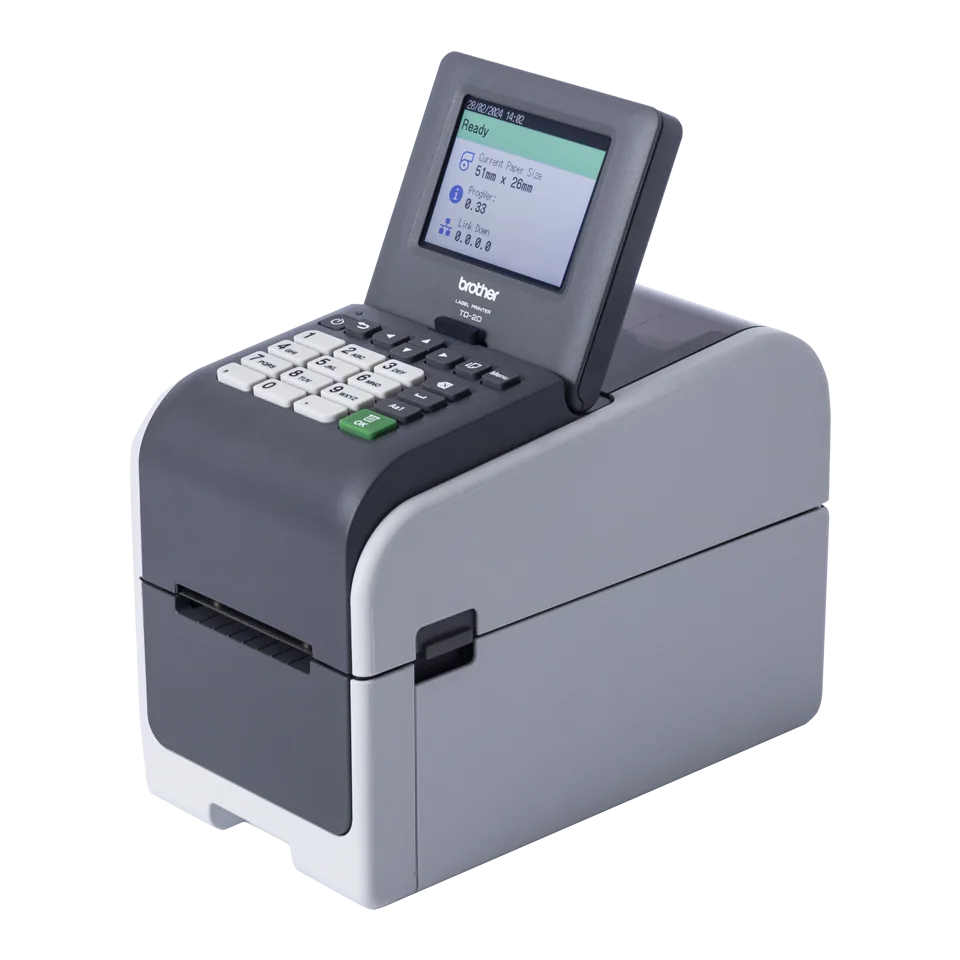

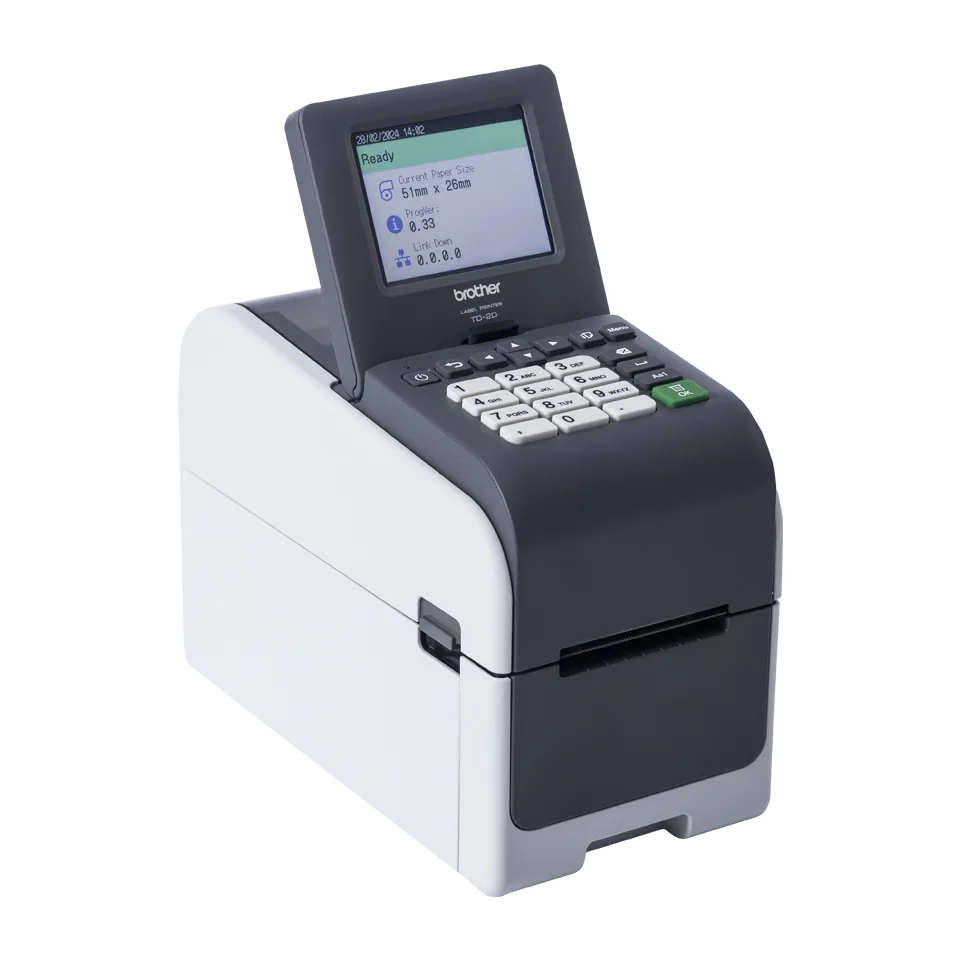

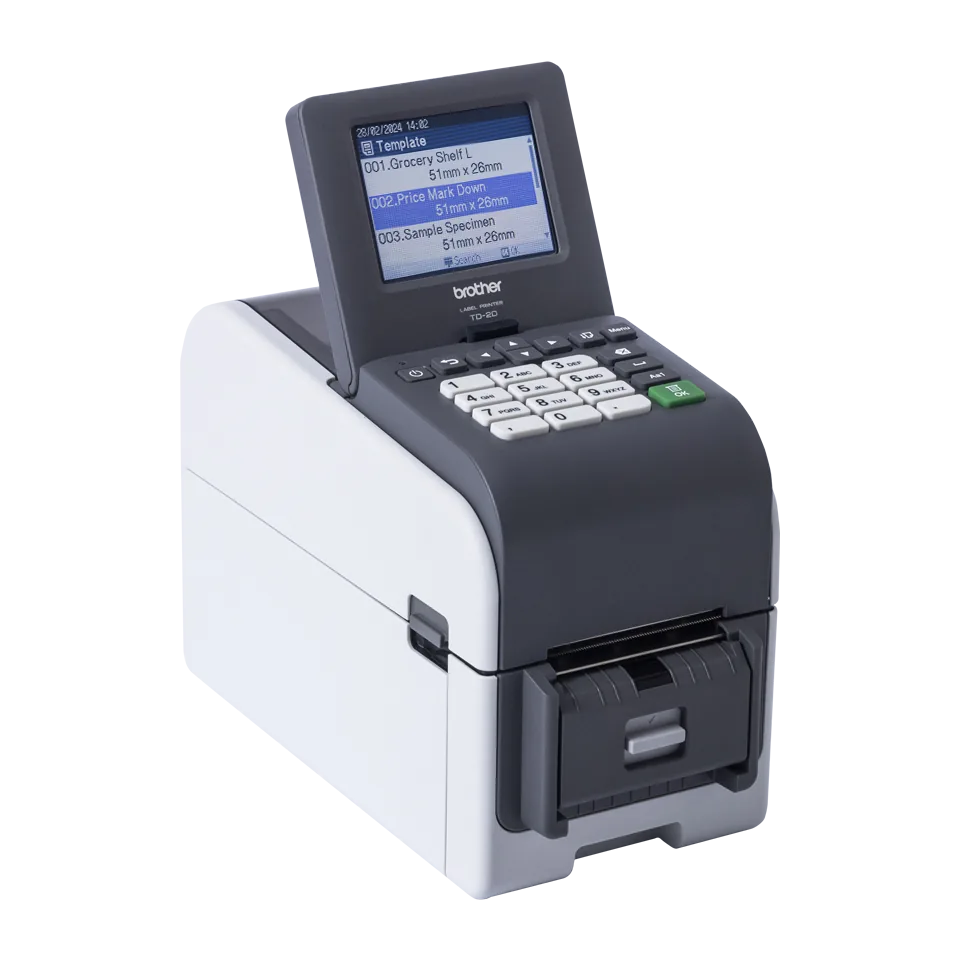

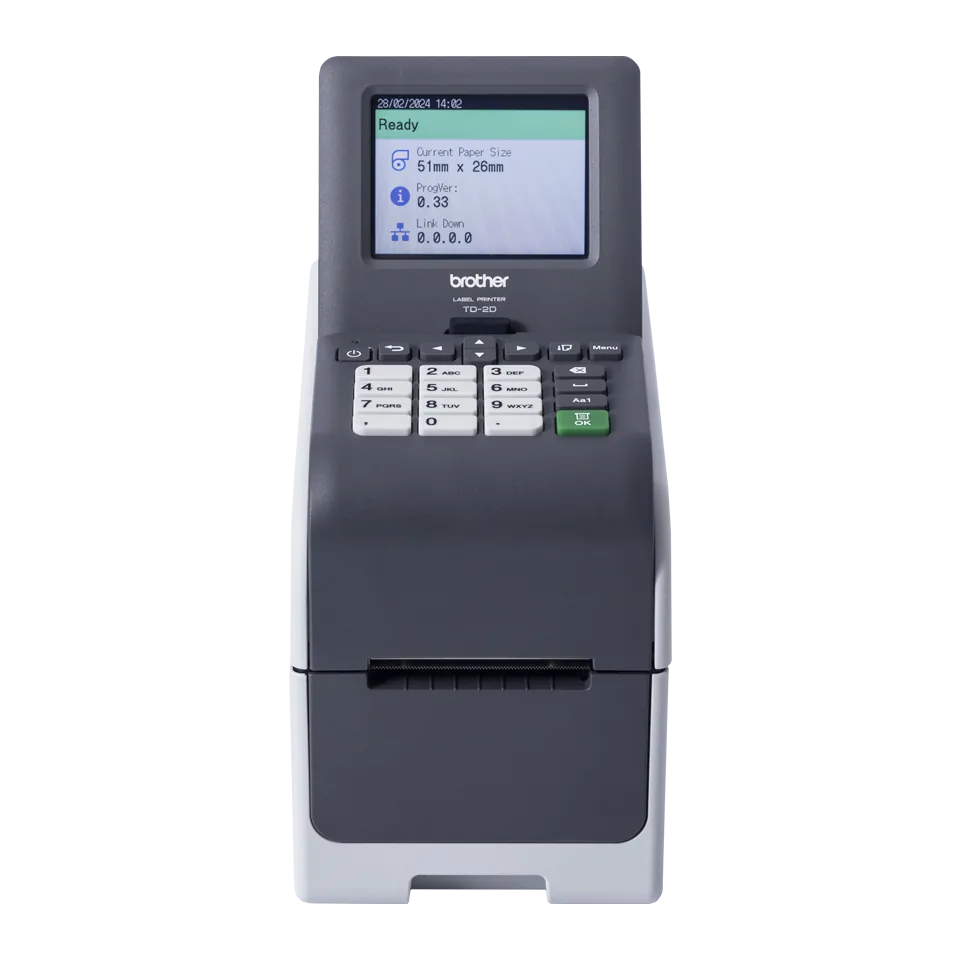

The Brother TD-2320DSA features an integrated 3.5-inch colour touch screen and input keyboard. This configuration allows operators to select stored templates and input variable data directly at the workstation without requiring an attached personal computer.
Print Specifications and Media Handling
Using direct thermal technology, the unit produces output at 300 dpi resolution with print speeds reaching up to 152.4 mm per second. It supports media widths between 15 mm and 63 mm, with a maximum printable width of 59 mm and a maximum print length of 3000 mm. The media compartment accommodates rolls up to 127 mm in outer diameter and media thicknesses from 0.058 mm to 0.279 mm, covering die-cut labels, tags, wristbands, and continuous receipt rolls.
Connectivity and System Integration
The printer includes USB 2.0 Type-C, a USB host port for attaching peripheral devices such as barcode scanners or scales, and a 10/100BASE-TX Ethernet interface for network deployment. Serial RS-232C communication is supported via an optional adapter cable. Supported command emulations include ZPL II, CPCL, ESC/P, P-touch Template, and Raster, with driver compatibility across Microsoft Windows, Windows Server, and Linux operating systems.
Memory and Symbology Support
Equipped with 256 MB RAM and 64 MB Flash memory, the printer processes linear and two-dimensional symbologies, including QR Code, PDF417, and DataMatrix. Operating temperature parameters range from 5°C to 40°C.
Physical Dimensions and Package Contents
The desktop housing measures 119 mm in width, 224 mm in depth, and 176 mm in height, weighing approximately 1.77 kg. The package contains the TD-2320DSA printer, an AC adaptor, an AC power cord, a USB cable, and product documentation.
