Description

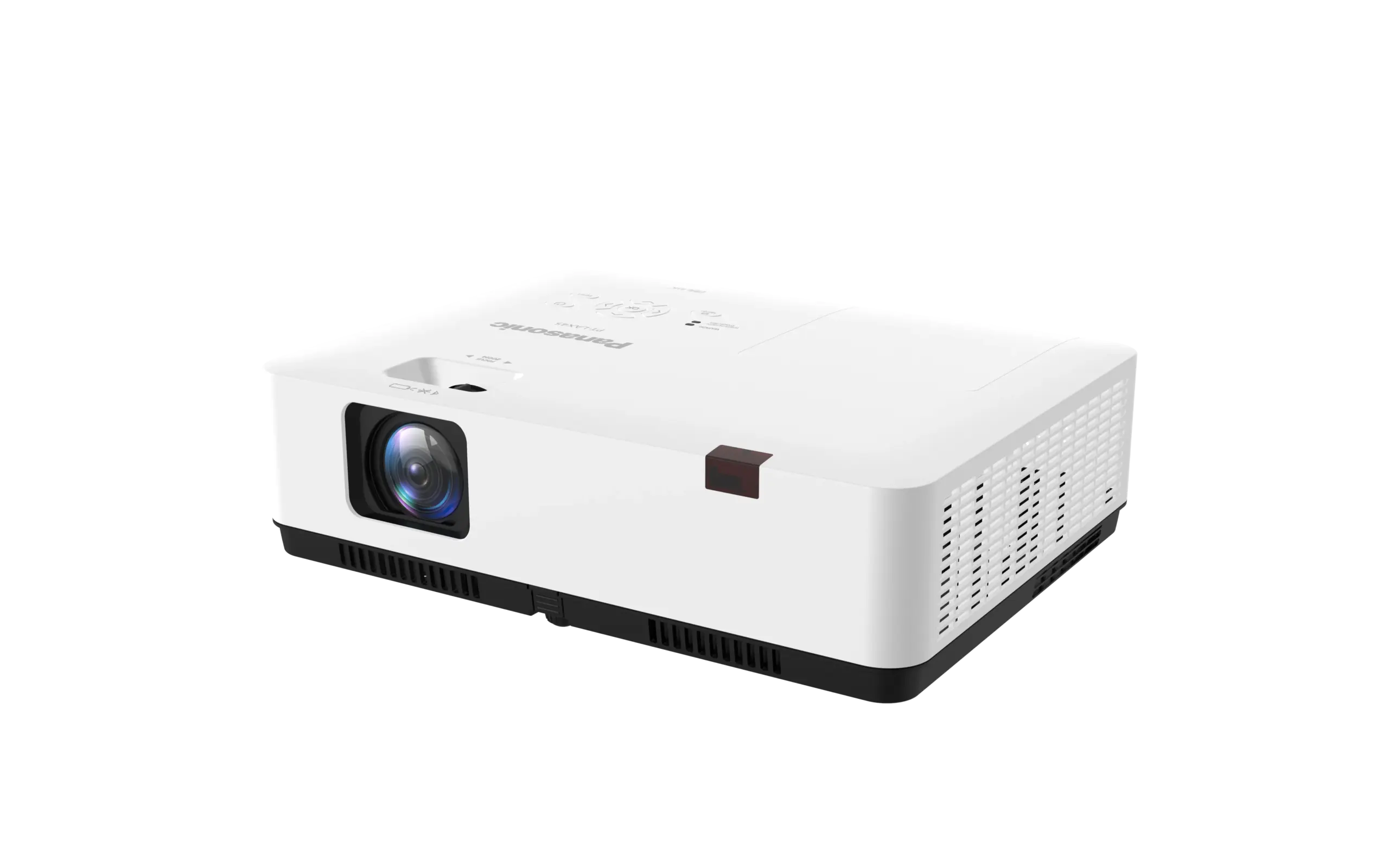

The Panasonic PT-LAX40 is an LCD projector with XGA resolution, 3,800 lm light output and a transparent LCD panel display method for R/G/B. Its manual zoom and focus lens provides 1.2x zoom, with a stated screen size range of 0.76–7.6 m (30–299 in) at 4:3 aspect ratio.
- 3,800 lm light output
- XGA (1024 x 768 pixels) resolution
- 15,000:1 contrast ratio (typ.) (Iris: On)
- Manual 1.2x zoom and manual focus lens
- 0.76–7.6 m (30–299 in) screen size range at 4:3 aspect ratio
- Manual vertical and horizontal keystone correction of ±30 °
- LAN connection with PJLink TM (Class 1) compatibility
Connections and control
The PT-LAX40 has HDMI IN, COMPUTER IN and LAN connections. HDMI IN is HDCP and Deep Color compatible. The USB Type-A connection is for Memory Viewer or an optional wireless module, while SERIAL IN supports external control with RS-232C compatibility.
Installation and operation
The projector supports ceiling or floor installation and front or rear installation. It has a built-in 5 W monaural speaker. Operation noise is stated as 39 dB [NORMAL] and 35 dB [ECO].
Lamp cycle and physical details
The stated lamp replacement cycle is 10,000 hours in NORMAL mode and 20,000 hours in ECO mode. The lamp replacement cycle is a maximum value; brightness will have decreased to 50% at that point, and the usage environment affects the lamp replacement cycle. Dimensions are 345 x 99 x 261 mm (with legs at shortest position), and stated weight is Approx. 3.1 kg.
Included items and warranty
The stated included items are an HDMI cable x 1, wireless remote control unit x 1, power cord x 1 (number and size of cords depends on region), quick start guide, and batteries for remote control (R03/LR03/AAA type x 2). Warranty: 2 years set warranty against manufacturing defects and 1,000 hrs or 1 year lamp warranty, whichever comes first, for LAX Series.
