Description

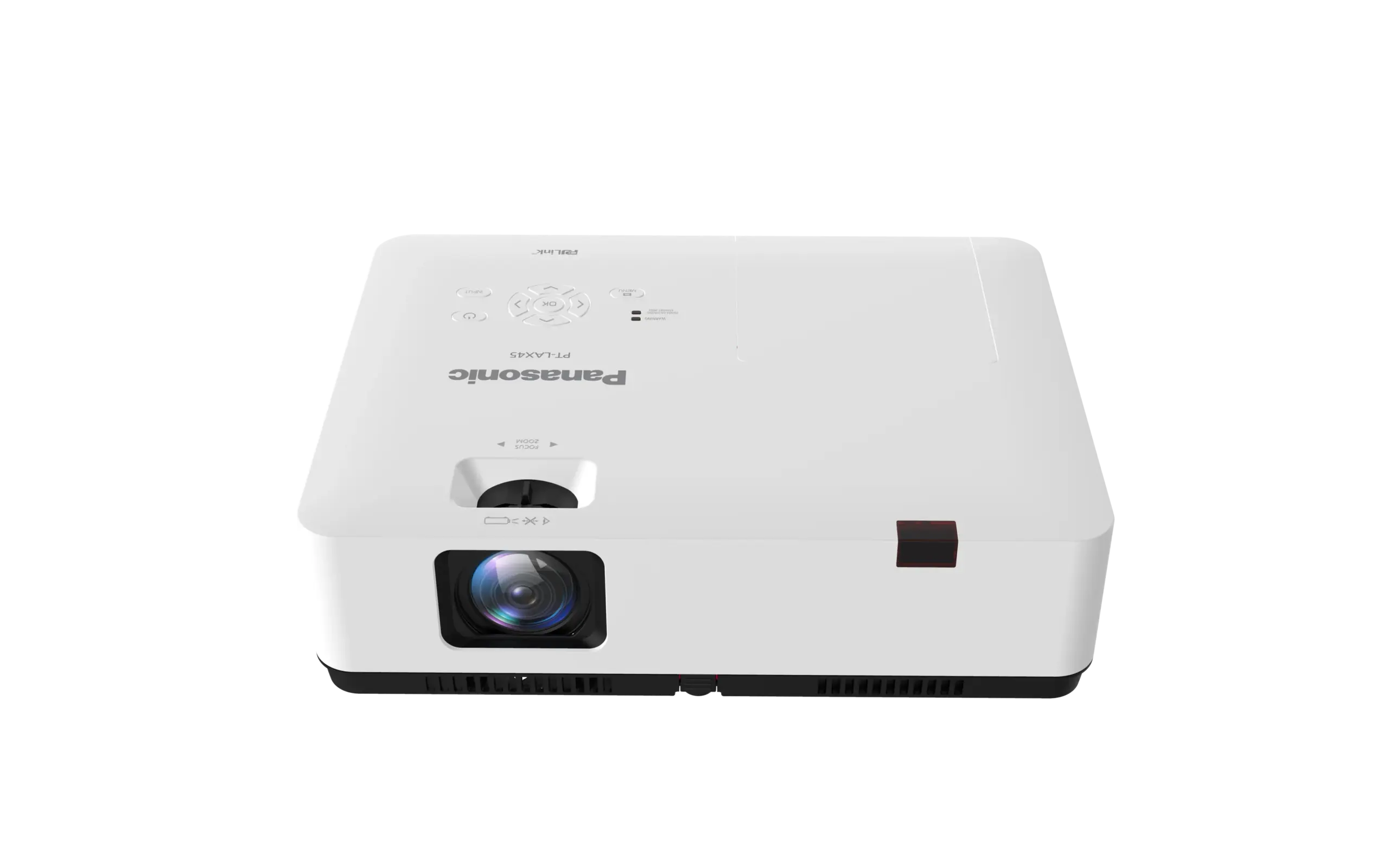

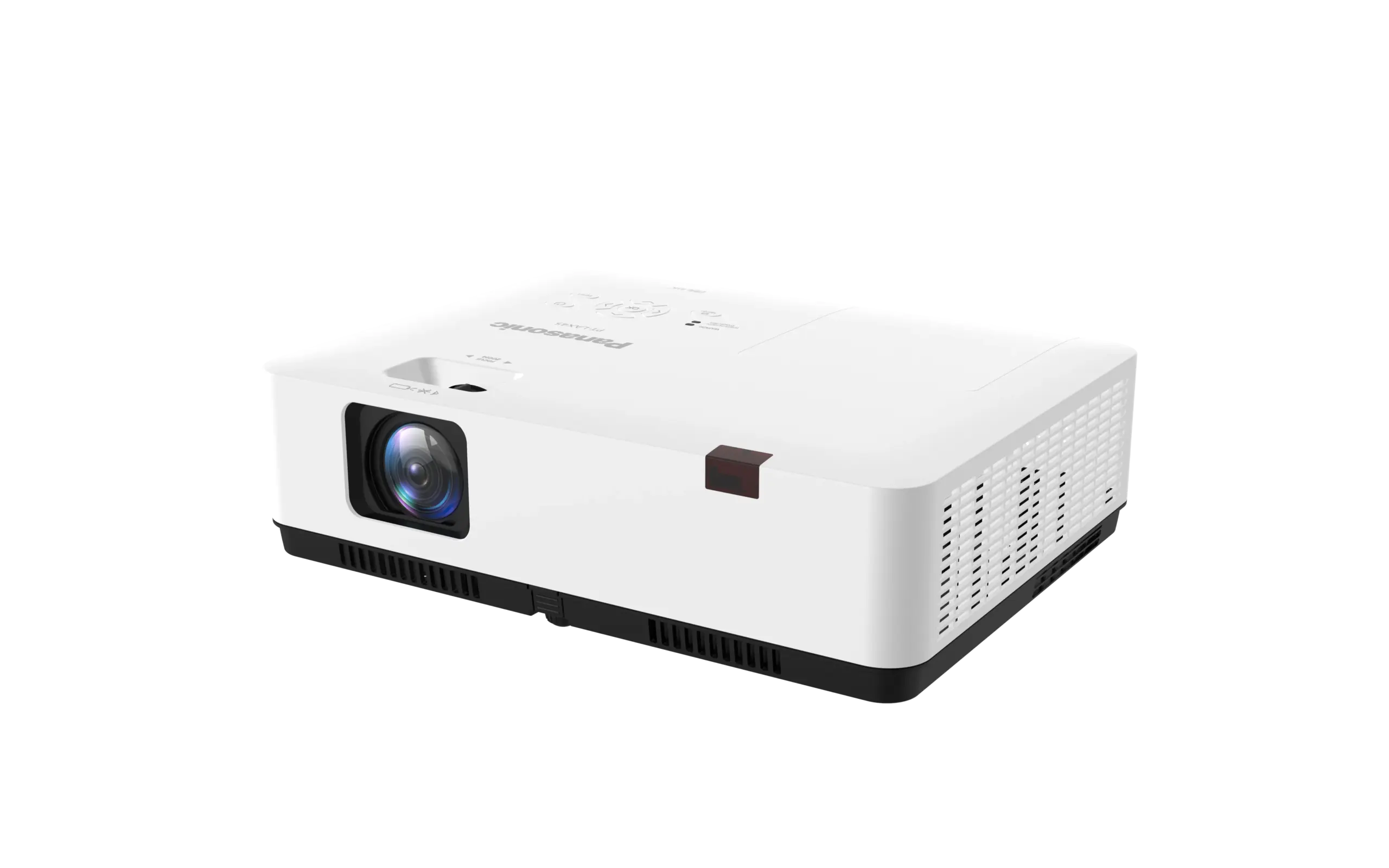

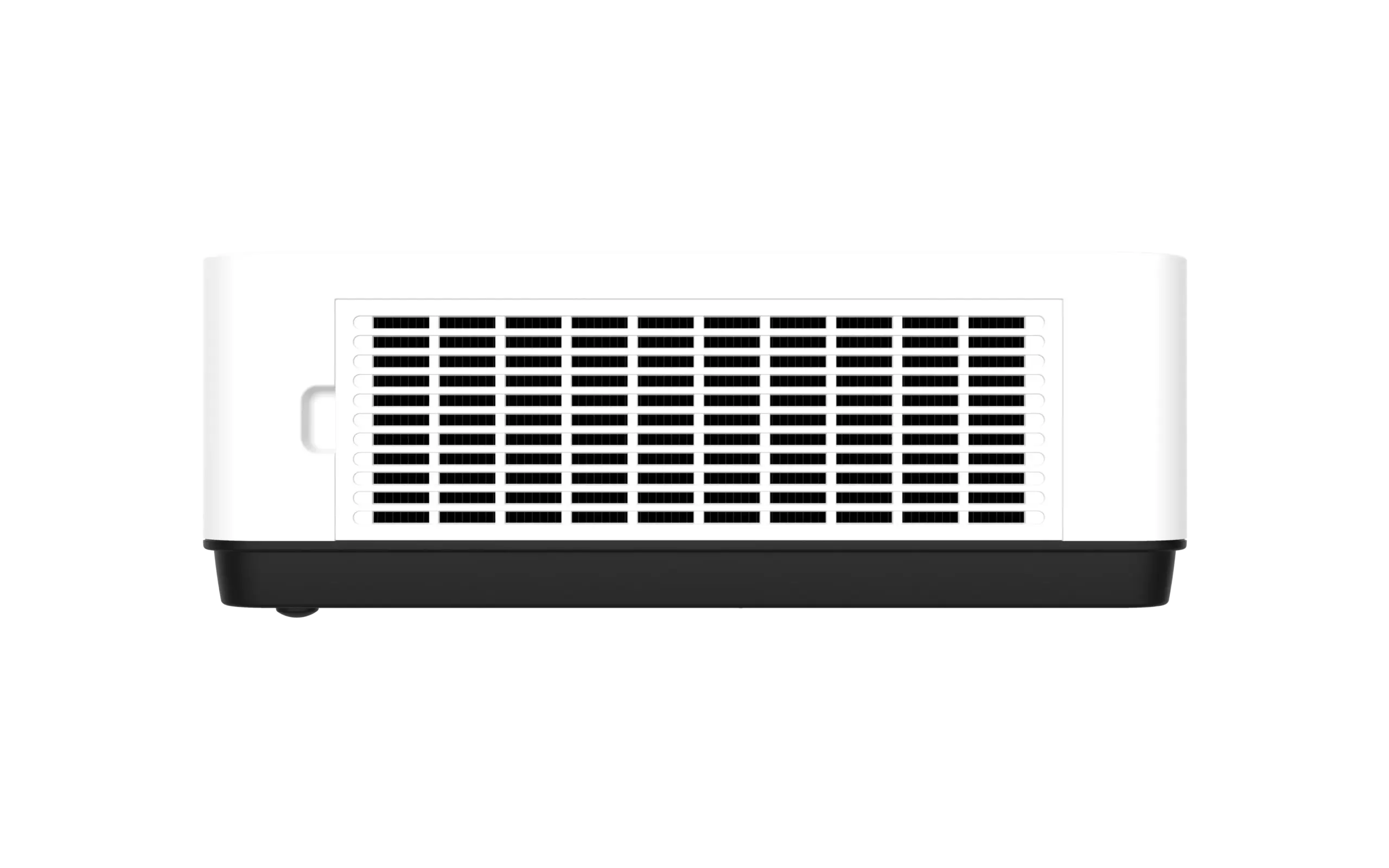

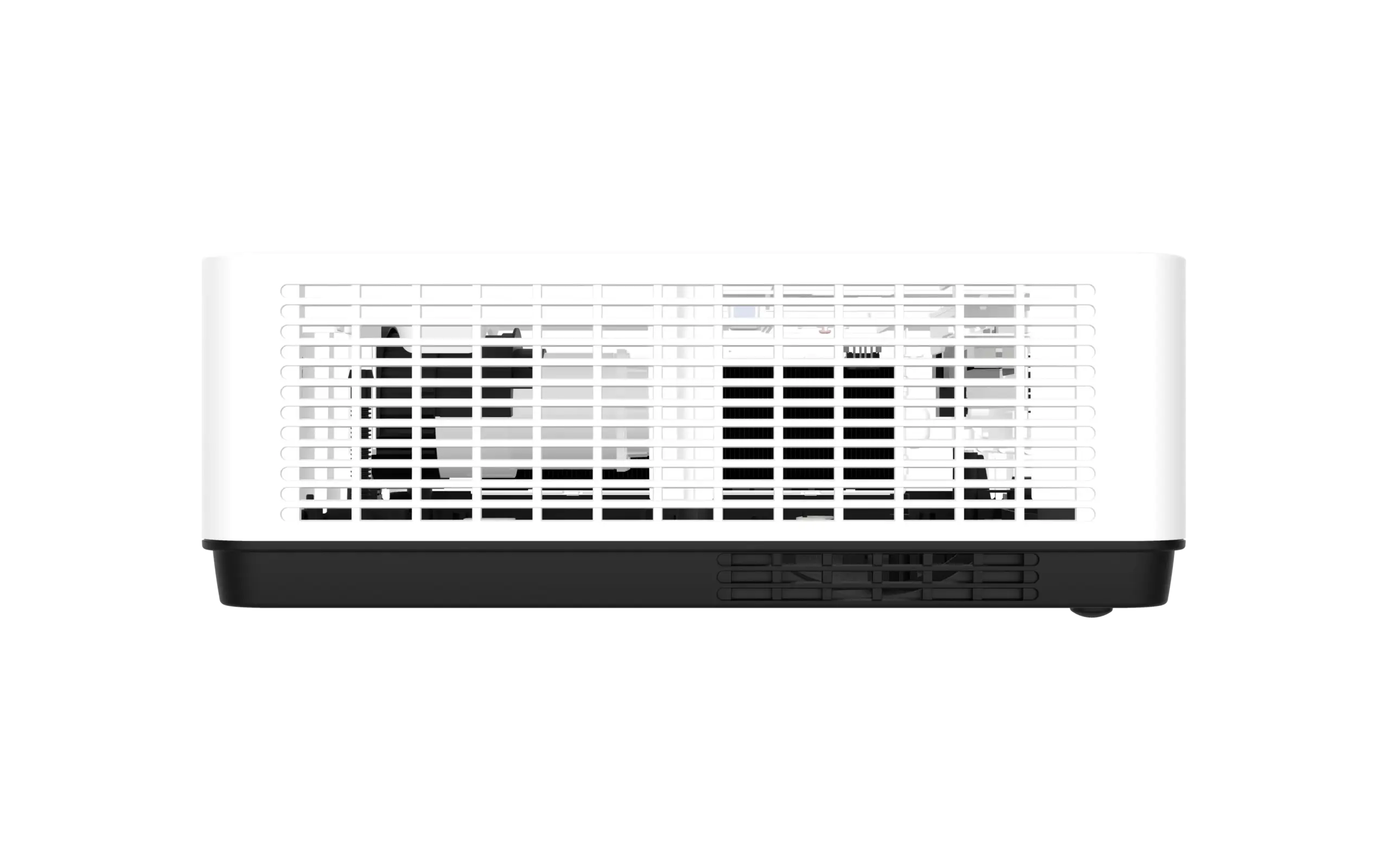

The Panasonic PT-LAX45 is an LCD projector with 4,600 lm light output and XGA resolution of 1024 x 768 pixels. It uses a transparent LCD panel display method with three R/G/B panels. The stated contrast ratio is 15,000:1 with Iris set to On.
- 4,600 lm light output
- XGA resolution: 1024 x 768 pixels
- Manual 1.2x zoom and manual focus lens
- 0.76–7.6 m screen size range at 4:3 aspect ratio
- Manual vertical and horizontal keystone correction
- LAN connection with PJLink™ (Class 1) compatibility
- HDMI, COMPUTER IN and USB Type-A connections
Image and installation
The manual zoom lens has a 1.2x zoom range. Manual vertical and horizontal keystone correction is specified at ±30 °. Installation options are ceiling or floor, with front or rear projection.
Connections and control
The HDMI input is HDCP compatible and Deep Color compatible. COMPUTER IN uses a D-sub HD 15-pin female RGB connection. The LAN port is RJ-45 for 10Base-T/100Base-TX network connection and PJLink™ (Class 1) compatibility. USB Type-A is specified for Memory Viewer and an optional wireless module.
Operating details
The built-in speaker is rated at 5 W monaural. Lamp replacement cycles are maximum values at which brightness has fallen to 50%: 10,000 hours in NORMAL mode and 20,000 hours in ECO mode. Operating noise is listed as 39 dB in NORMAL mode and 35 dB in ECO mode. Maximum power consumption is 335 W, or 235W in ECO mode.
Supplied accessories and warranty
Supplied items listed by Panasonic include an HDMI cable x 1, wireless remote control unit x 1, power cord x 1 (number and size of cords depends on region), quick start guide, and batteries for remote control. The warranty is 2 years set warranty against manufacturing defects and 1,000 hrs or 1 year lamp warranty whichever comes first for LAX Series.
