Description
- WUXGA (1920 x 1200 pixels) resolution
- 6,500 lm light output
- Laser diodes light source
- Powered zoom and powered focus
- HDMI™ x 3 with CEC support
- DIGITAL LINK and LAN connections
- Supplied lens and filter
Projection and installation

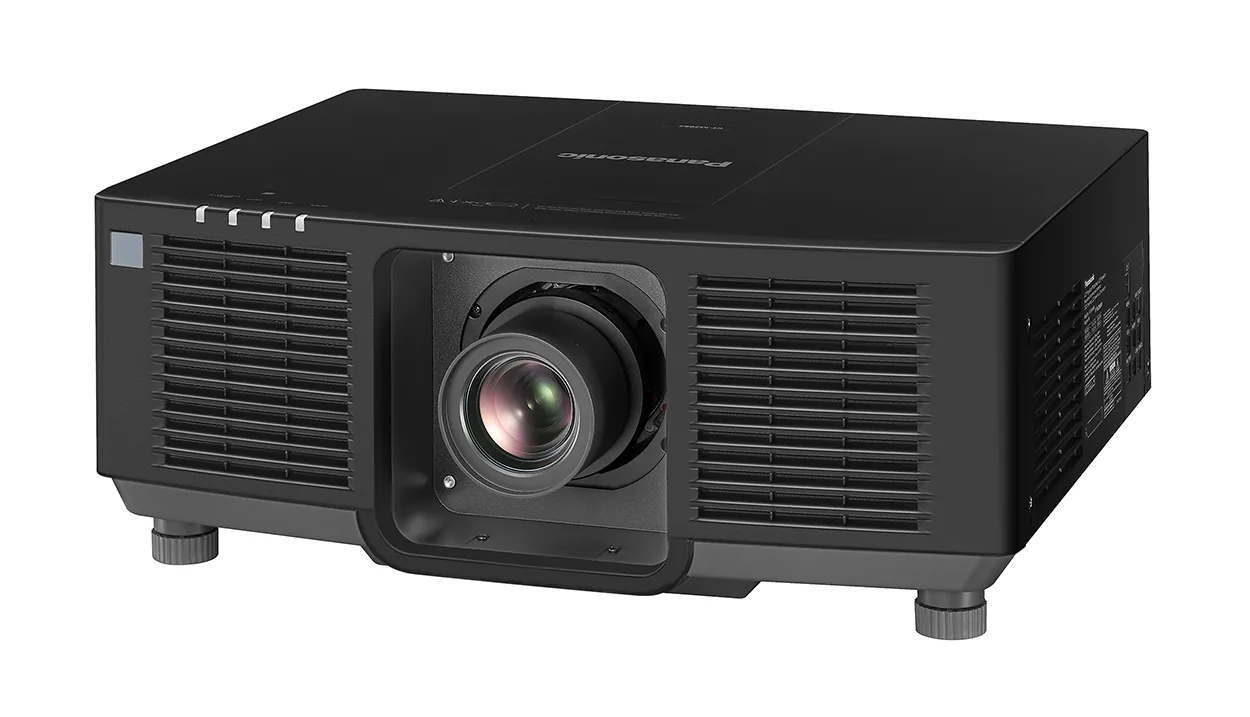

The Panasonic PT-MZ682B is an LCD projector with a laser diodes light source, WUXGA (1920 x 1200 pixels) resolution, and 6,500 lm light output. Its body colour is PT-MZ682B-Black. Listed installation modes are ceiling/floor, front/rear, and free 360-degree installation.
Lens and screen size
The supplied lens has powered zoom with a throw ratio of 1.61–2.76:1 and powered focus. The stated screen size is 1.02–10.16 m (40–400 in) at a 16:10 aspect ratio. With the ET-ELW22, the stated size is 1.52–10.16 m (60–400 in); with the ET-ELU20, it is 2.54–10.16 m (100–400 in).
Connections
The projector has HDMI™ x 3 inputs with CEC support. An RJ-45 connection provides network and DIGITAL LINK connection for video, network, and serial control, and is HDBaseT™ compliant. A separate RJ-45 LAN connection supports 10Base-T and 100Base-TX network connection.
Light source and maintenance
Time until light output declines to 50 % is stated as 20,000 hours [NORMAL], 24,000 hours [ECO], and 20,000 hours [QUIET]. Operation noise is 32 dB [NORMAL] and 25 dB [QUIET]. The estimated filter maintenance cycle is Approx. 20,000 hours.
Included items and warranty
Supplied items listed by Panasonic include a supplied lens and filter. Warranty: 3 years set warranty against manufacturing defects & 10,000 hrs whichever comes first for LASER projectors.
