Description
- 4K (3840 x 2400) with Quad Pixel Drive resolution
- 6,500 lm light output
- Laser diode light source
- 1.6x manual zoom lens with manual focus
- 0.76–7.62 m (30–300 in) screen size at 16:10 aspect ratio
- Vertical +44 % and horizontal ±20 % lens shift from center of screen
- HDMI, DIGITAL LINK, LAN, USB and serial connections
Display and lens specification

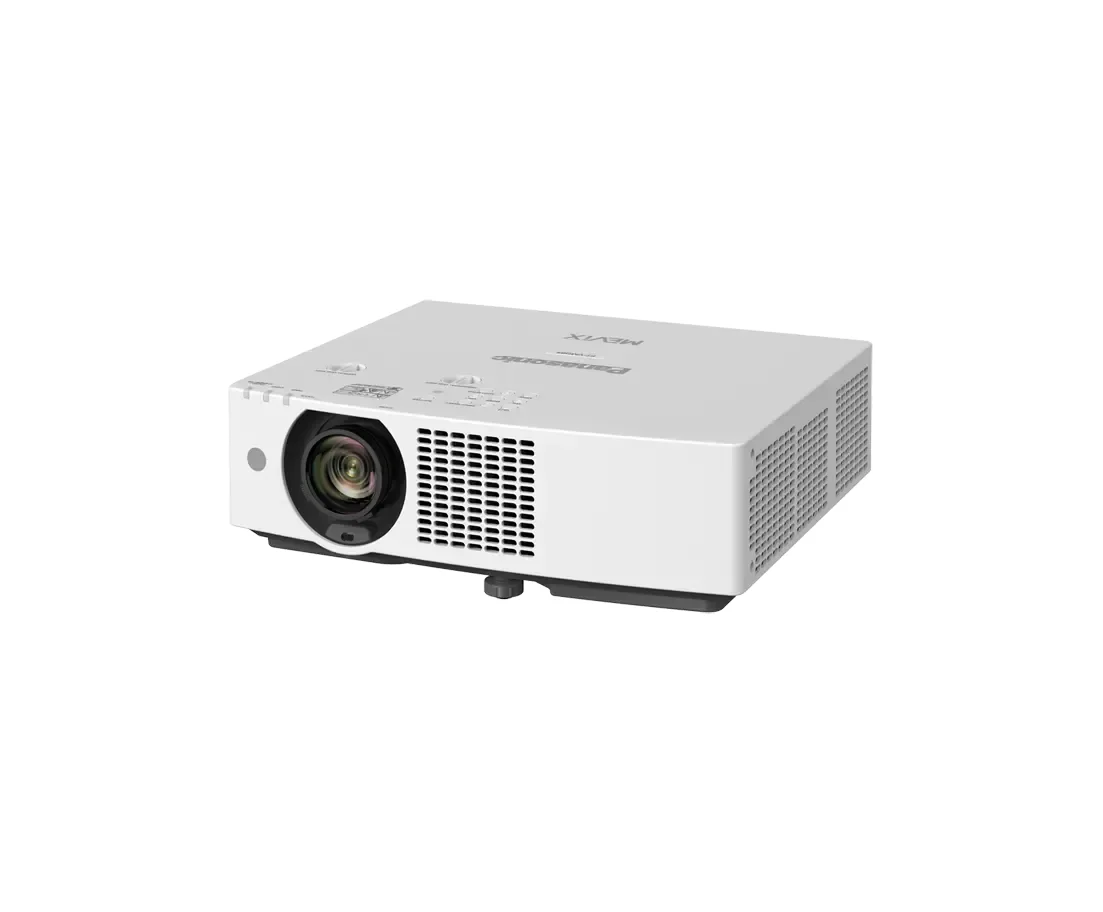

The Panasonic PT-VMQ65 is a laser projector with 4K (3840 x 2400) with Quad Pixel Drive resolution and 6,500 lm light output. Its native panel is 1920 x 1200 pixels. It uses a transparent LCD panel display method with R/G/B panels. The listed lens is a 1.6x manual zoom, manual-focus lens with a throw ratio of 1.09–1.77:1.
Positioning and screen range
The listed screen size is 0.76–7.62 m (30–300 in) at a 16:10 aspect ratio. Lens shift from center of screen is specified as +44 % vertically and ±20 % horizontally. Keystone correction is listed as vertical ±25° and horizontal ±35°.
Connections and control
HDMI IN supports HDCP, Deep Color and 4K/60p signal input. DIGITAL LINK IN / LAN supports network and DIGITAL LINK connection, is HDBaseT compliant, and accepts 4K/60p signals in YPBPR 4:2:0 format only. The separate LAN connector is listed for network control. USB Type A is specified for Memory Viewer, an optional AJ-WM50 Series Wireless Module and power supply.
Operating details and warranty
Time until light output declines to 50 % is listed as 20,000 hours in NORMAL mode, 24,000 hours in ECO mode and 20,000 hours in QUIET mode. Operation noise is listed as 35 dB in NORMAL mode, 30 dB in QUIET1 and 25 dB in QUIET2. The warranty is 3 years set warranty against manufacturing defects & 10,000 hrs whichever comes first for LASER projectors. Panasonic lists these specifications as preliminary.
