Description
- Scan speed: Up to 75 ppm/150 ipm
- Feeder capacity: Standard, 80 sheets
- Duty cycle: 7500 pages recommended daily
- Optical scan resolution: Up to 600 dpi
- Duplex scanning: Single-pass duplex
- Connectivity: Ethernet 10/100/1000 Base-T, USB 3.0, WiFi 802.11 b/g/n, WiFi Direct
Document Feeder and Paper Handling
The integrated automatic document feeder provides an input capacity of Standard, 80 sheets. It executes single-pass duplex scanning at rates up to 75 ppm/150 ipm, supporting double-sided captures in one pass. The unit handles paper sizes from a minimum of 50.8 x 50.8 mm up to a maximum ADF scan size of 216 x 3100 mm. It includes HP EveryPage, an ultrasonic sensor, and folio mode for simplified A3 scanning.
Optical Resolution and Sensor Specifications
Scanning is driven by CMOS CIS (Contact Image Sensor) technology with an optical scan resolution of up to 600 dpi. Bit depth is 24-bit external and 48-bit internal. For system integration and workflow automation, the device includes driver support for TWAIN and ISIS® standards.
Connectivity, Network Management, and Dimensions

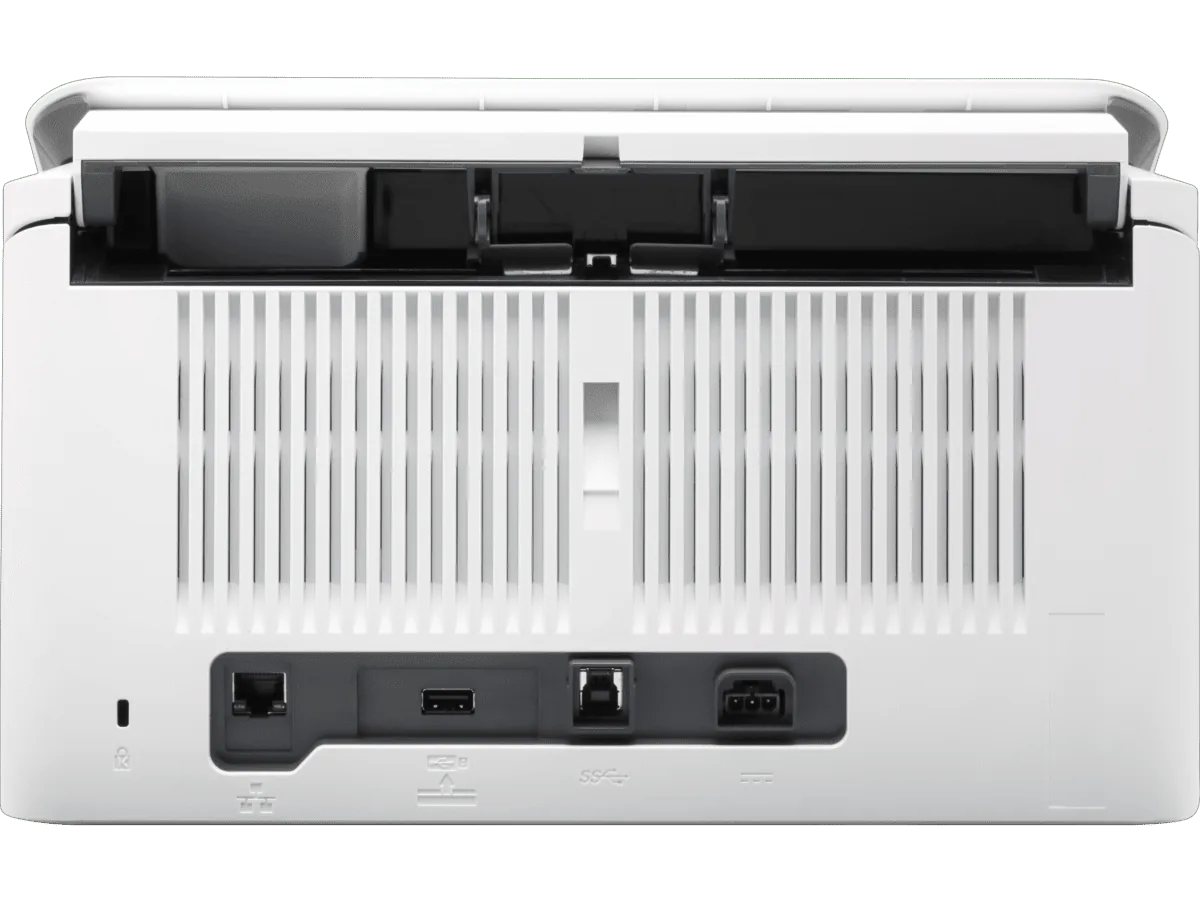

Standard connectivity options include Ethernet 10/100/1000 Base-T, USB 3.0, WiFi 802.11 b/g/n, and WiFi Direct. It supports HP Web Jetadmin remote discovery and monitoring. Without a stand, the unit has dimensions of 310 x 198 x 190 mm and a weight of 4.0 kg. The recommended daily duty cycle is 7500 pages.
Package Contents and Warranty
The retail box contains the Scanner Engine, power adapter, power cord, USB cable, install guide, and flyers. Warranty coverage is provided as 1 Year 3-5 WD Exchange as recorded in the equipment pricelist.
