Description
- 4K (3840 x 2400) with Quad Pixel Drive
- 12,000 lm (ANSI) light output
- 12,400 lm (Center) light output
- Laser diode light source
- Powered zoom and powered focus
- HDMI™ x 2 and DisplayPort™ x 1
- Intel® SDM standard-compatible open slot
Display and lens

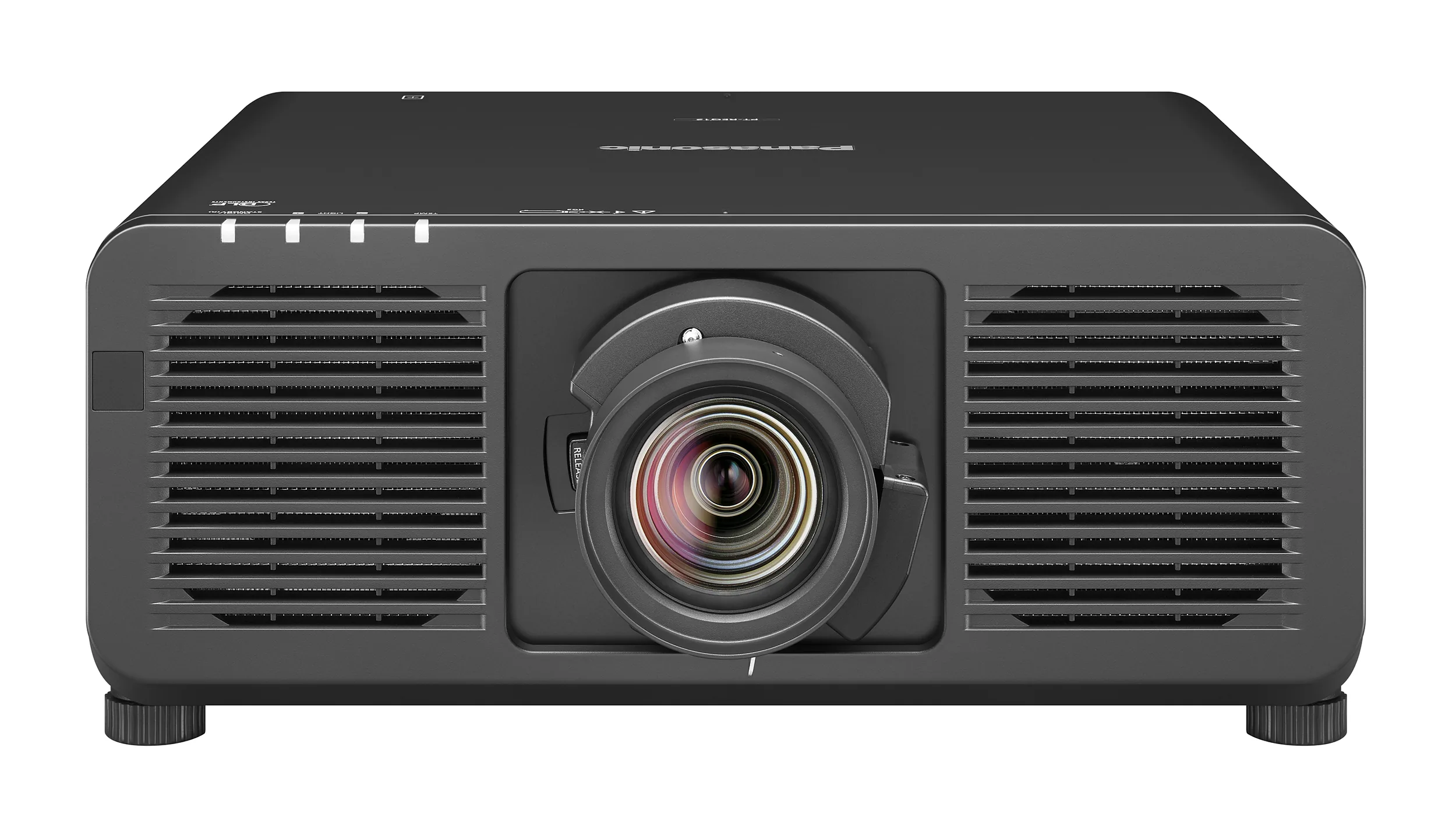

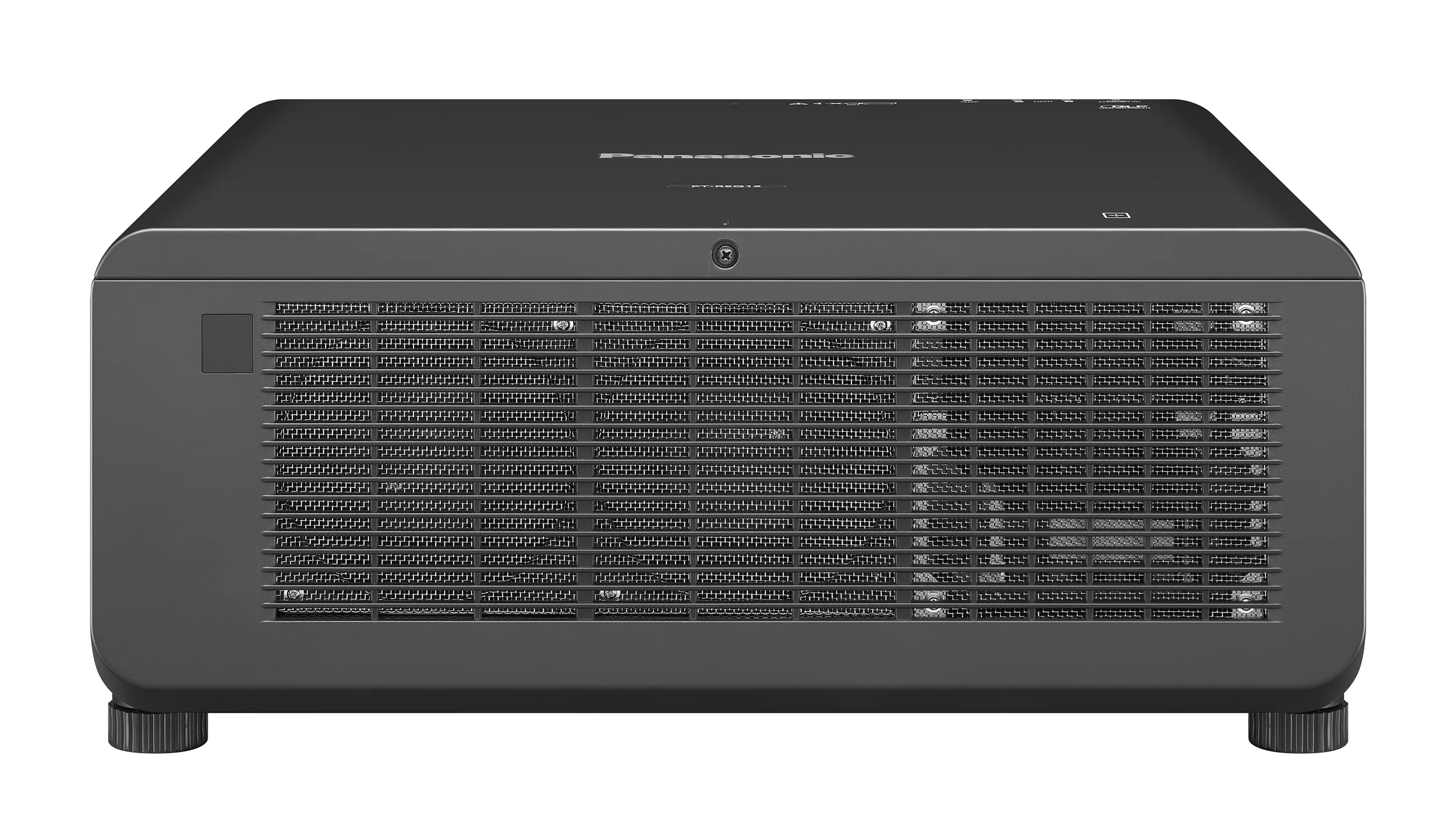

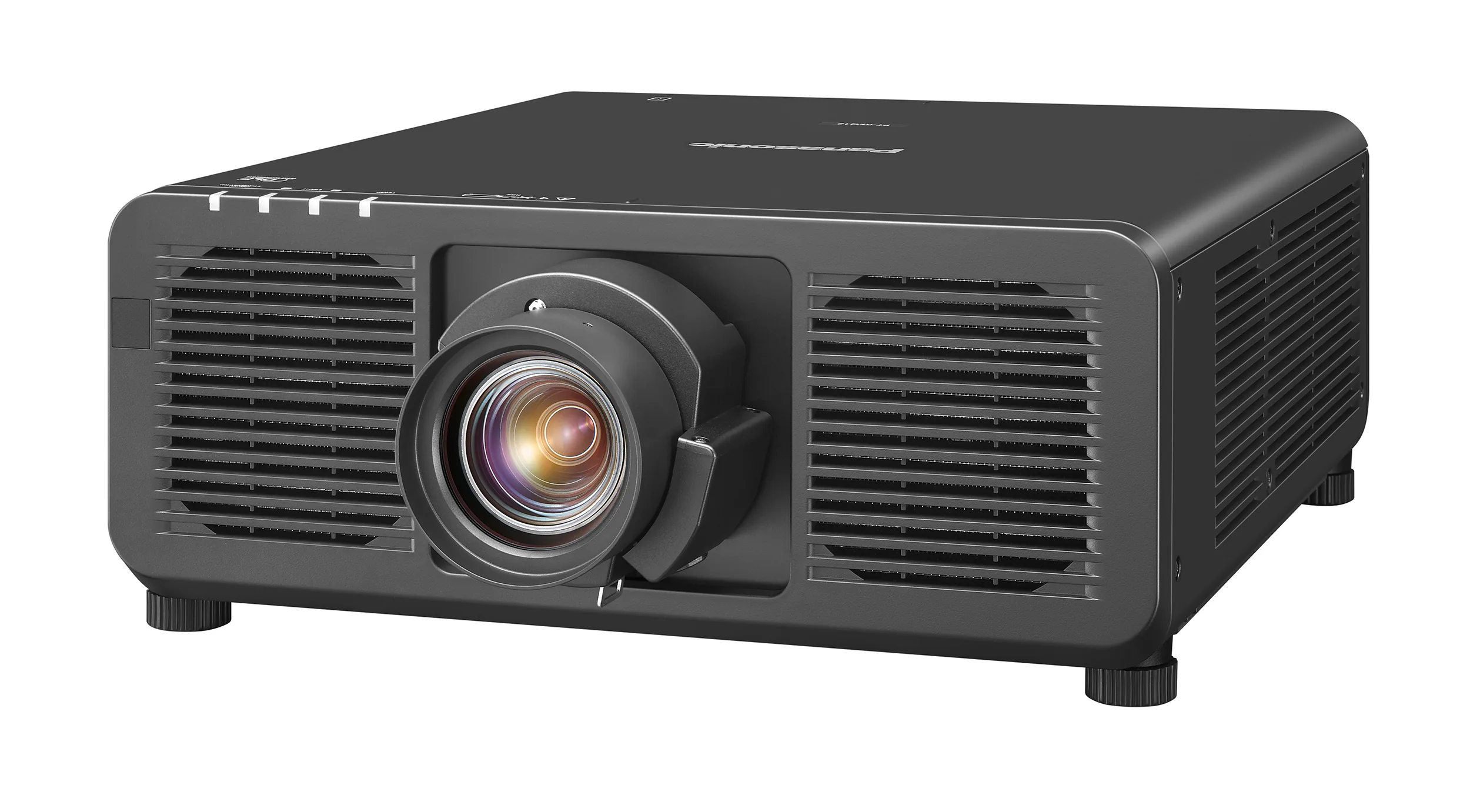

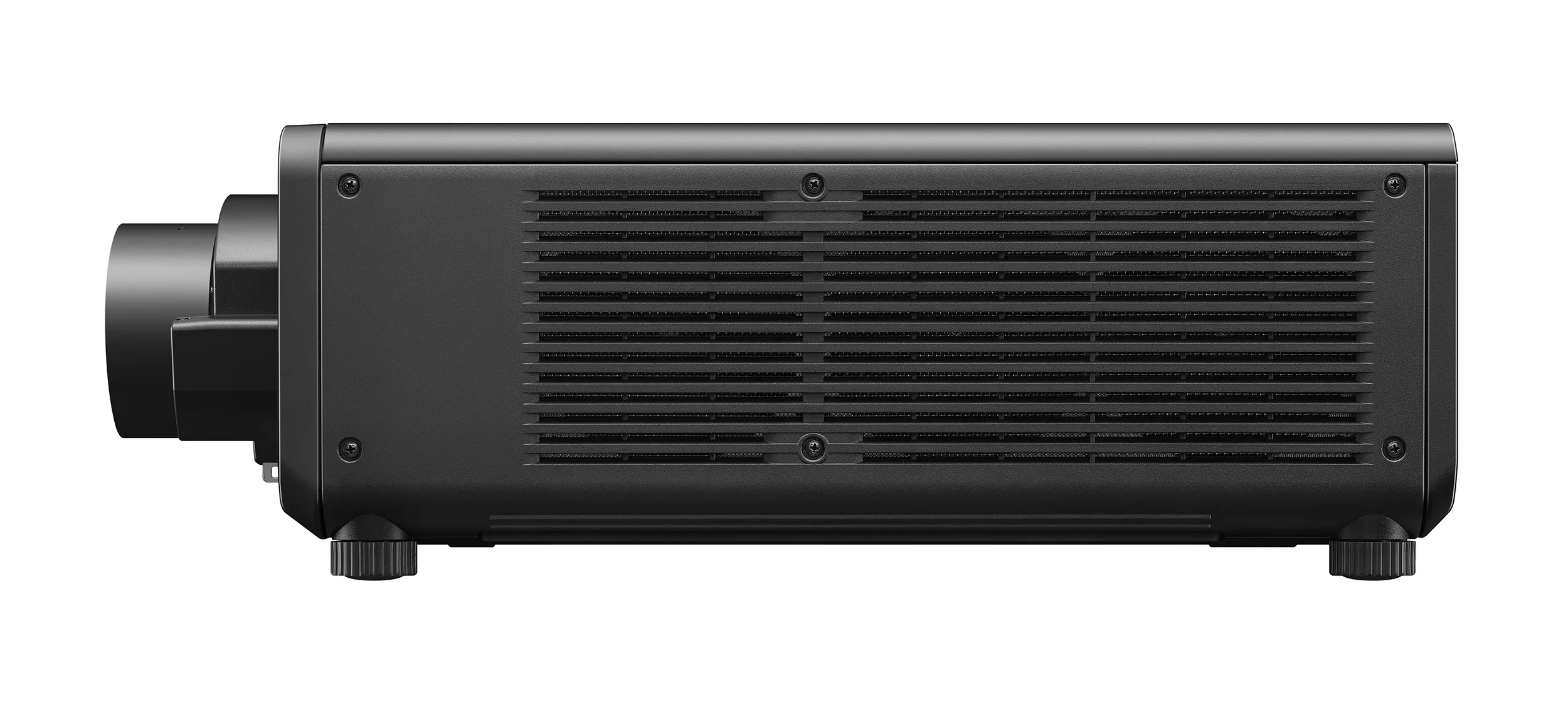

The Panasonic PT-REQ12 is a black laser projector supplied with a lens. It presents 4K (3840 x 2400) with Quad Pixel Drive. The specification separately lists a native 1920 x 1200 panel. Light output is stated as 12,000 lm (ANSI), with 12,400 lm (Center).
Projection setup
The supplied-lens specification includes powered zoom with a throw ratio of 1.36–2.10:1, together with powered focus. Screen size is listed as 70–1000 inches with ET-C1S600. The projector supports ceiling or floor placement, front or rear projection, and free 360-degree installation. Its body colour is Black.
Connections and control
HDMI™ x 2 and DisplayPort™ x 1 are listed with Deep Color, HDCP 2.3 compatibility, and 4K/60p signal input. The open slot accepts Intel® SDM standard-compatible function boards. NFC is supported. LAN control supports Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2).
Operating details
Time until light output declines to 50 % is specified as 20,000 hours [NORMAL], 24,000 hours [ECO], and 20,000 hours [QUIET]. The unit has no filter. It supports registering 3x user images in BMP/PNG format; start-up logos require logo transfer software. Dimensions are 498 x 212 x 648 mm (19 19/32˝ x 8 11/32˝ x 25 1/2˝), with feet at shortest position.
Warranty
The warranty is 3 years set warranty against manufacturing defects & 10,000 hrs whichever comes first for LASER projectors.
