Description
- WUXGA resolution of 1920 x 1200 pixels
- 6,200 lm light output
- Laser diode light source
- 1.2x manual zoom with powered focus
- Vertical and horizontal lens shift
- HDMI input with 4K/30p signal input
- DIGITAL LINK and LAN connection
Image and lens settings

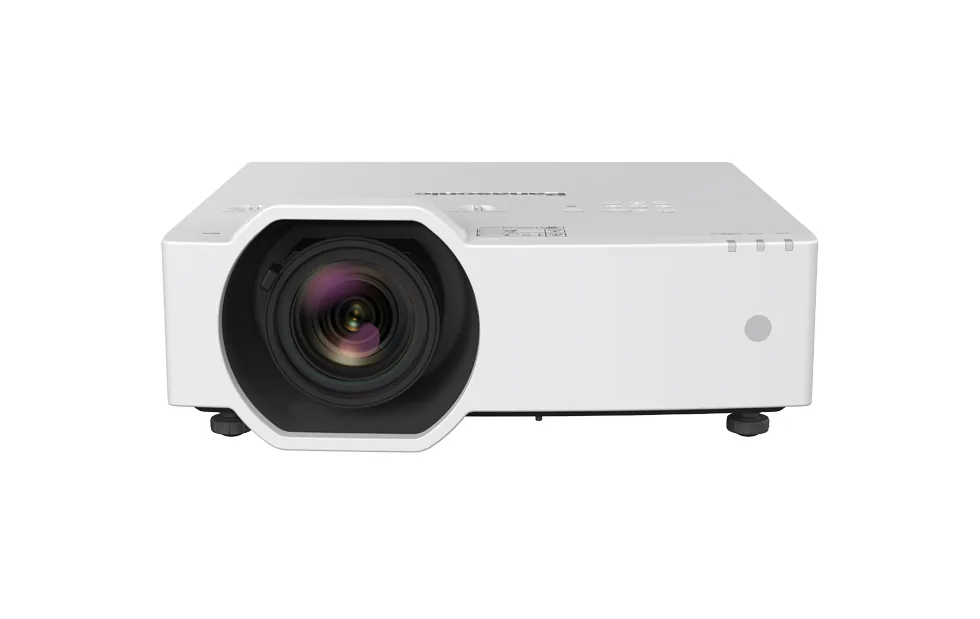

The Panasonic PT-VMZ6ST has WUXGA resolution at 1920 x 1200 pixels and 6,200 lm light output. Its laser diode light source is specified with 20,000 hours in NORMAL mode, 24,000 hours in ECO mode and 20,000 hours in QUIET mode until light output declines to 50 %.
The 1.2x manual zoom lens has a throw ratio of 0.797–1.01:1 and powered focus. The specified diagonal screen size is 1.77-7.62 m (70-300 in) at a 16:10 aspect ratio. Vertical lens shift is +50 %, horizontal lens shift is ±20 %, and keystone correction is vertical ±25° and horizontal ±35°.
Connections and control
Two HDMI™ 19-pin inputs support HDCP, Deep Color and 4K/30p signal input, with CEC support. The RJ-45 DIGITAL LINK IN / LAN connection supports video, network and serial control connections, and is HDBaseT™ compliant. Network control supports PJLink [Class 2].
The projector includes a 10 W monaural built-in speaker. It is white, measures approximately 414 x 120 x 424 mm without protruding parts, and has an approximate weight of 8.3 kg. A filter is listed as included.
Warranty
3 years set warranty against manufacturing defects & 10,000 hrs whichever comes first for LASER projectors.
