Description
- WUXGA (1920 x 1200 pixels) resolution.
- 12,000 lm light output and 12,400 lm (Center).
- Laser diode light source with 25,000:1 (typ.) (Full On/Full Off, Dynamic Contrast).
- Powered zoom and powered focus with the supplied lens.
- HDMI™ x 2 and DisplayPort™ x 1 with 4K/60p signal input, converted to WUXGA.
- Ceiling/floor, front/rear and free 360-degree installation.
Projection and lens

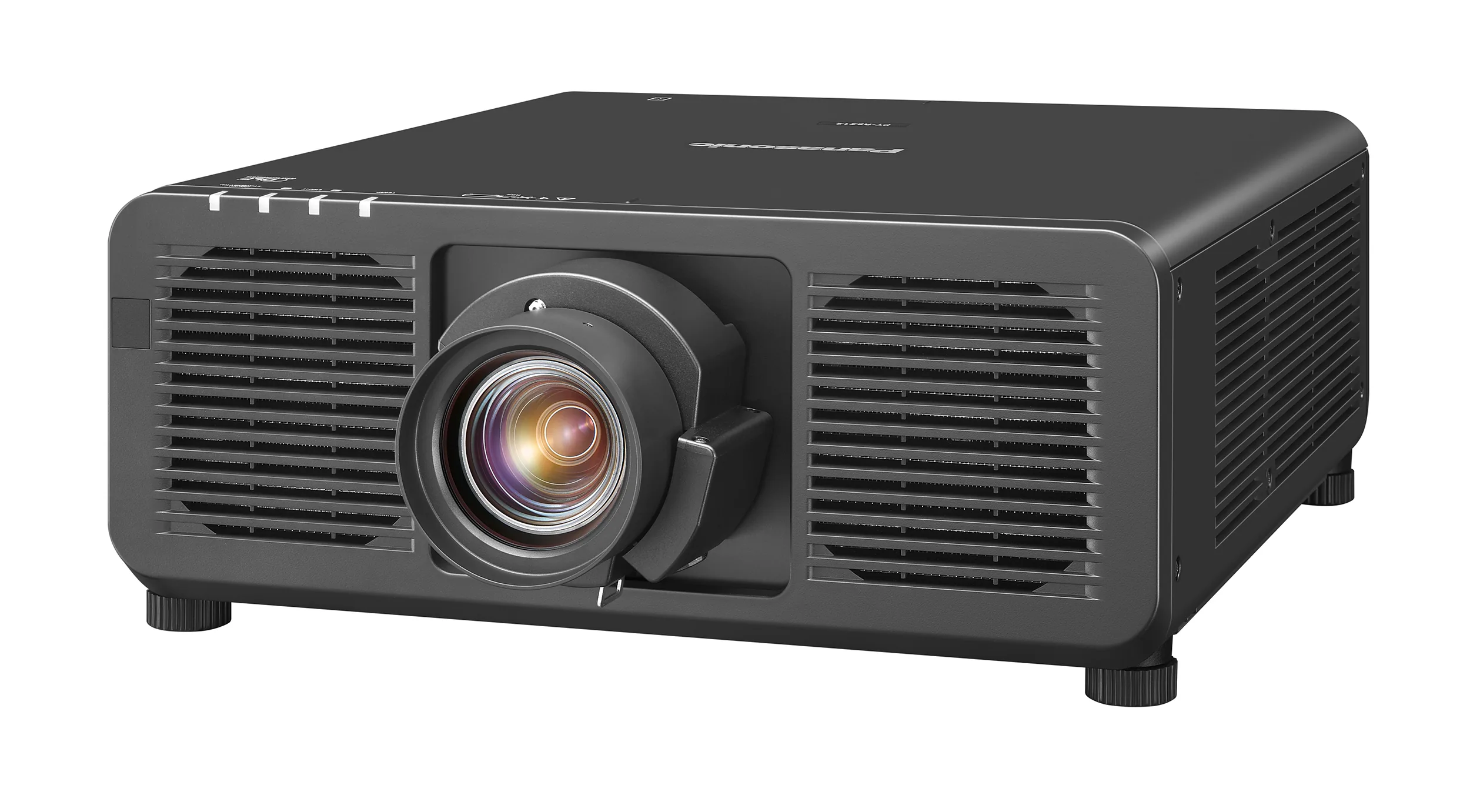

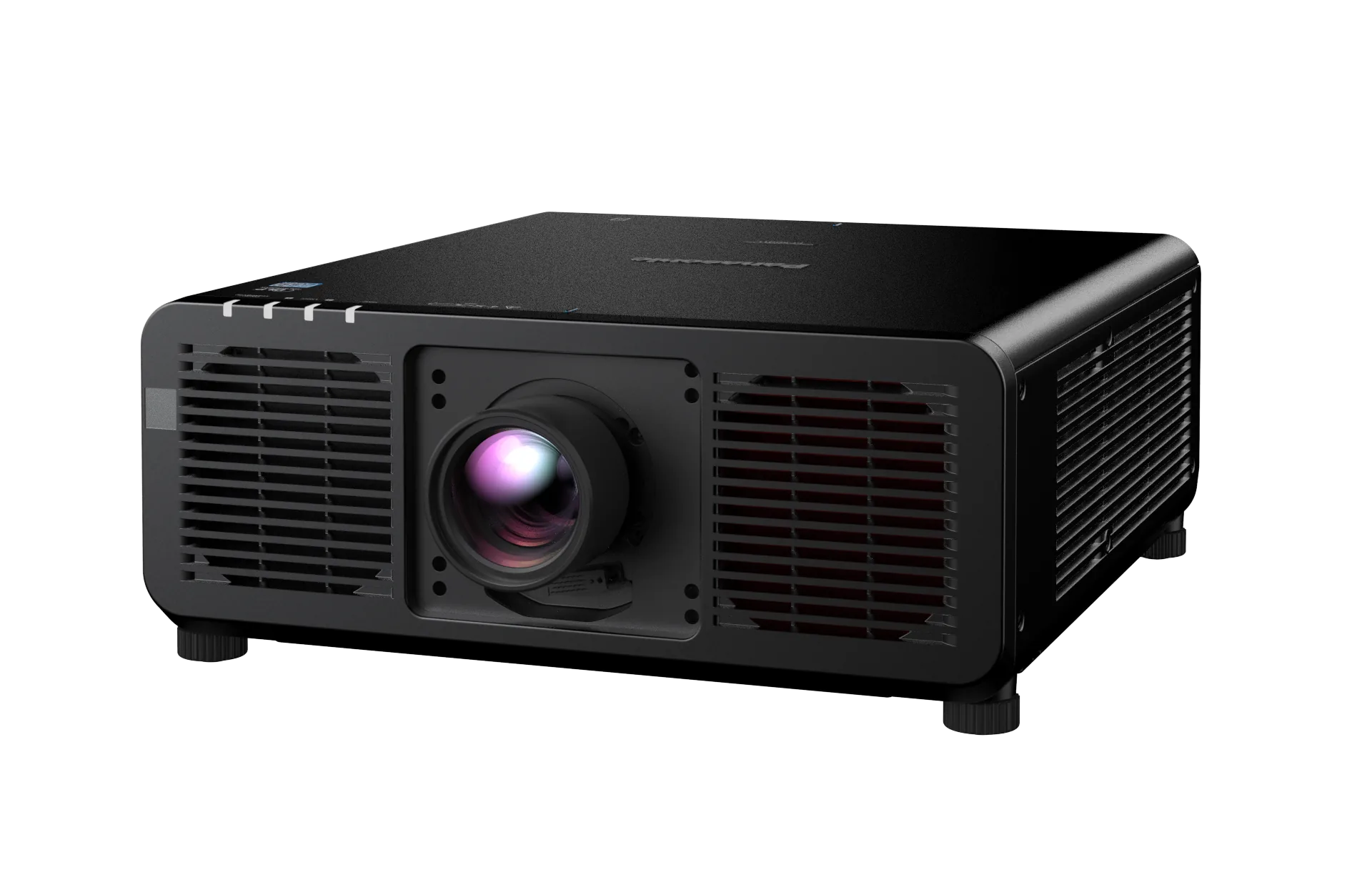

The Panasonic PT-REZ12 is a 1-Chip DLP™ projector with WUXGA (1920 x 1200 pixels) resolution and a laser diode light source. Its model-specific specification lists 12,000 lm light output and 12,400 lm (Center). The supplied lens provides powered zoom with a throw ratio of 1.36–2.10:1 and powered focus. Screen size is specified at 70–700 inches with the supplied lens.
Inputs and expansion
HDMI™ x 2 and DisplayPort™ x 1 support Deep Color, HDCP 2.3 and 4K/60p signal input. The projector converts 4K signals to WUXGA (1920 x 1200 pixels). An Intel® SDM-compatible open slot is provided for function boards.
Installation and physical details
Installation supports ceiling or floor placement, front or rear projection, and free 360-degree installation. Operation noise is specified at 38 dB [NORMAL], 38 dB [ECO] and 35 dB [QUIET]. The black body measures 498 x 212 x 648 mm with feet at the shortest position and weighs Approx. 28.7 kg with the supplied lens. Power supply is AC 100–240 V, 50/60 Hz. Maximum power consumption is 995 W (10.4–4.3 A) (1,005 VA); power consumption is 950 W at AC 200–240 V.
Warranty
3 years set warranty against manufacturing defects & 10,000 hrs whichever comes first for LASER projectors.
