Description
- WUXGA resolution: 1920 x 1200 pixels
- 8,000 lm light output
- 1-Chip DLP™ projector with laser diode light source
- Powered zoom and powered focus with supplied lens
- 70–700 inches diagonal screen size with supplied lens
- HDMI™ x 2 and DisplayPort™ x 1
- Ceiling, floor, front, rear and free 360-degree installation
Projection and lens arrangement

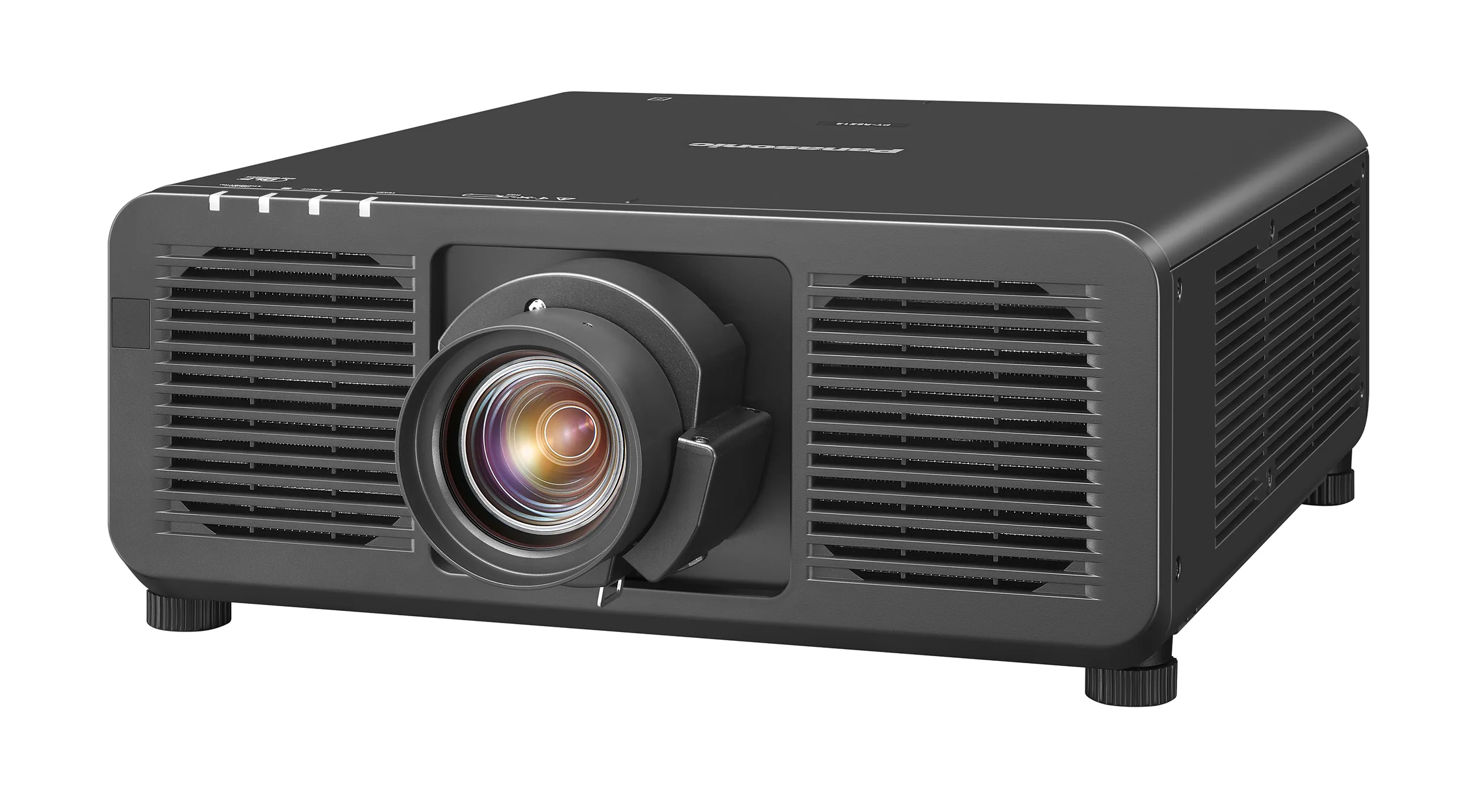

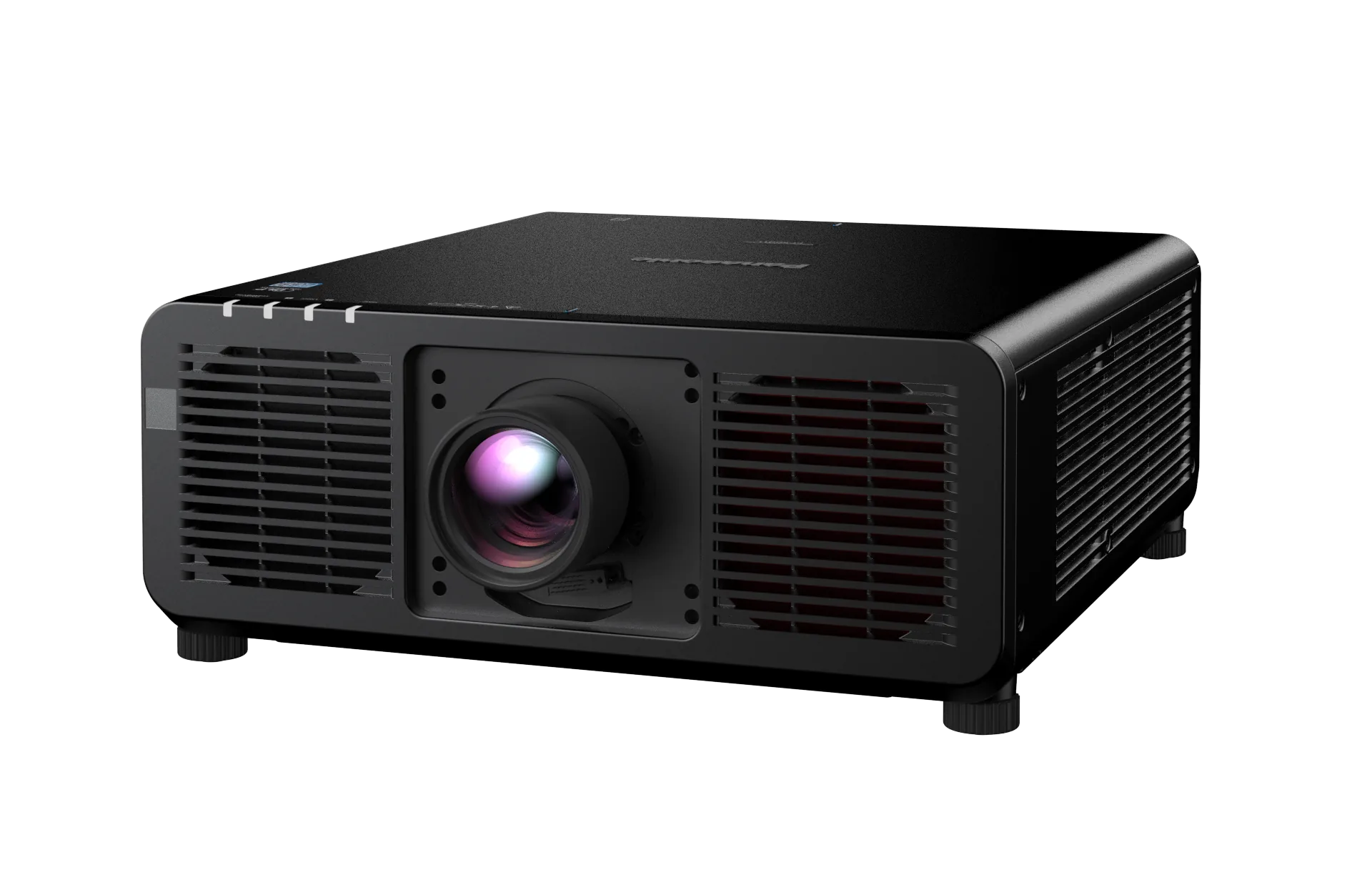

The Panasonic PT-REZ80 is a black 1-Chip DLP™ projector with WUXGA resolution of 1920 x 1200 pixels and 8,000 lm light output. Its laser diode light source is specified with 20,000 hours in NORMAL mode, 24,000 hours in ECO mode, and 20,000 hours in QUIET mode until light output declines to 50 %.
Supplied lens and screen range
A supplied lens equivalent to ET-C1S600 is included. The lens has powered zoom with a 1.36–2.10:1 throw ratio for supplied lens and powered focus. With the supplied lens, the specified diagonal screen size range is 70–700 inches.
Signal inputs and function-board slot
The projector has two HDMI™ inputs and one DisplayPort™ input. Both input types accept 4K/60p signals and are compatible with HDCP 2.3. 4K signals are converted to WUXGA resolution. An Intel® SDM-compatible open slot accepts optional function boards.
Installation and physical specification
The PT-REZ80 supports ceiling or floor placement, front or rear projection, and free 360-degree installation. It measures 498 x 212 x 648 mm with feet at their shortest position and weighs approximately 28.7 kg with the supplied lens. Power supply is AC 100–240 V, 50/60 Hz.
Warranty
The warranty is 3 years set warranty against manufacturing defects & 10,000 hrs whichever comes first for LASER projectors.
